3. PANEL FEATURES
3-1 FRONT PANEL
The IPP Series VoIP Gateway is a 19 inch modularized unit.
Each unit has 2 Ethernet ports, 1 console port, LED indicators, and, SMDR call recording port (for
comprehensive calling records).

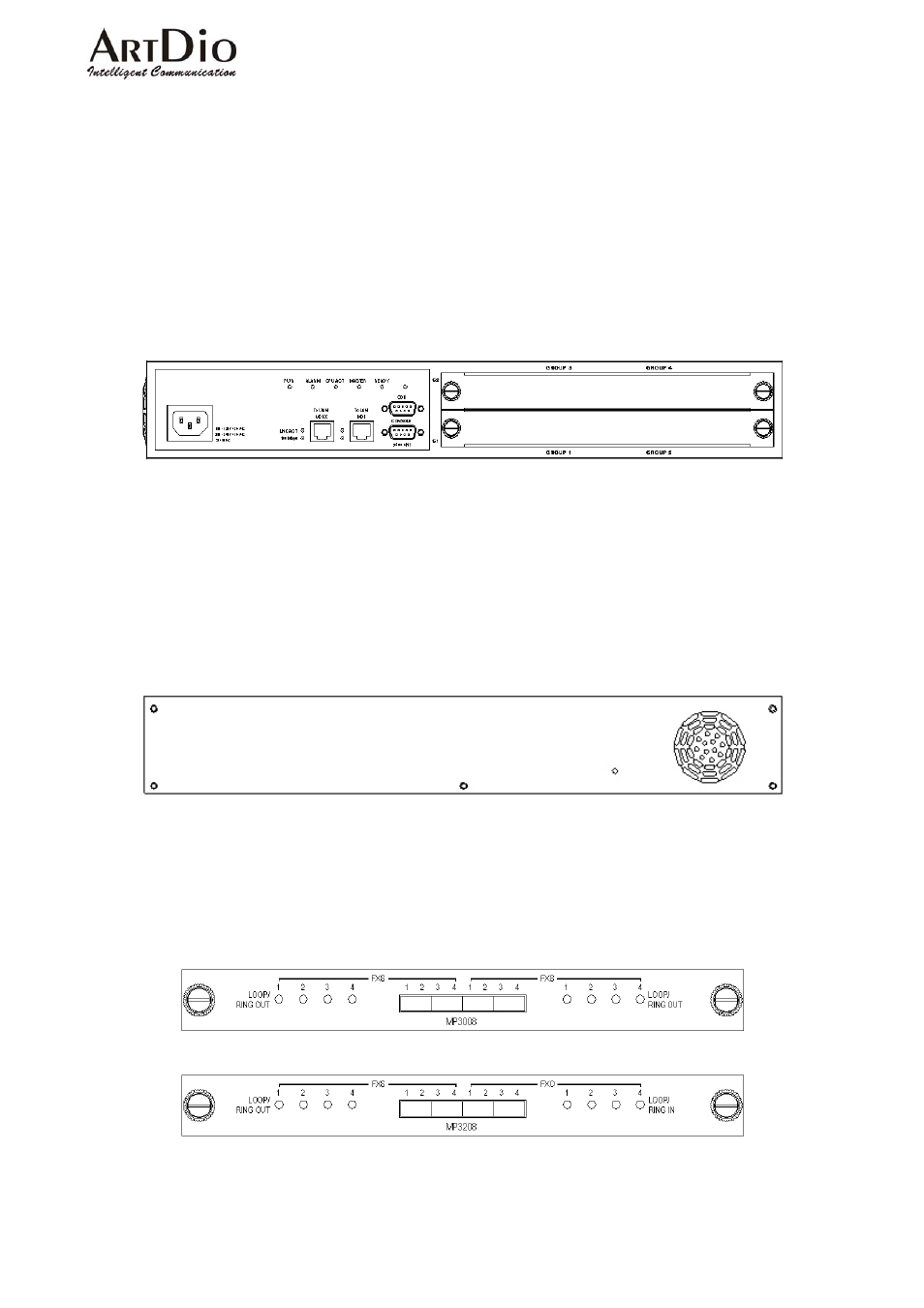

Front Panel- 4FXO + 12 FXS ports
3-2 REAR PANEL
The IPP Series rear panel consists of only a fan vent, and re-set button (for service technician
use only)
3-3 MODULES
The IPP incorporates two modules：4 FXO + 4 FXS、8 FXS.
The front panels for these modules are shown below.
4 FXO + 4 FXS
8 FXS
