Stacking Components

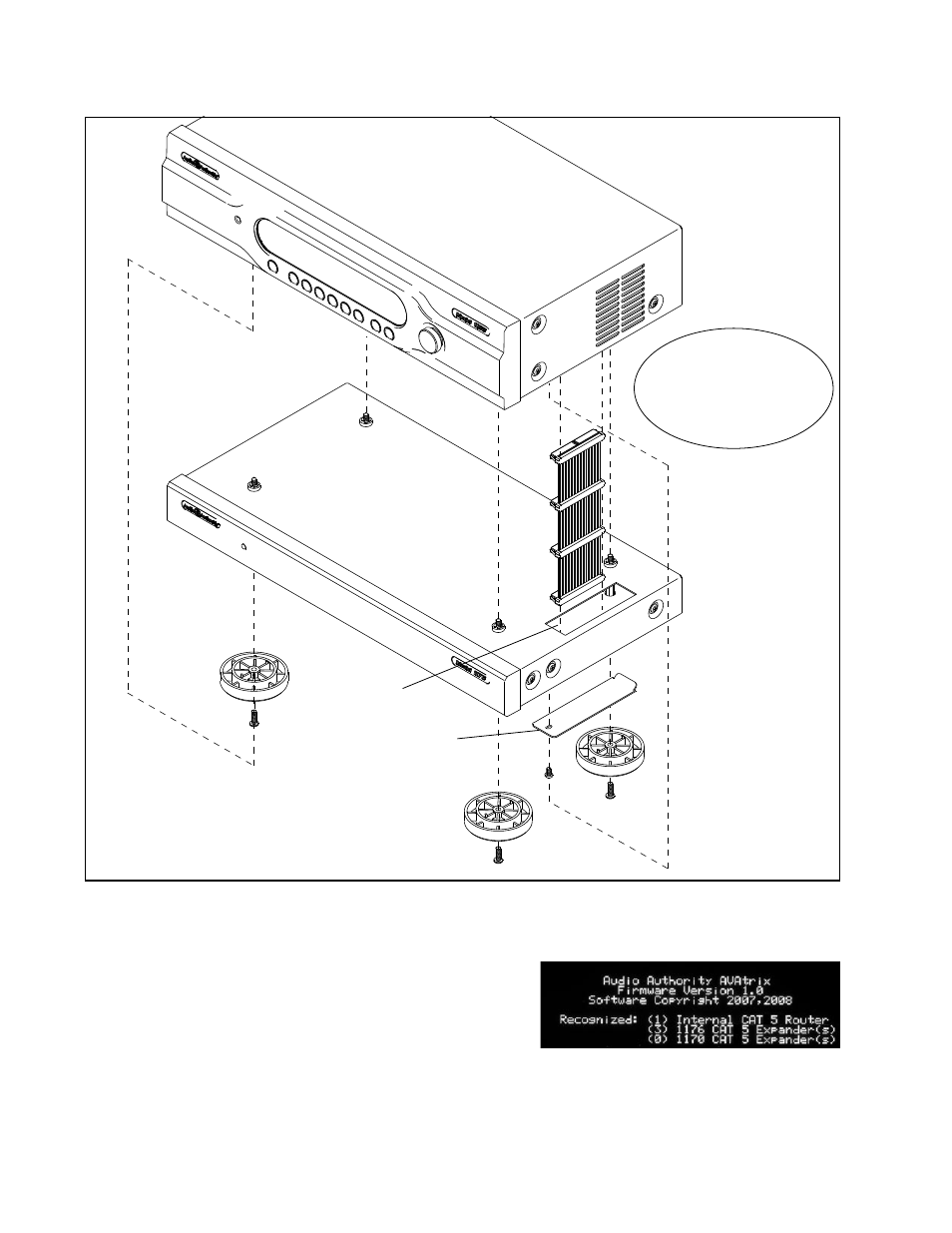

This diagram shows the parts and locations for
stacking components. The procedure must be
performed with the units upside down.
REMOVE BUS
ACCESS COVER AND
INSTALL ON LAST
EXPANDER
REMOVE FEET
AND INSTALL ON
LAST EXPANDER
BUS
CABLE
THREADED
STUDS
MODEL AVX-562
1172 or 1176
AVAtrix opening screen shows expanders recognized.
BUS ACCESS
COVER
BUS ACCESS
OPENING
The bus cable is
fragile! Do not crimp
or tug on the cable
as you install the
expanders.
opening screen on the Model AVX-562 display indi-
cates that the unit is powered and shows the number
of expanders that have been recognized. If this num-
ber is different from the number actually present, look
for the bus not being fully plugged into a unit or a unit
incorrectly addressed.
