SDM-AO4 Four Channel Analog Output

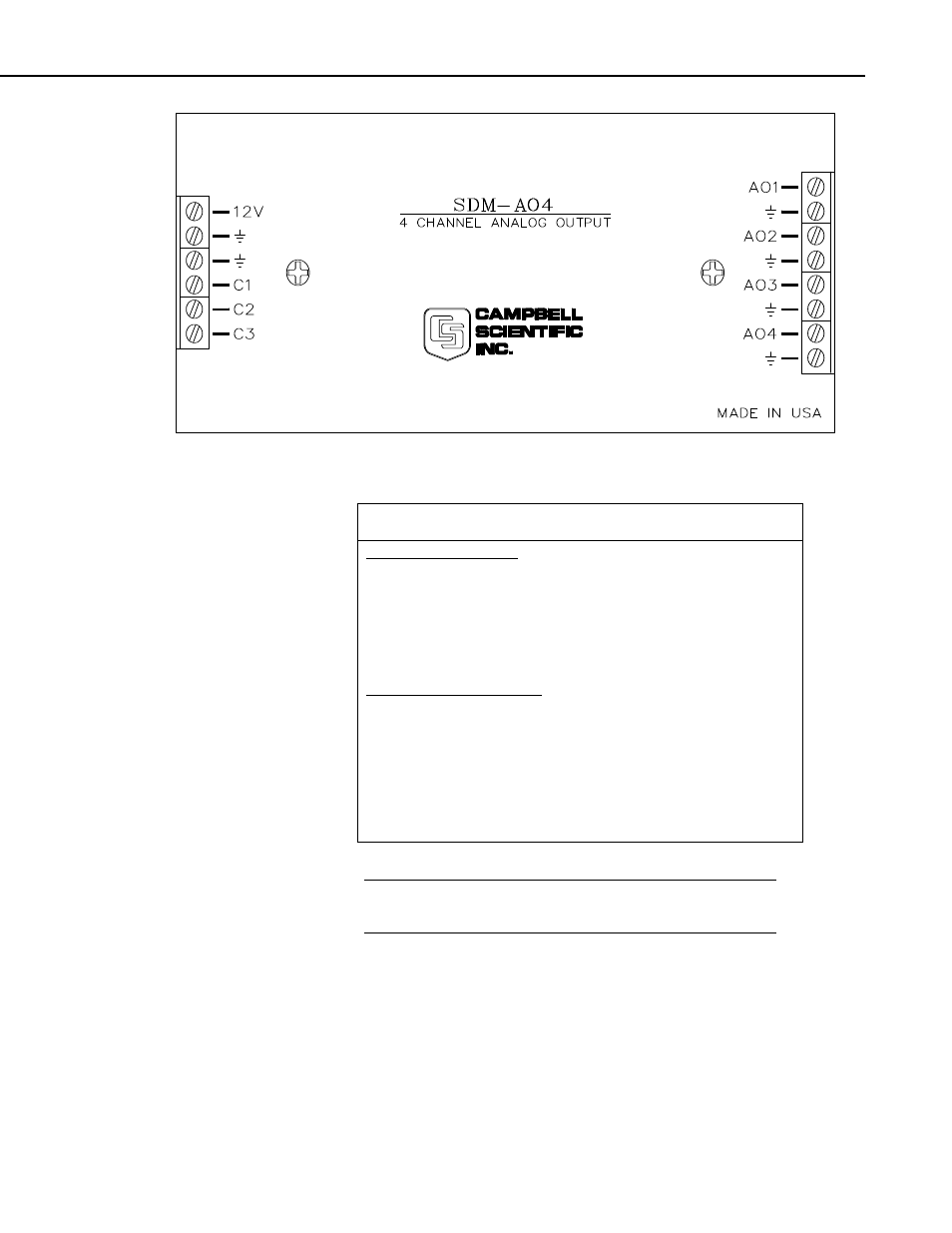

FIGURE 1. Front Panel of the SDM-AO4
TABLE 1. Description of Terminal Block Connections
Datalogger Connections
12V - 12 volt supply
- ground
- ground
SDM-C1 (CR3000, CR5000) or C1 - SDM control port #1
SDM-C2 (CR3000, CR5000) or C2 - SDM control port #2
SDM-C3 (CR3000, CR5000) or C3 - SDM control port #3
Analog Output Connections
AO1 - analog output #1
- ground
AO2 - analog output #2
- ground
AO3 - analog output #3
- ground
AO4 - analog output #4
- ground
The SDM-AO4 will not function correctly unless the case is
fully assembled and the case screws are fully tightened. CAUTION
5. Addressing
The SDM-AO4 is a synchronously addressed datalogger peripheral. Control
Ports 1, 2, and 3, are used to address an SDM-AO4 and send out the digital
millivolt readings for subsequent analog output. Addressing allows multiple
SDM peripherals to be connected to one datalogger.
3
