GPS16X-HVS GPS Receiver
TABLE 3-1. Datalogger Wiring
GPS16X-HVS Datalogger Function
Red 12V Power In
Black Ground Power Ground
Yellow Ground or Control Port
for On/Off control
Power Switch
White Control Port (Rx) TXD
Gray Control Port (Tx) PPS
Blue Ground or Control Port
(Tx) for datalogger-based
configuration
R
x
data
Shield Ground Shield

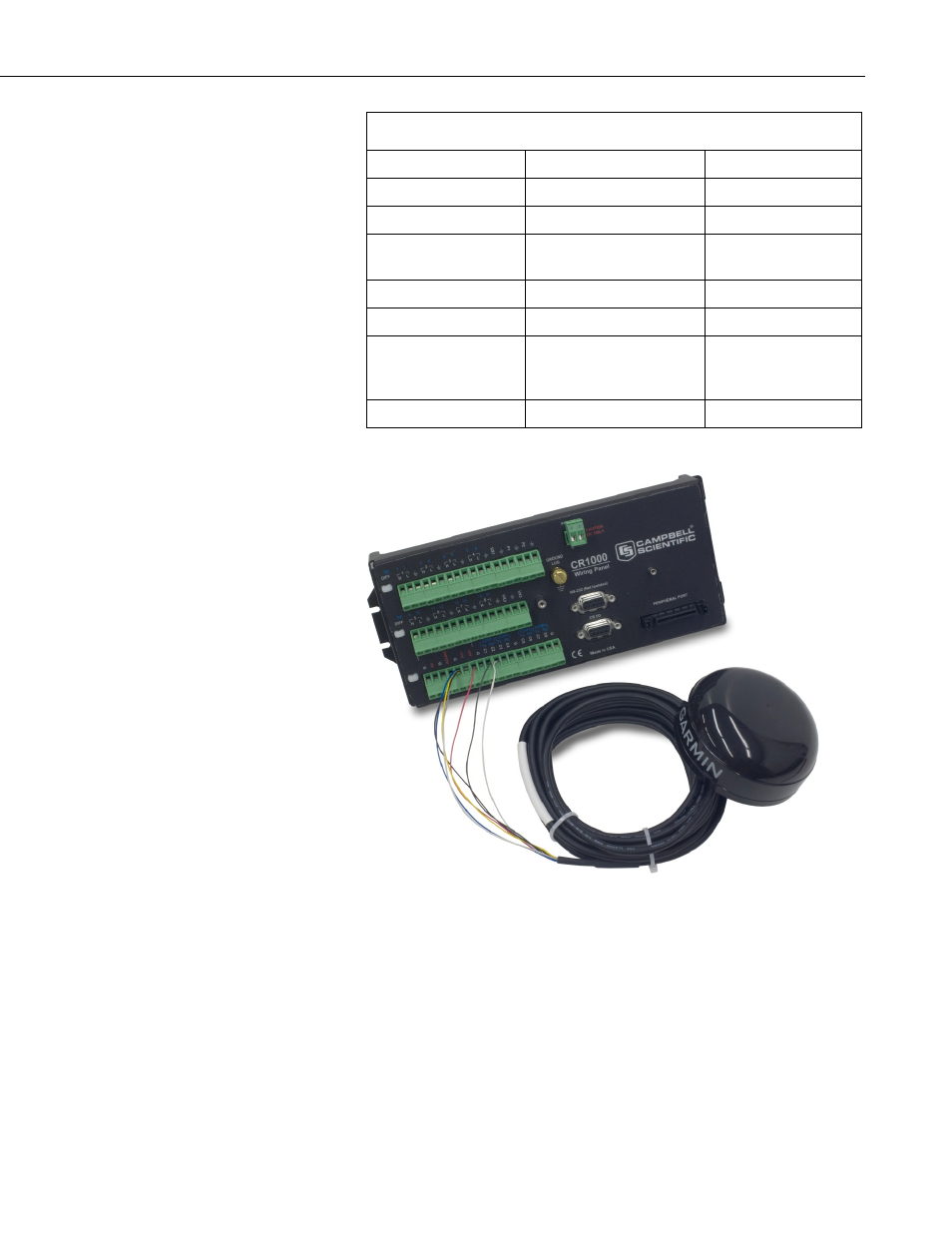

FIGURE 3-1. CR1000 to GPS16X-HVS connection
