Campbell Scientific 0871LH1 Freezing Rain Sensor User Manual
Page 11
8

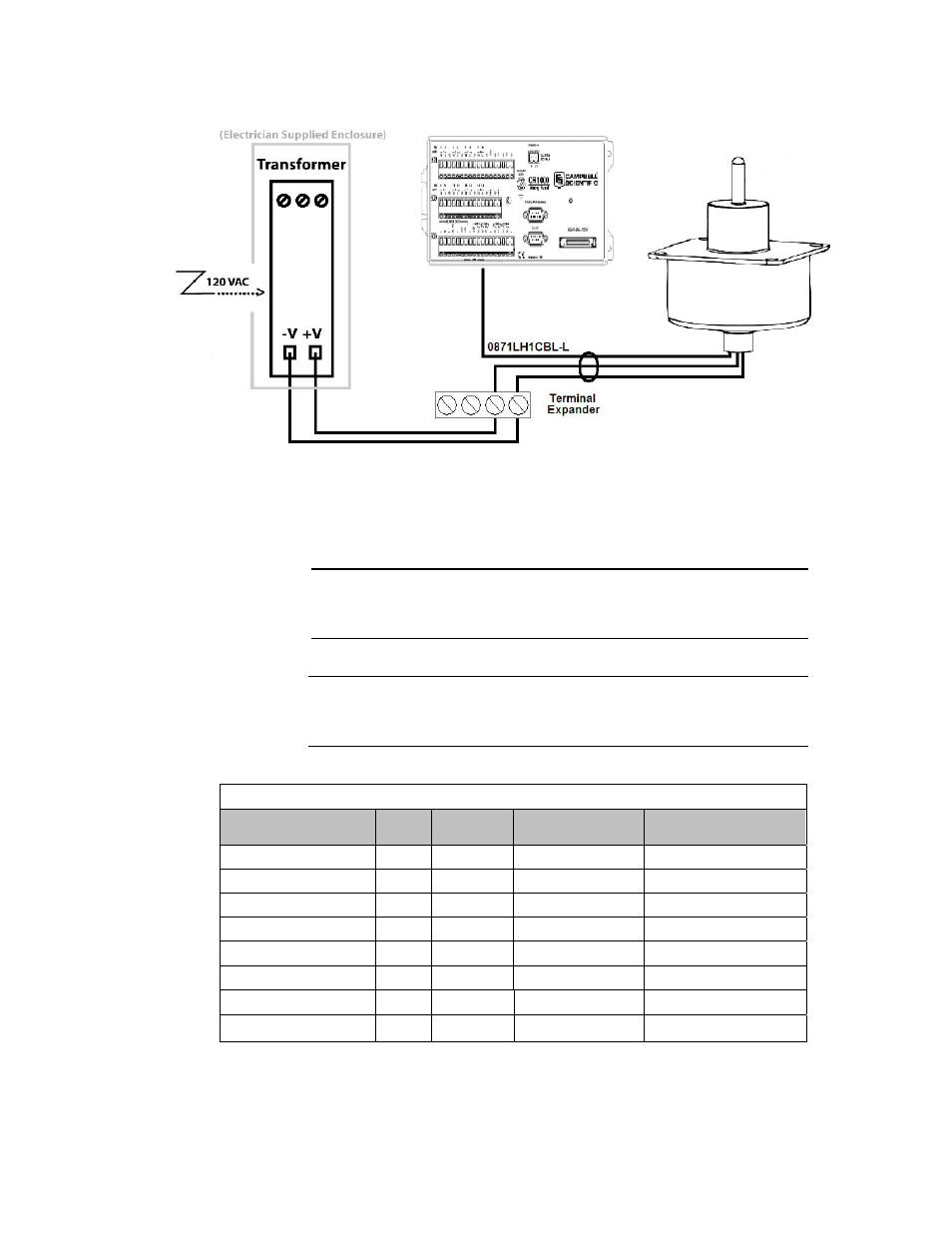

Figure 5 General Hook-up Diagram
9
9.2
0871LH1CBL-L Wiring for RS422 Output
The MD485 Multidrop Interface, the L15966 Wall Charger and the SC110
Interface Cable are required to measure the RS422 output on a CR1000 or
CR3000.
The MD485 Multidrop Interface must be configured for Active Ports |
RS232 and RS485, RS232 Baud Rate | 9600, and RS485 Baud Rate | 9600.
Refer to the MD485 Manual for configuration instructions.
Table 4. Datalogger Connections
Description
Pin
Colour
Sensor – MD485
Sensor –
CR1000/CR3000
Ice F
Blue
N/C
N/C
Status G
Yellow
N/C
N/C
RS422 A
D
White
RS485 A
N/C
RS422 B
E
Brown
RS485 B
N/C
Power Reference
B
Black
N/C
G
Case GND
C
Green
N/C
G
5V Power
Purple
N/C
G
Shield
Clear
N/C
G
NOTE:
NOTE:
