Campbell Scientific 020C Wind Direction Sensor User Manual
Page 8
Model 020C Wind Direction Sensor
1. Remove the orientation screw from the base of the sensor column. Place
the sensor column in the bushing such that the hole in the bushing aligns
with the hole just vacated by the orientation screw. Replace the screw and
tighten until snug. Do not over-tighten.
2. Place the sensor and bushing in the right-angle mounting bracket or
Nurail
®
fitting.
3. Rotate the sensor and bushing such that the vane and orientation screw
point true south, ensuring that the notches on the sensor hub and column
align.
4. Tighten the u-bolt (CM220) or set screws (pn 1049).
5. Attach the sensor cable to the six-pin male connector on the 020C.

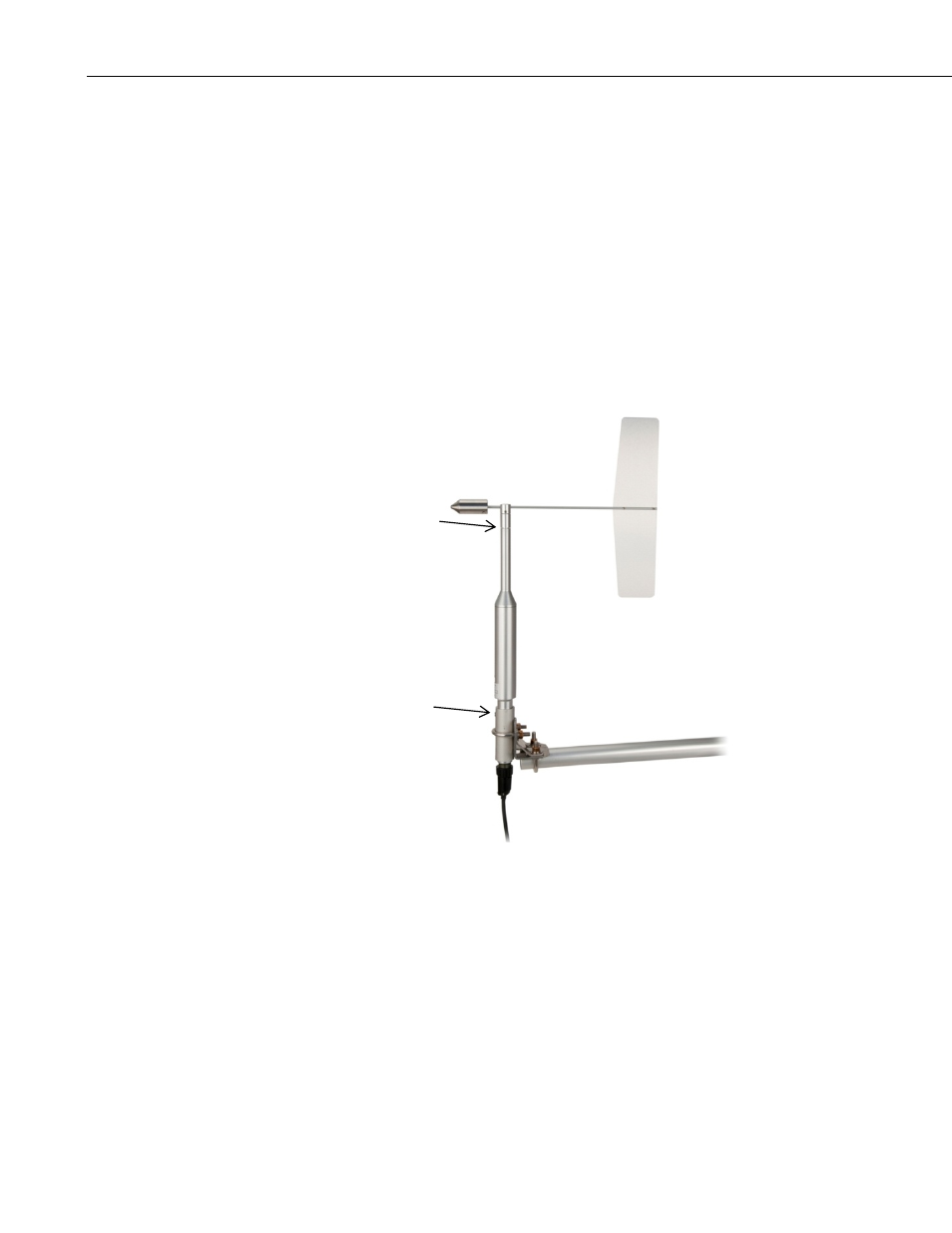

Alignment notches
Alignment screw
FIGURE 4-1. Installation of 020C Wind Vane
2
