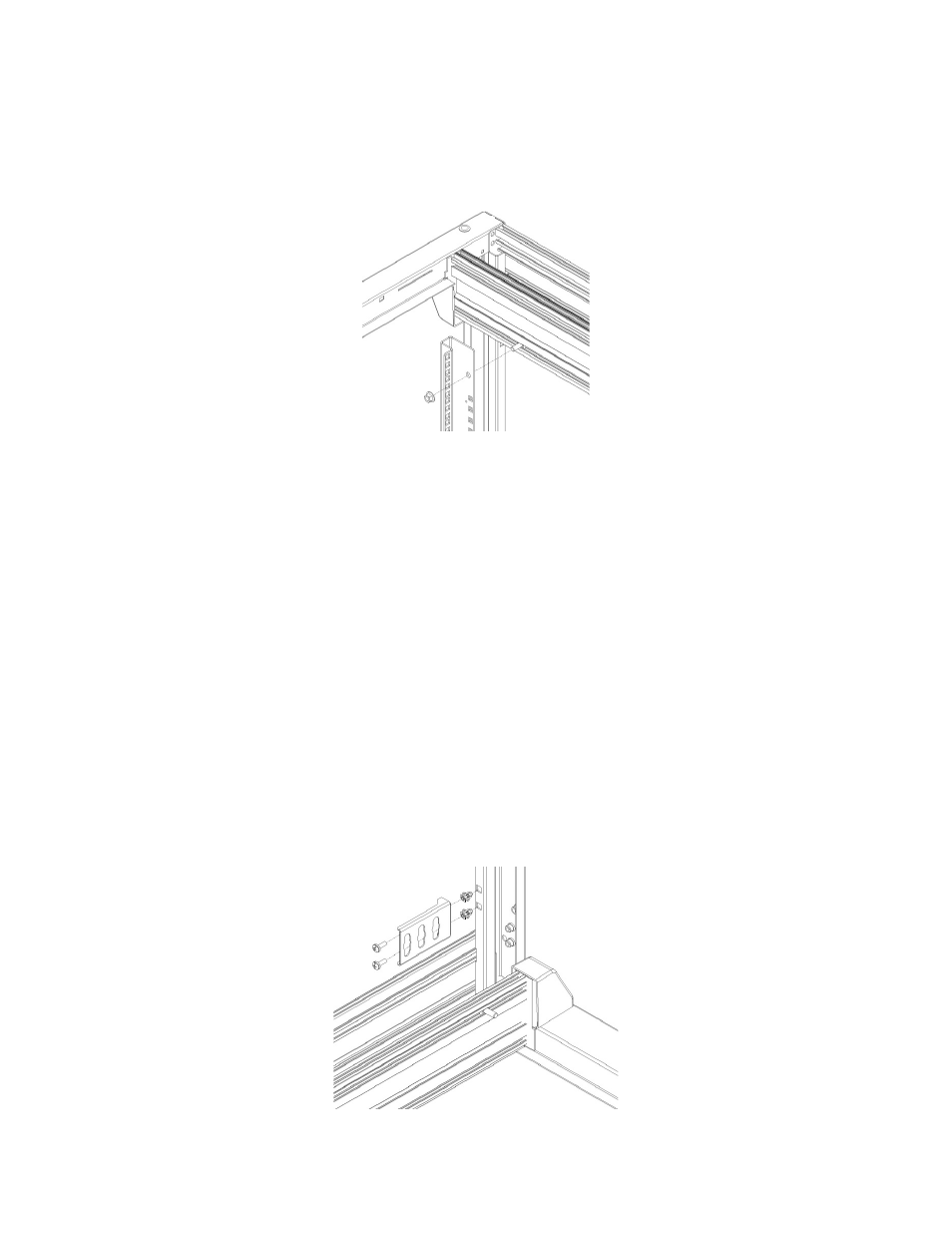

Adjusting
the
Equipment
Rails
1. Use
a
13
mm
socket
wrench
to
loosen
(but
do
not
remove)
the
nuts
securing
the
equipment
rail
to
the
frame
in
two
(2)
locations.
2. Move
the
equipment
rail
forward
or
backward
to
the
desired
location.
3. Tighten
the
nuts
in
two
(2)
locations
on
cabinet.
Markings
are
provided
on
the
frame
to
help
align
the
equipment
rails
so
that
they
are
vertical
as
well
as
in
the
same
location
as
the
rails
on
the
opposite
side
of
the
frame.
Installing
the
Standard
PDU
Brackets
1. Choose
the
desired
corner
of
the
cabinet
to
install
the
PDU
Brackets
and
install
cage
nuts
in
square
holes.
2. Position
PDU
bracket
against
vertical
frame
member
and
install
2
screws
through
holes
into
cage
nuts.
Torque
screws
to
168
in-­‐lb
(19
Nm)
using
a
Phillips
screw
driver.
3. Repeat
for
second
PDU
Bracket.
