6 | SAMLEX AMERICA INC.

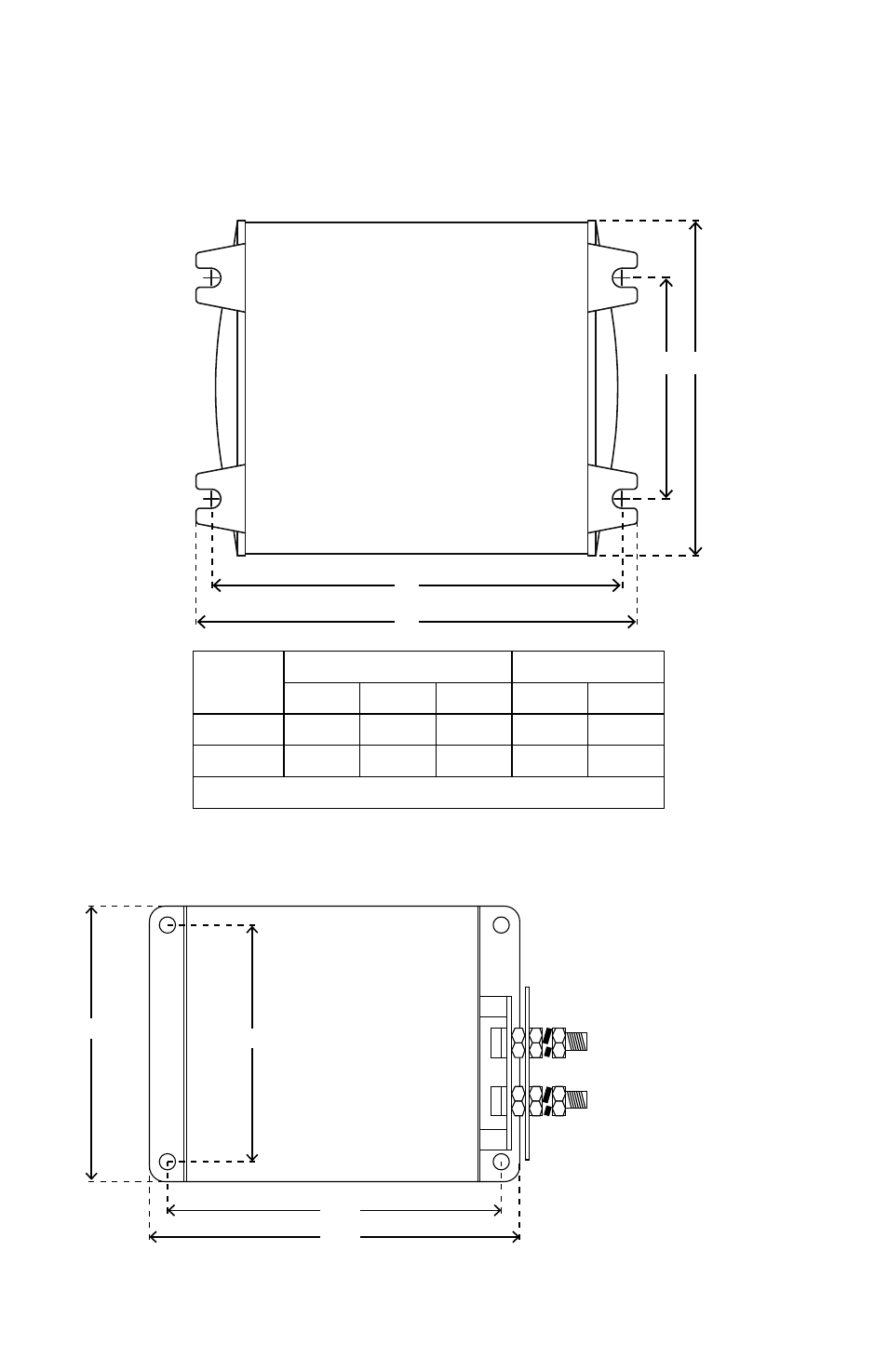

oVeraLL anD mountinG DimenSionS
please refer to fig 3 for Step 7 and Step 10 and fig. 4 for Step 20
SeCtIOn 3 | layout, Connections & Dimensions
W
L1
L
W1
93
115
152
81
moDeL
oVeraLL mountinG
L W H L1 W1
STEP 7 98 88 49 92 58
STEP 10 126 88 49 120 58
Mounting Hole Diameter = 5 mm
Fig. 3: Overall & Mounting Dimensions STEP 7 and STEP 10.
overall (Including
protrusions):
152 x 93 x 91 mm
Mounting (between
Mounting Holes):
115 x 81 mm
Diameter of
Mounting Hole:
4.5 mm
Fig. 4: Overall & Mounting Dimensions STEP 20.
