4 | SAMLEX AMERICA INC. SAMLEX AMERICA INC. | 5
SeCtIOn 3 | layout, Connections & Dimensions
LeGeND:
*1. Input terminal: +12V
*2. Input terminal: -12V Common (-) Ground
*3. output terminal: -24V Common (-) Ground
*4. output terminal: +24V
5. System/earth Ground
6. Ventilation Slots
froNt VIeW
* Note:
1. Input / output terminal = M6 bolt & Nut
2. Use M6 ring terminal shown on the left for connect-
ing wires (Not Supplied).
LeGeND:
*1. Input terminal: +12V
*2. Input / output terminal: Common (-) for 12V Input / 24V output
*3. output terminal: +24V
4. Ventilation Slots
5. System earth Ground

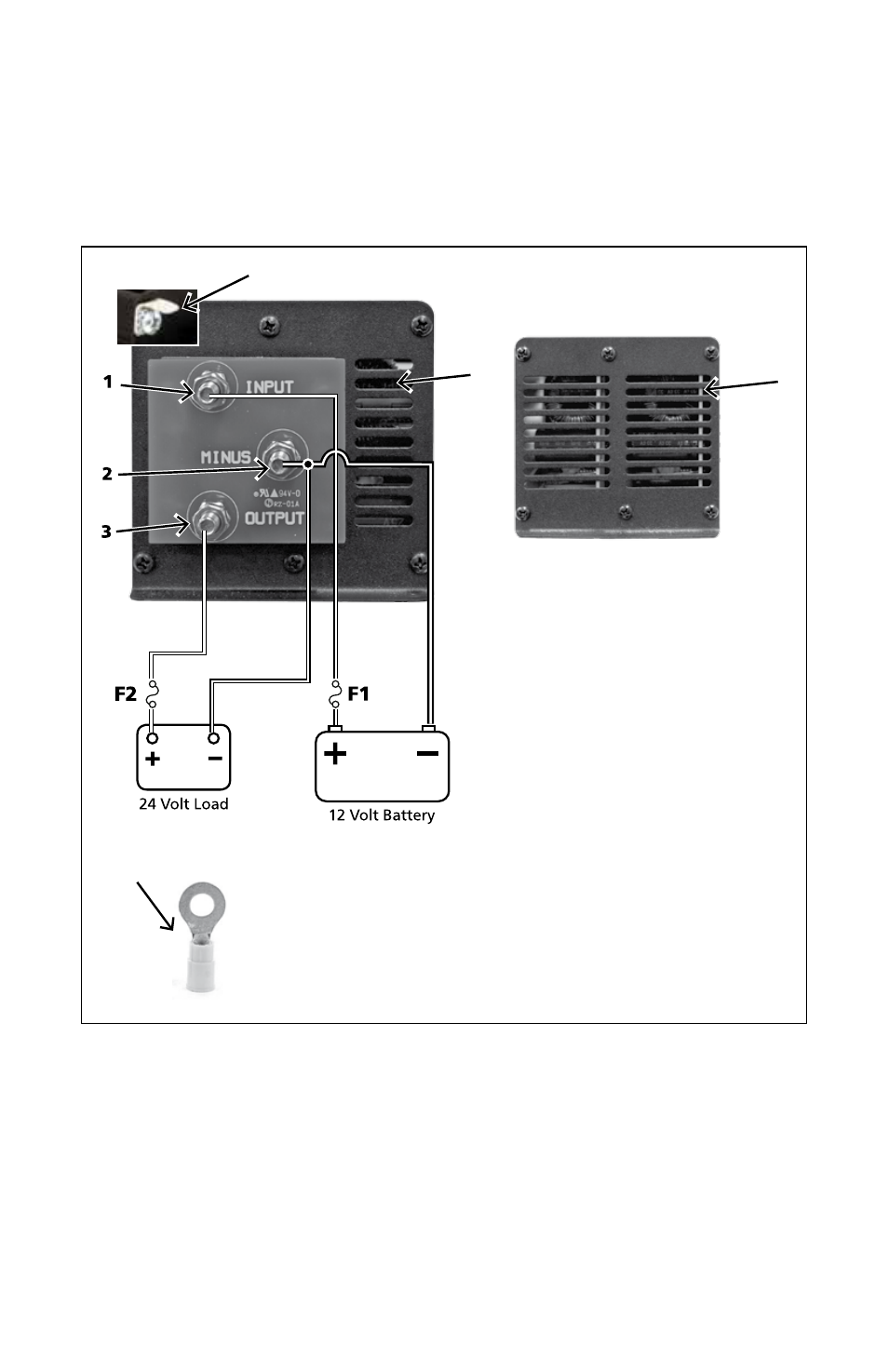

Fig. 2: Layout & Input / Output Connections - STEP 20
bACK VIeW
4
4
M6 ring terminal
for Wiring
5
f1: input fuse (not Supplied)
32V, 70A (2 x 35A)
f2: output fuse (not Supplied)
32V, 20A
