12
NOTE: Only one of control mode can be presented. When operating.
3-2-2. DC Input Terminals：
Connect to 12V / 24V / 48V battery or the other power sources.
【＋】is positive,【－】is negative. Reverse polarity connection
will blow internal fuse and may damage inverter permanently.
Model
DC Input Voltage
Minimum Maximum
12 V 10.5 15.0
24 V 21.0 30.0
48 V 42.0 60.0
3-2-3. Chassis Ground: using # 8 AWG wire to connect vehicle chassis.

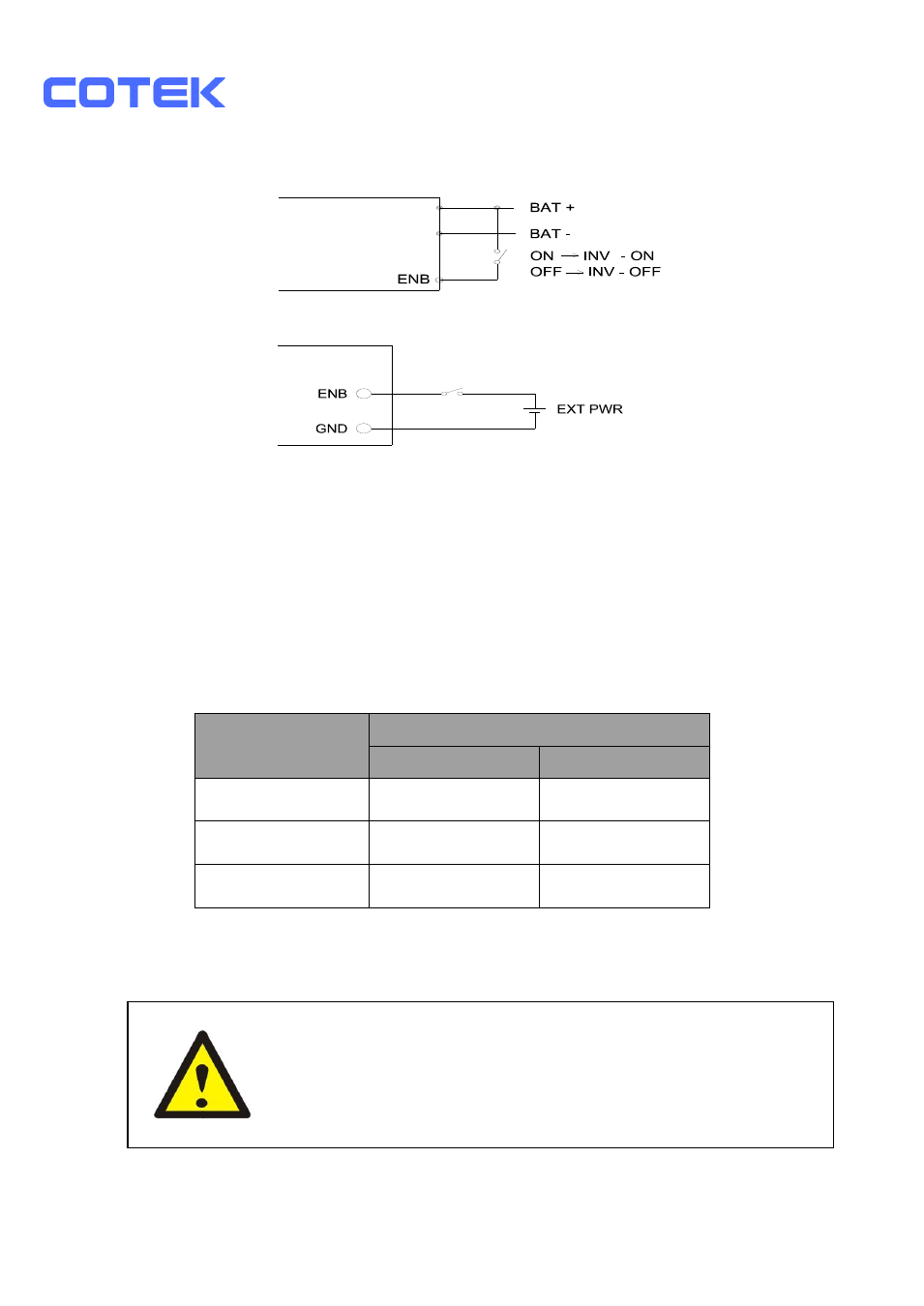

MODE Ⅲ
MODE Ⅳ
WARNING!
Operation of the inverter without a proper ground
connection may result in an electrical safety hazard.
