11

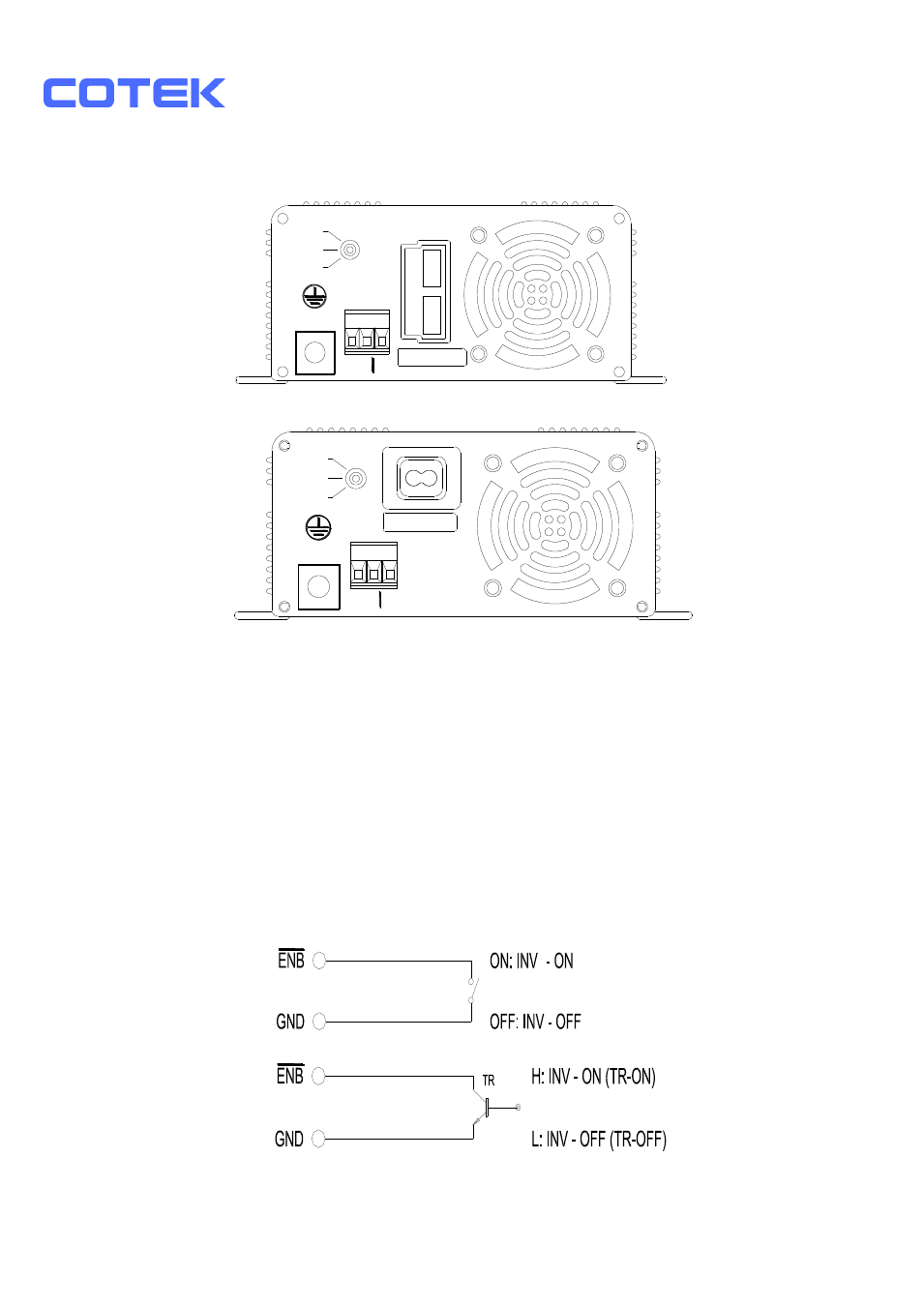

3-2. Rear Panel Operation：
REMOTE PORT
G
N
D
ENB ENB
DC INPUT POWER
REMO.
OFF
ON
N
E
G
(
-)
CHASSIS
GROUND
P
O
S
(+
)
REMOTE PORT
OFF
ON
POWER
GND ENB ENB
DC INPUT
REMO.
CHASSIS
GROUND
3-2-1. ON / OFF / REMOTE Main Switch.
3-2-1-1. Before installing the inverter, make sure the main switch must
be
“OFF”.
3-2-1-2. Before using the remote unit, make sure the main switch must
be “ REMOTE”.
3-2-1-3. Ensure the remote control contact is off.
3-2-1-4. Remote Port：Place 0.75mm 2 and Screw type cable between
the remote port and the panel.
3-2-1-5. Remote port ON/OFF inverter setup status
VCEO > VBAT
MODE Ⅱ
MODE Ⅰ
