2

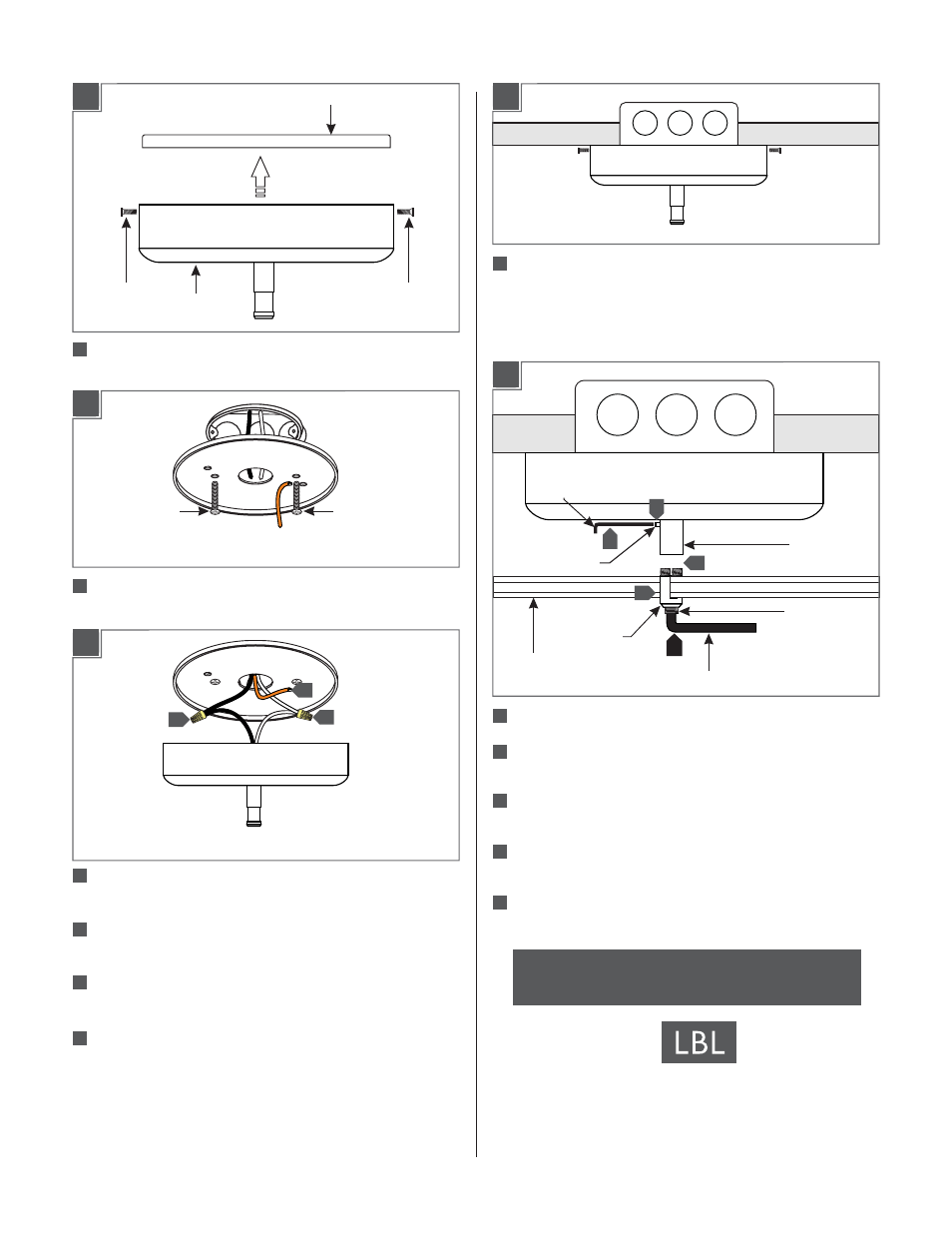

Separate the mounting plate from the transformer by
removing the two screws.
#8-32 SCREW #8-32 SCREW
SCREW SCREW
CANOPY
MOUNTING PLATE
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
5 4
Reattach the transformer to the mounting plate by
securing it with the two screws.
Connect the Transformer to the MonoRail
SECTION OF
MONORAIL
RAIL BUSHING
BUSHING BASE
1/16 ALLEN
WRENCH
3/16 ALLEN WRENCH
3/8-24
SET SCREW
#6-32 SET SCREW 1
2
3
4
5
Install the Transformer
Connect the mounting plate ground wire to a suitable
ground in accordance with local electrical codes.
Connect the white transformer wire to the neutral
power line wire with a wire nut.
Connect the black transformer wire to the hot power
line wire with a wire nut.
Place all wires and wire nut connections inside the
electrical box.
3
Unscrew the rail bushing from the bushing base.
Loosen the #6-32 set screw on the bushing base with
the 1/16 Allen wrench.
Place the MonoRail into the rail bushing. Screw the
bushing base to the rail bushing tight.
Tighten the #6-32 set screw on the bushing base with
the 1/16 Allen wrench.
Tighten the 3/8-24 set screw on the bottom of the rail
bushing with the 3/16 Allen wrench.
NOTE : Minor adjustments to the standoff’s height
may be needed to level the MonoRail.
1A
1
1B
1C
1D
2A
2
3
4
5
6
7
1
2
3
4
5
