LBL Lighting MO Direct Feed Surf Mag Xfmr 150w 120v/12v - Manual (Page 2)

2

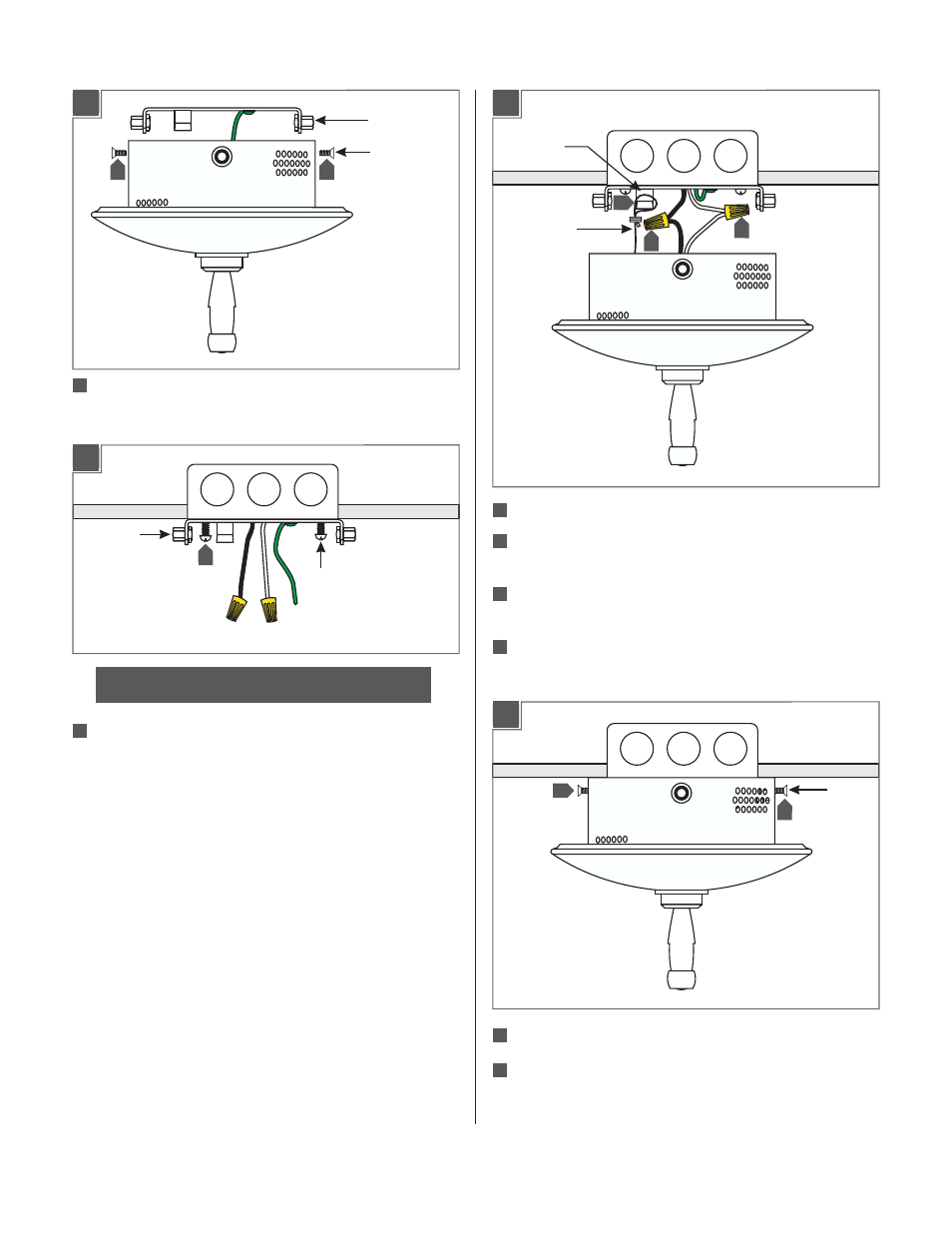

Install the Transformer
CROSSBAR
#8-32 FLAT
HEAD SCREW
Remove the two #8-32 flat head screws to remove the
crossbar.
#8-32
SCREW
CROSSBAR
Mount the crossbar to the electrical box with the provided
two #8-32 screws.
CAUTION: Turn the power to electrical box off!
SAFETY WIRE
CROSSBAR
BRACKET
Hook the transformer safety wire onto the crossbar bracket.
Connect the crossbar green wire to the ground in accordance
with local electrical codes.
Connect the transformer white wire to the neutral power line
wire with a wire nut.
Connect the transformer black wire to the hot power line
wire with a wire nut.
Slide the transformer onto the crossbar.
Align the transformer holes with the crossbar holes; replace
and tighten the two #8-32 flat head screws.
#8-32
SCREW
