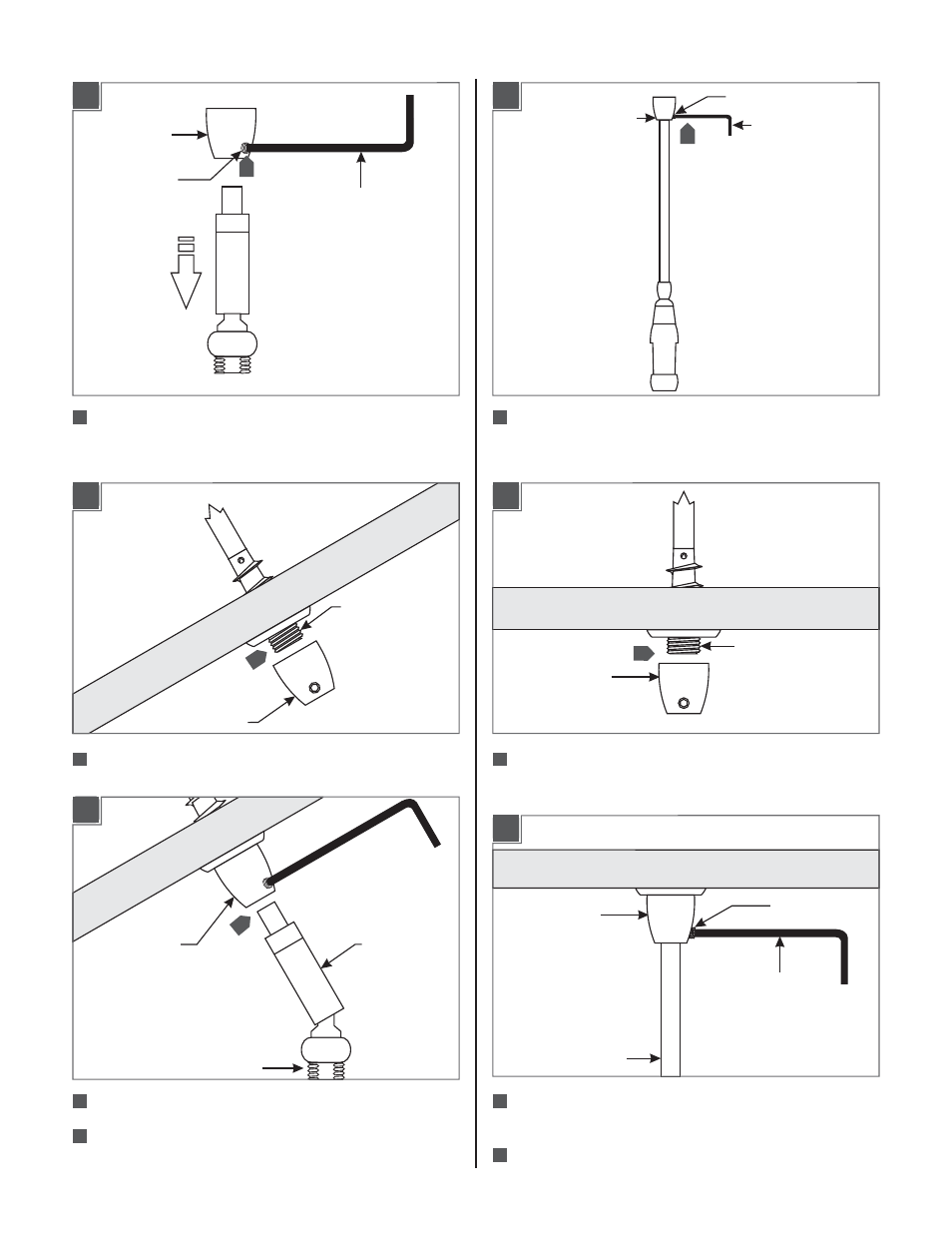

Loosen the M4 set screw on the support (Do Not Remove)
post with the 2 MM Allen wrench provided and remove the
support post.
2 MM ALLEN WRENCH
M4 SET SCREW
SUPPORT POST
SUPPORT POST
STANDOFF ROD
2 MM ALLEN
WRENCH
M4 SET SCREW
Push the standoff rod completely into the support post and
tighten the M4 set screw with the 2 MM Allen wrench.
Repeat these steps for each standoff.
Attach the Vault Adapter (Optional) Attach the Telescoping Standoff
Screw the support post completely to the threaded nipple.
SUPPORT POST
THREADED NIPPLE
SUPPORT POST
Loosen the M4 set screw on the support (Do Not Remove)
post and remove the support post from the ball joint.
2 MM ALLEN
WRENCH
M4 SET
SCREW
THREADED NIPPLE
Reattach the ball joint to the support post.
Repeat these steps for each standoff.
SUPPORT POST BALL JOINT
Screw the support post completely to the threaded nipple on
the anchor (above) or the ball joint (shown in figure 2C).
SUPPORT POST
THREADED NIPPLE
1A
1
2
3
4
2A
1A 2B
1A 2C
2
3
1
1A
1
2
3
4
3A
1A 3C
2
3
1
1A 3B
