LBL Lighting 2-Circuit MO Curve User Manual
Curved 2-circuit monorail

Installation Instructions for
Curved 2-Circuit Monorail
1.0
RAILCV_
980MR2CRAIL
G
P
I
:
ENERAL
RODUCT NFORMATION

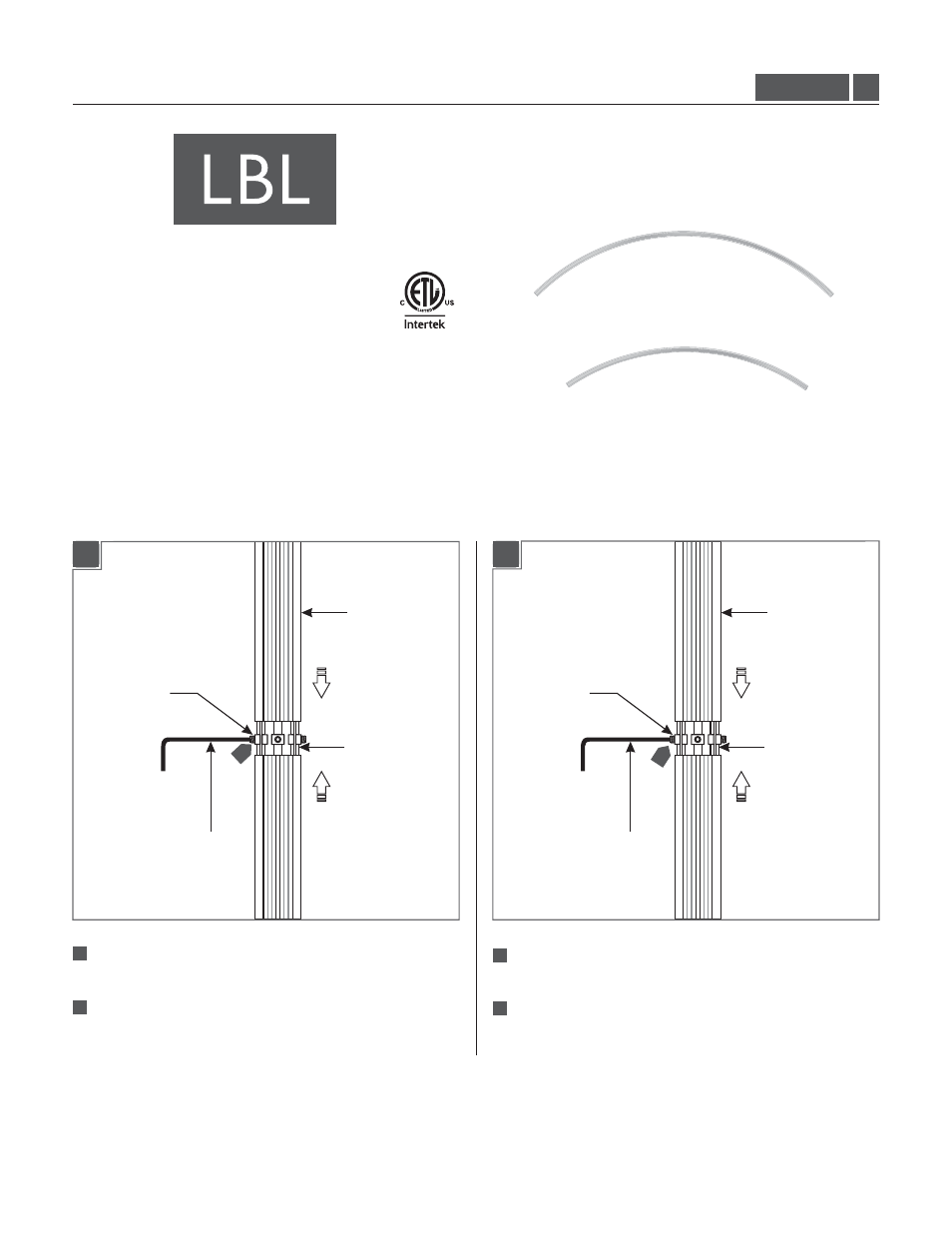

This product is a pre bent 2-Circuit Monorail. Avoid re-bending or
straightening the curve which may cause the rails to separate from
the insulator.
1
Push the two 2-Circuit Monorail sections completely onto the
isolating connectors.
Tighten the M3 set screws firmly with the 1.5 MM Allen
wrench provided.Avoid over tightening the set screws which
may strip the threaded.
Pre Bent 2-Circuit Monorail with
Isolating Connectors
Pre Bent 2-Circuit Monorail with
Conductive Connectors
Push the two 2-Circuit Monorail sections completely onto the
conductive connectors.
Tighten the M3 set screws firmly with the 1.5 MM Allen
wrench provided. Make sure that the set screw connections
are tight for proper connection and to avoid heat buildup.
2-CIRCUIT
MONORAIL
ISOLATING
CONNECTORS
M3 SET SCREW
1.5 MM ALLEN
WRENCH
2-CIRCUIT
MONORAIL
CONDUCTIVE
CONNECTORS
M3 SET SCREW
1.5 MM ALLEN
WRENCH
2-Circuit Monorail
1B
1A
1
3
1B
1A
2
4
4
2
