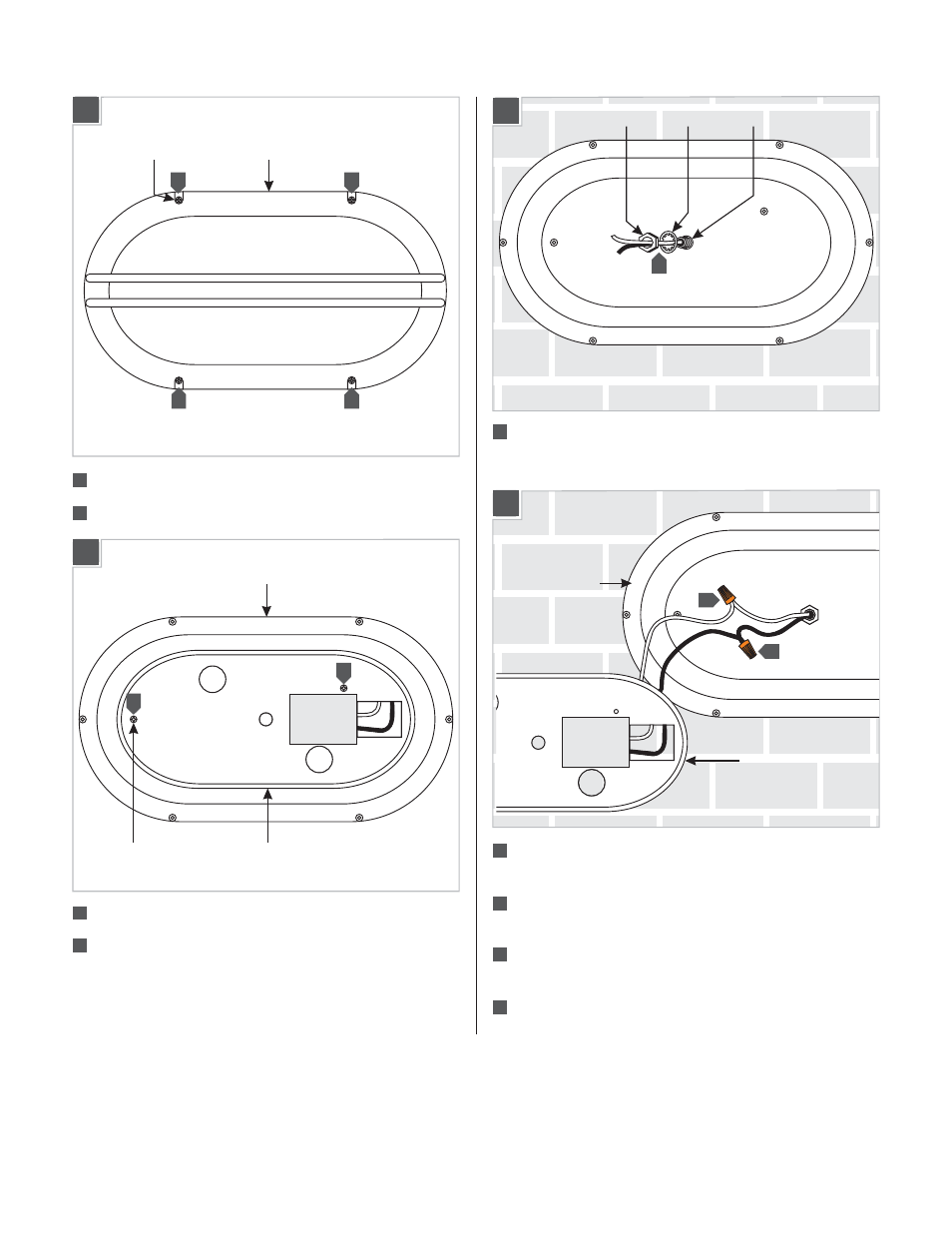

Make sure the fixture is level, and secure the fixture to the
nipple with a lock washer and nut.
Remove the two screws on the reflector.
Lift the reflector out of the fixture base.
REFLECTOR
Remove all the screws from the front of the fixture.
Lift the shade off of the fixture.
Connect the neutral power line wire to the white fixture wire
with a wire nut.
Connect the hot power line wire to the black fixture wire with
a wire nut.
Connect the fixture to a suitable ground according to local
electrical codes.
Reattach the reflector to the fixture base.
SCREW
REFLECTOR
FIXTURE BASE
WASHER NUT NIPPLE
SCREW SHADE
FIXTURE BASE
