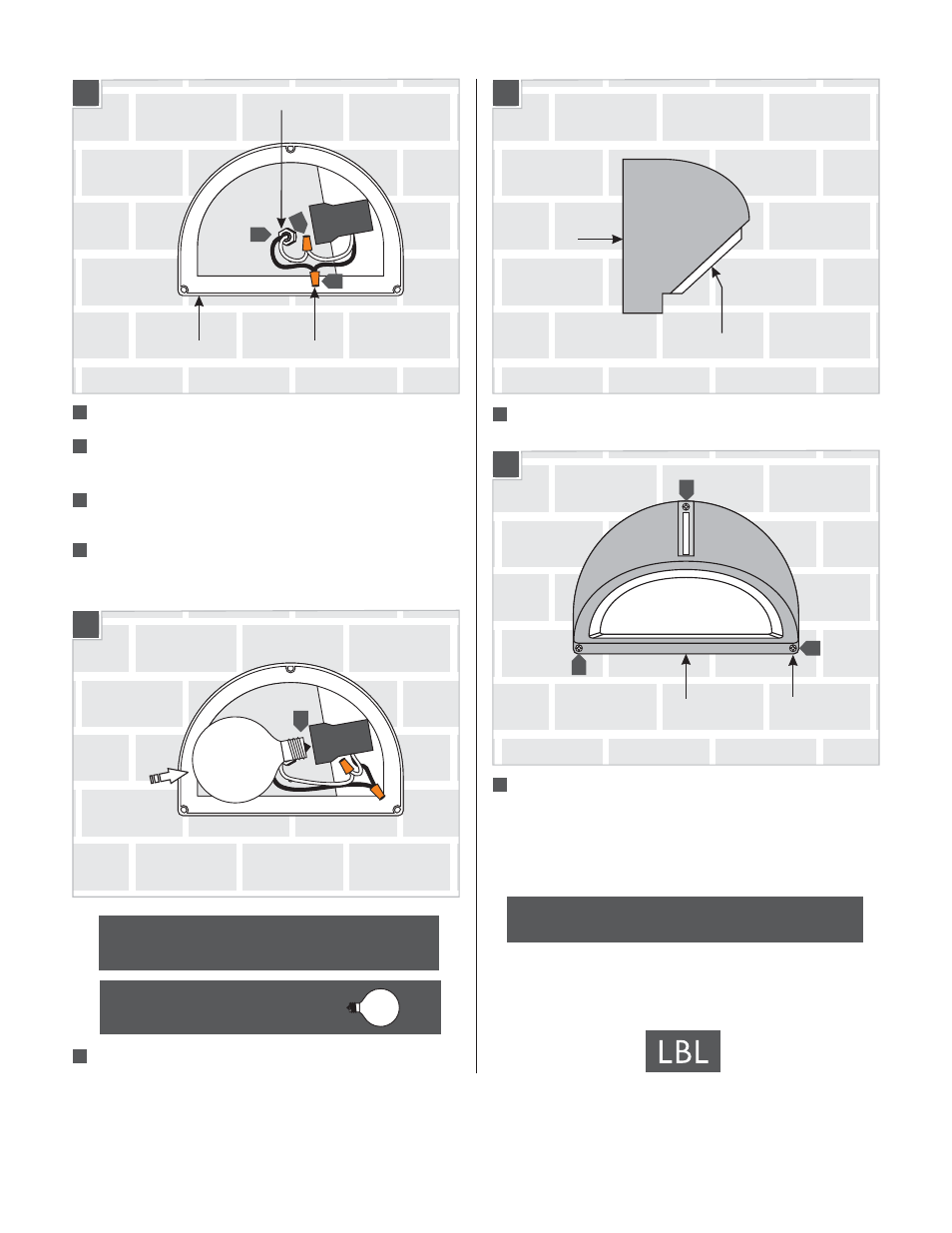

Place the cover onto the fixture base and screw in the three
screws provided to secure the cover.
COVER
Place the glass shield inside the plastic cover.
GLASS SHIELD
PLASTIC
COVER
Slip the hole in the center of the fixture base onto the nipple.
Make sure the fixture is level, and secure the fixture to the
nipple with a nut.
Connect the white fixture wire to the neutral power line wire
with a wire nut.
Connect the black fixture wire to the hot power line wire
with a wire nut.
FIXTURE BASE
NUT
SCREW
Screw the lamp into the socket.
C AUTION:To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
Use Type G16.5 MAX 40 Watt
E12 Base Lamp.
WIRE NUT
5
6
7
1D
8
1E
10
9
10
8
5
6
7
10
10
SAVE THESE INSTRUCTIONS!
