LBL Lighting Modular New York Medium/Large T5 - Manual (Page 3)

3

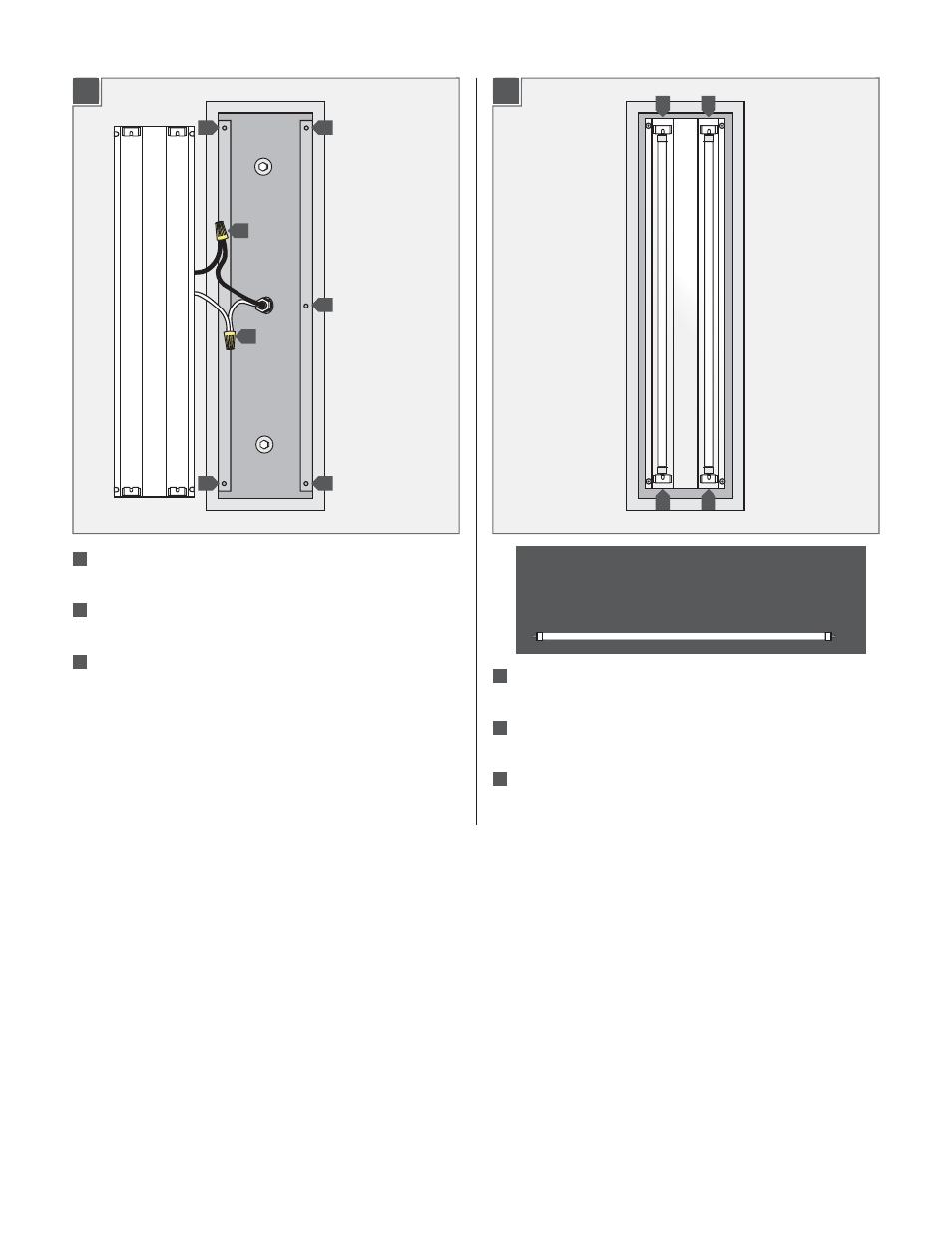

Install the Lamps
Medium MAX 24 Watt versions use type T5 high output
linear fluorescent lamp.
versions use type T5 high output Large MAX 39 Watt
linear fluorescent lamp.
Line up the lamp pins on both ends with the opening on the
sockets.
Insert the pins all the way into the sockets and turn the lamp
to lock it in place.
Reinstall the front cover on to the housing and fully tighten all
six cap screws. Tighten all the cap screws evenly to prevent
the cover from flexing, which could cause the glass to break.
Connect the neutral power line wire to the white fixture wire
with a wire nut.
Connect the hot power line wire to the black fixture wire with
a wire nut.
Reinstall the reflector into the housing and tighten all six
screws to hold it in place.
1G
14
15
2A
16
1
2
3
16 16
16 16
16
15
14
2 2
2 2
