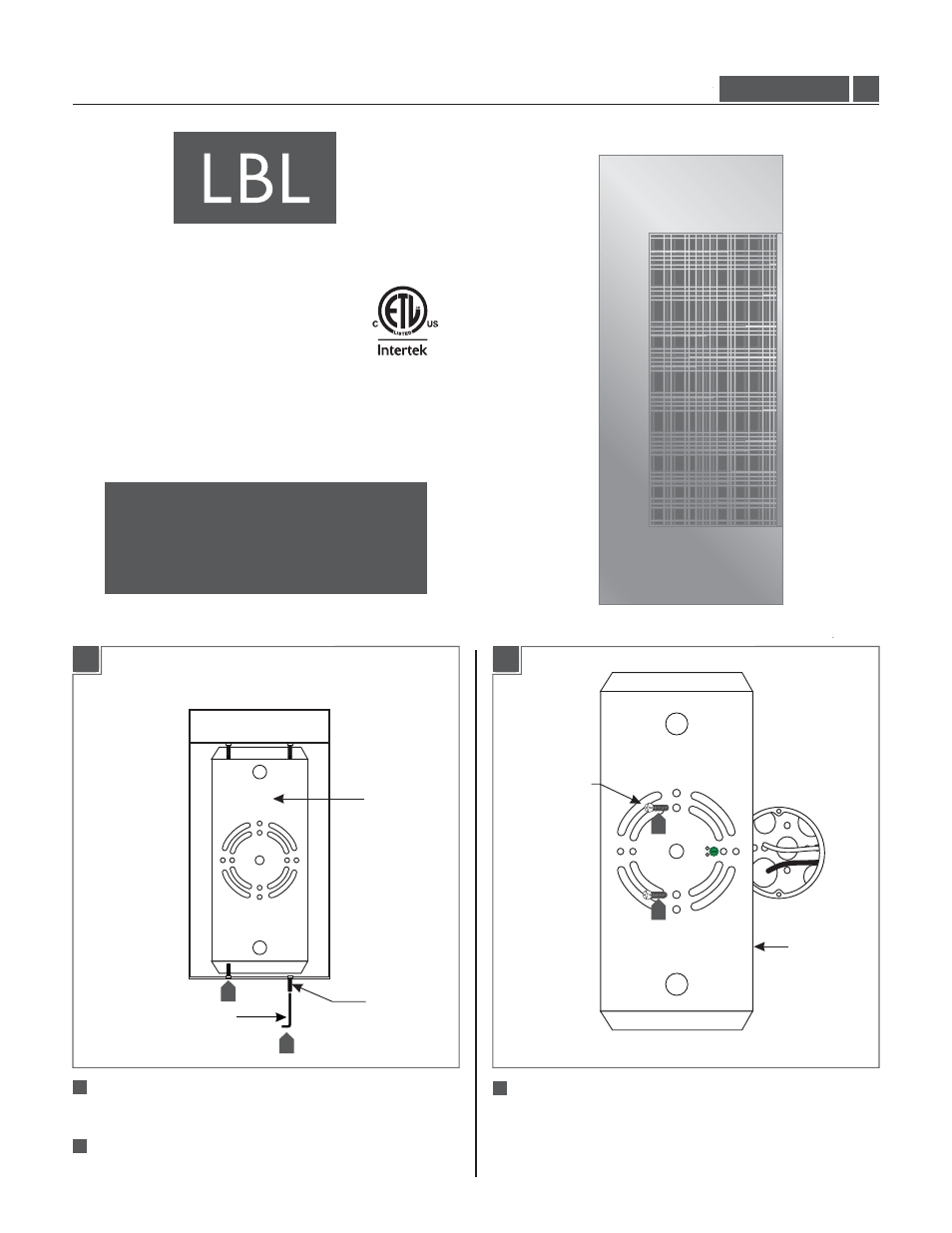

Installation Instructions for
Henry 12 Outdoor
980HENRY12O
Install the Fixture
G P I : ENERAL RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product may be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.
With the Allen wrench provided, back out (do not fully
remove) the set screws at the bottom of the fixture.
Remove the mounting plate from the back of the
fixture.
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
MOUNTING
PLATE
#8-32 SCREW
1 3
1.0
Outdoor
1A 1B
2
OD820_LED
3
3
MOUNTING
PLATE
ALLEN WRENCH
SET SCREW
1
1
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
