LBL Lighting Moon Dance 18 User Manual
Moon dance 18 outdoor, Install the mounting plate

1
Installation Instructions for
Moon Dance 18 Outdoor
980MOOND18O
Install the Mounting Plate
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for wet locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
1.1
Outdoor
1A
OD789_
MOUNTING
PLATE
ALLEN WRENCH
1

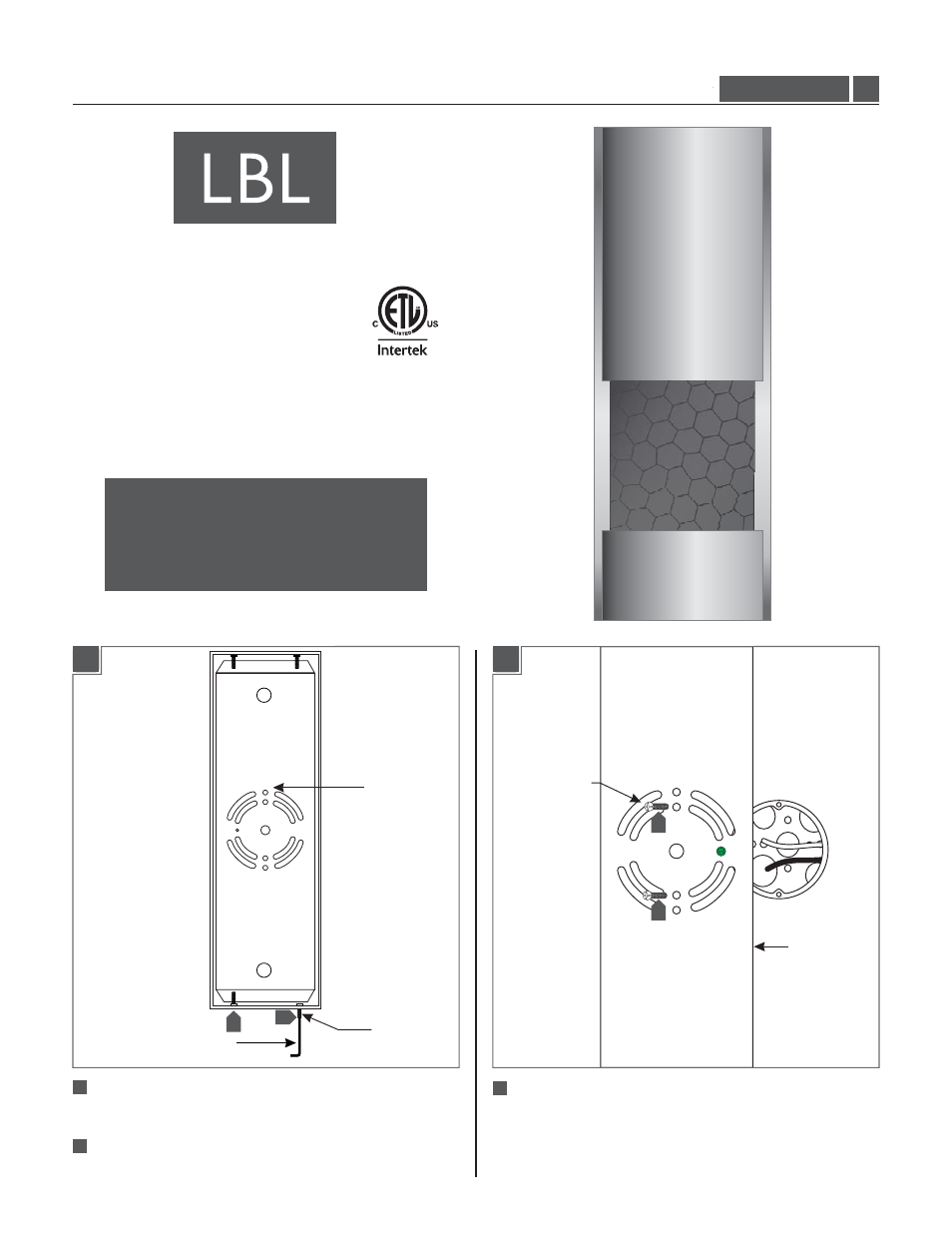

Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
MOUNTING
PLATE
#8-32 SCREW
3
1B
3
3
With the Allen wrench provided, back out (do not fully
remove) the set screws at the base of the fixture.
Remove the mounting plate from the back of the
fixture.
1
2
1
SET SCREW
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
