Installation Instructions for
Linea
1.3
LN_0SI
980LINEAW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This instruction shows a typical installation.

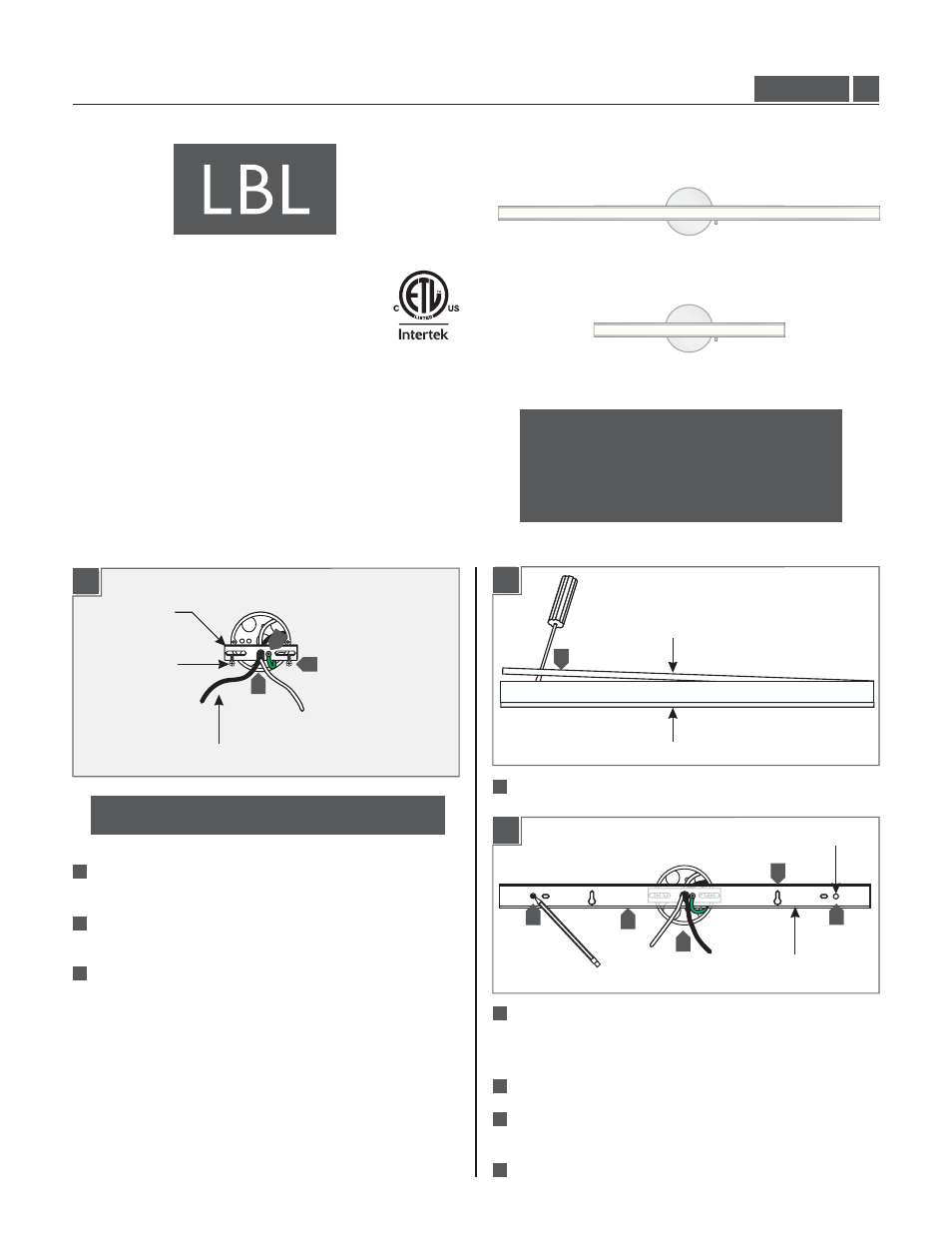

Install the Fixture
#8-32 FLAT
HEAD SCREW
CROSSBAR
ASSEMBLY
POWER LINE WIRES
Feed the power line wires through the nipple attached to the
crossbar assembly.
Mount the crossbar assembly to the electrical box with the
two #8-32 flat head screws.
Make sure that the crossbar assembly is grounded in
accordance with local electrical codes.
NOTE:
Do not disassemble the crossbar assembly.
Feed the power line wires through the backplate center hole.
Slide the backplate center hole onto the nipple attached to the
crossbar.
Hold the backplate against the wall.
Level the backplate horizontally and mark the two end holes
on to the wall.
Remove the backplate.
BACKPLATE
END HOLE
Remove the backplate from the socket housing.
SOCKET HOUSING
BACKPLATE
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
