LBL Lighting Lola User Manual
Lola 5-light bath, Install the mounting plate
1
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.

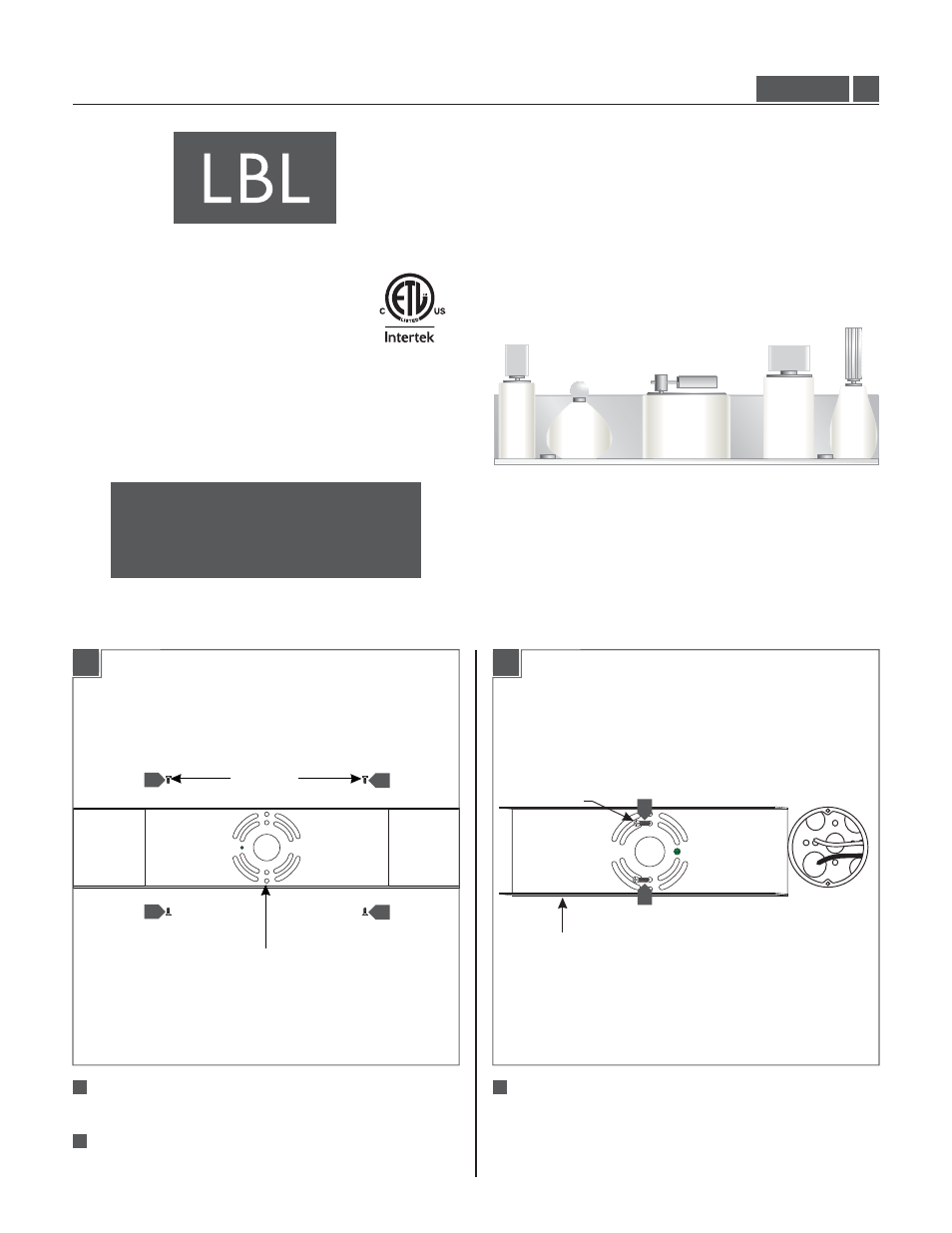

Install the Mounting Plate
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
Remove the four set screws located on top and bottom
of the fixture base.
Remove the mounting plate.
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
MOUNTING PLATE
SET SCREW
1
1A
2
Wall
3
1
1
MOUNTING
PLATE
#8-32 SCREW
1B
3
3
Installation Instructions for
Lola 5-Light Bath
980LOLA5W
1.0
BA7445_
