Installation Instructions for
Veneto Venti Ceiling 1.3 JC400_2D100
980VENETVC
Ceiling
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
G P I : ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for indoor dry locations only.
This product can be dimmed with a standard incandescent dimmer.

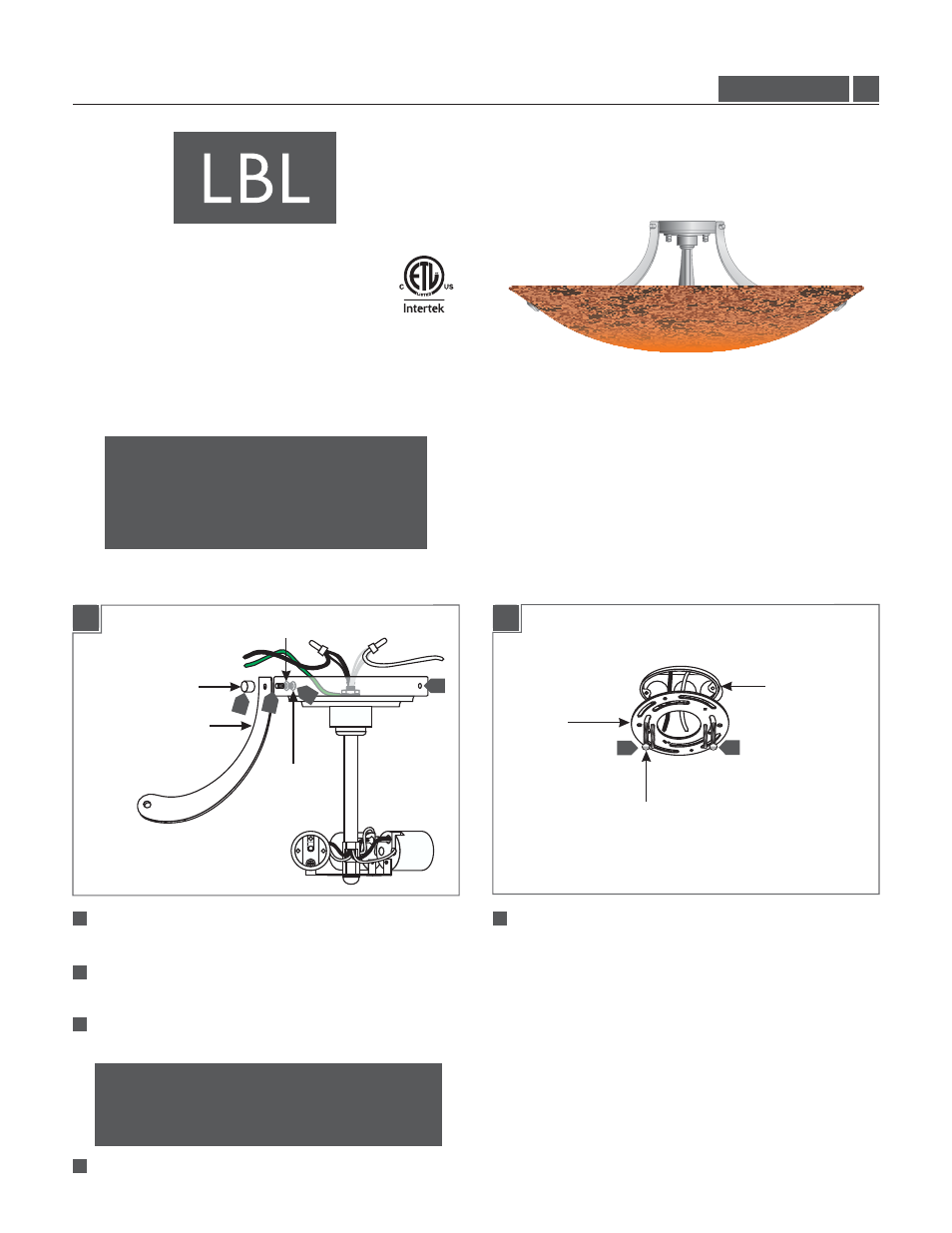

Install the Fixture
Place the button head screw and washer from the inside
through one of the canopy holes.
Place the narrow side hole of the shoe horn bracket onto the
exposed button head screw.
Finger tighten the cap nut completely to the button head
screw to secure the shoe horn bracket in place.
NOTE: There will be a small gap between the shoe horn
bracket and canopy when the cap nut is completely
tighten to button head screw.This gap is necessary when
attaching the glass shade to shoe horn brackets.
Repeat step 1 through 3 for the other two shoe horn brackets.
CAP NUT
SHOE HORN BRACKET
WASHER
BUTTON
HEAD SCREW
Mount the crossbar to the electrical box with the two #8-32
screws.
#8-32 SCREW
CROSSBAR
ELECTRICAL
BOX
1B 1A
2
1
2
3
4
5
3
1
4
5 5
