Page 2
2
Connect the mounting plate ground wire to a suitable
ground in accordance with local electrical codes.
Connect the white driver wire to the neutral power line
wire with a wire nut.
Connect the black driver wire to the hot power line wire
with a wire nut.
2A
1
2
3
1
2
3
Install the Fixture
FIXTURE
2B
24
Properly place all wires and wire nut connections into
the fixture.
Mount the fixture onto the threaded studs on the
mounting plate and secure it by tightening the two
cap nuts.
CAP NUT
5
5
MOUNTING PLATE
25
FIXTURE
STUD
3
1C
MOUNTING
PLATE

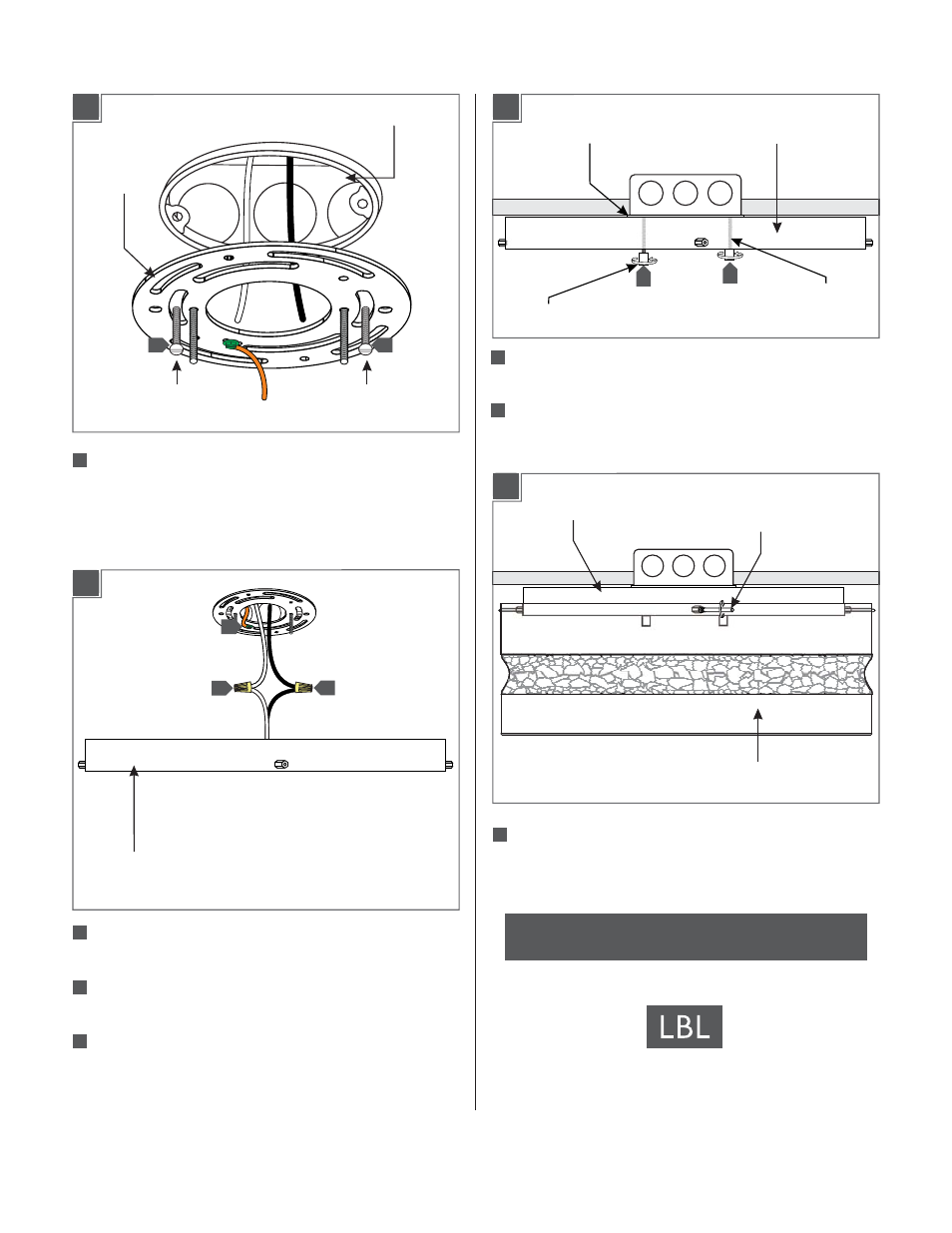

Mount the mounting plate to the electrical box with
the two #8-32 screws.
#8-32 SCREW
3
#8-32 SCREW
ELECTRICAL BOX
3
2C
MOUNTING ROD
SHADE
2
Align the shade with the fixture and install the four
mounting rods by screwing them in completely.
6
FIXTURE
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved.The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
A Generation Brands Company
SAVE THESE INSTRUCTIONS!
