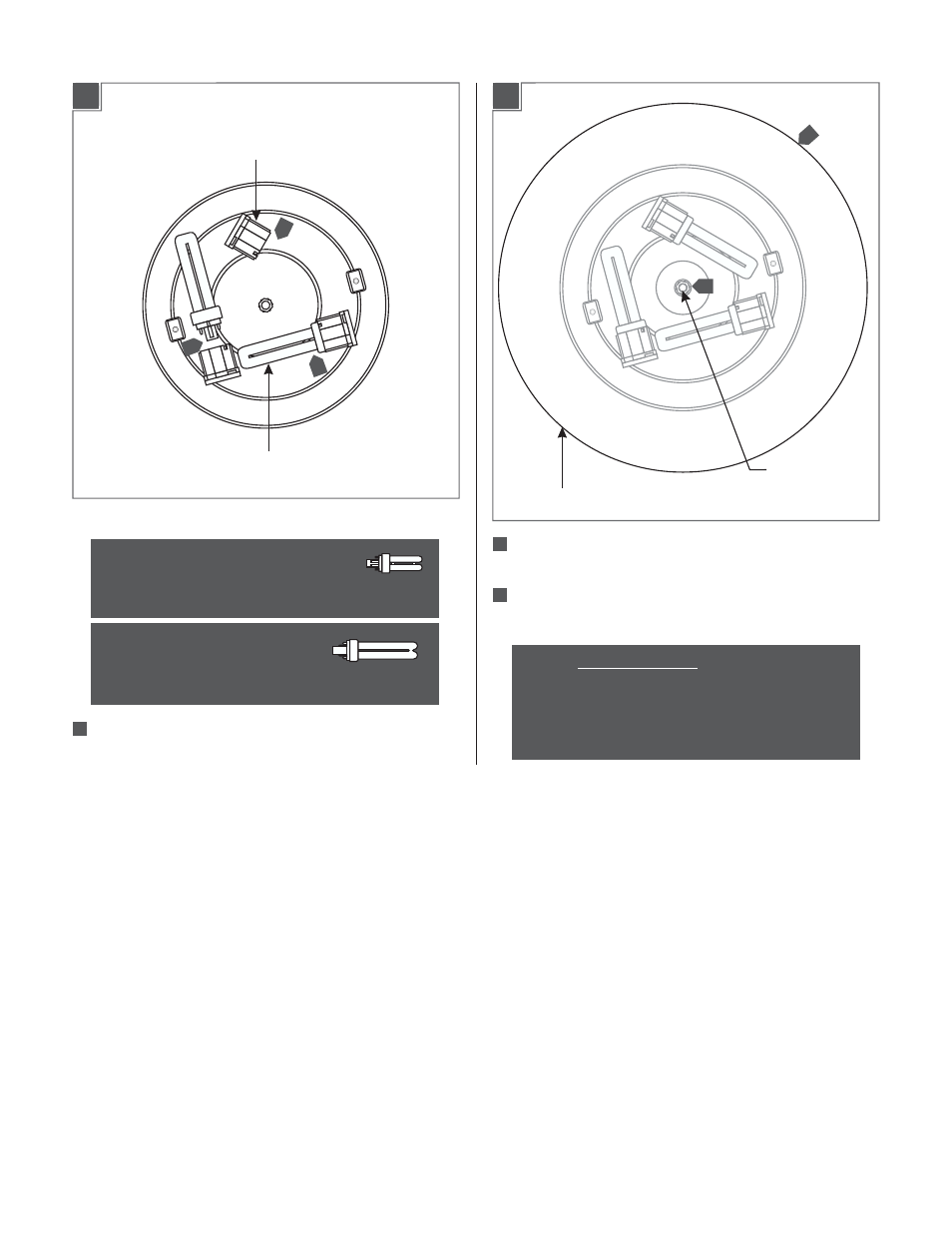

Install the Lamps & Shade
Push the lamp pins completely into the socket holes.
3
Align the metal shade center hole with the exposed threaded
nipple.
While holding the mounting plate in place, rotate to tighten
the metal shade to the mounting plate.
SOCKET
LAMP
METAL SHADE
For The Fixtures With Electronic Ballast,
Use
Watt Type Quad Tube G24q-1
MAX 13
Base 4-PIN Compact Fluorescent Lamp,
With Each Socket.
For The Fixtures With Magnetic Ballast,
Use
Watt Type Quad Tube
MAX 13
GX23-2 Base Compact Fluorescent Lamp,
With Each Socket.
EXPOSED
THREADED NIPPLE
NOTE:
To replace the lamp:
- Hold the mounting plate and rotate the metal shade
counter clockwise to remove it.
- Remove the old lamp.
- Follow steps 1 through 3 on this page.
2A
2B
1
2
3
1
2
1
1
3
