LBL Lighting Iris WCF3 User Manual
Iris 2x13w compact fluorescent wall, Install the fixture, 1b 1a
1B
1A
1
Installation Instructions for
1.4
PWAP11_SC213_
980IRISWCF3
#8-32 SCREW
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.

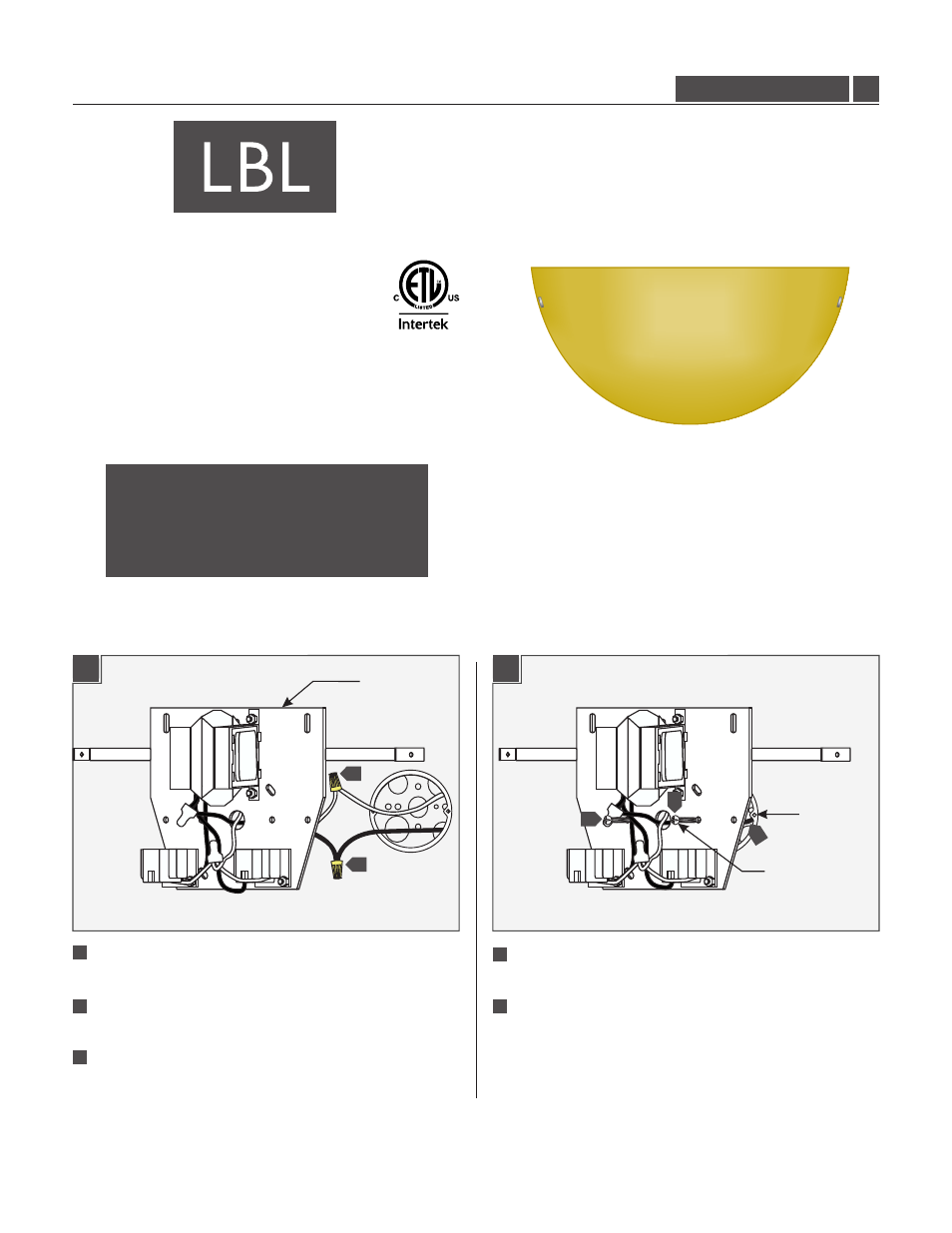

Install the Fixture
Place all wires and wire nut connections properly inside the
electrical box.
Align the mounting plate holes with electrical box holes and
tighten the two #8-32 screws to secure the fixture in place.
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
1
ELECTRICAL
BOX HOLE
MOUNTING
PLATE
Iris 2X13W Compact Fluorescent Wall
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
5
4
5
4
3
5
3
2
