2A
MOUNTING
PLATE

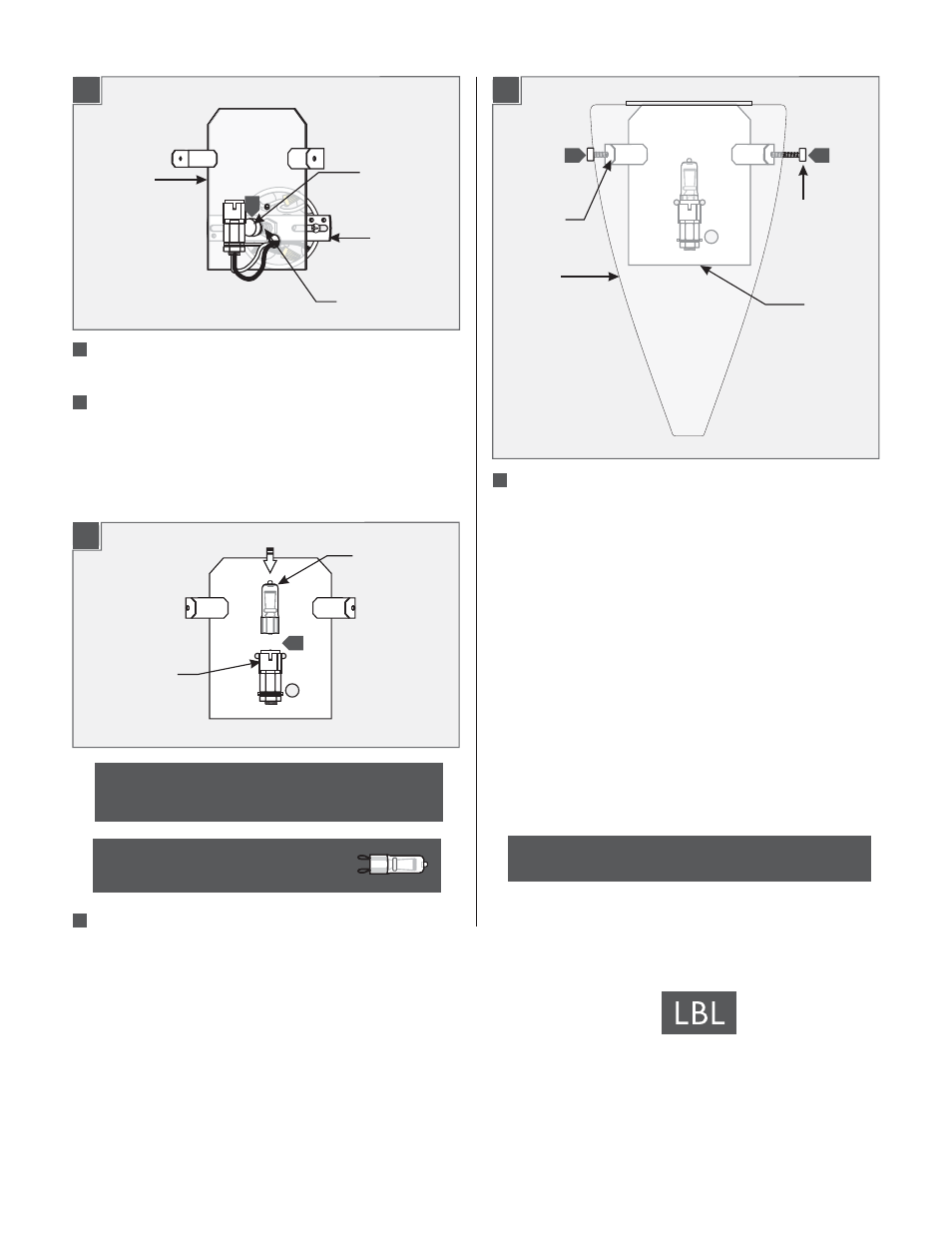

Place all wires and wire nut connections properly inside the
electrical box.
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate in place by
tightening the cap to threaded nipple.
CAP
LAMP
SOCKET
2
CROSSBAR
EXPOSED THREADED
NIPPLE
GLASS
SHADE
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
THUMB
SCREW
MOUNTING
PLATE
MOUNTING
BRACKET
Push the lamp pins completely into the socket holes.
NOTE:
Use only your fingers and a soft cloth to install
the lamp.
Use
120 Volt,
Watt Type T4,
MAX
60
G9 Base, Bi-Pin Halogen Lamp.
Install the Lamp and Shade
2B
SAVE THESE INSTRUCTIONS!
7400 Linder Ave, Skokie, IL 60077
800.323.3226 - 847.626.6300
www.lbllighting.com
© 2014 LBL Lighting.All rights reserved.The "LBL Lighting" graphic is a
registered trademark of LBL Lighting. LBL Lighting reserves the right to
change specifications for product improvements without notification.
