Installation Instructions for
Athena Wall (Compact Fluorescent)
1.4
PW5498_13Q_
980ATHENWCF
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.

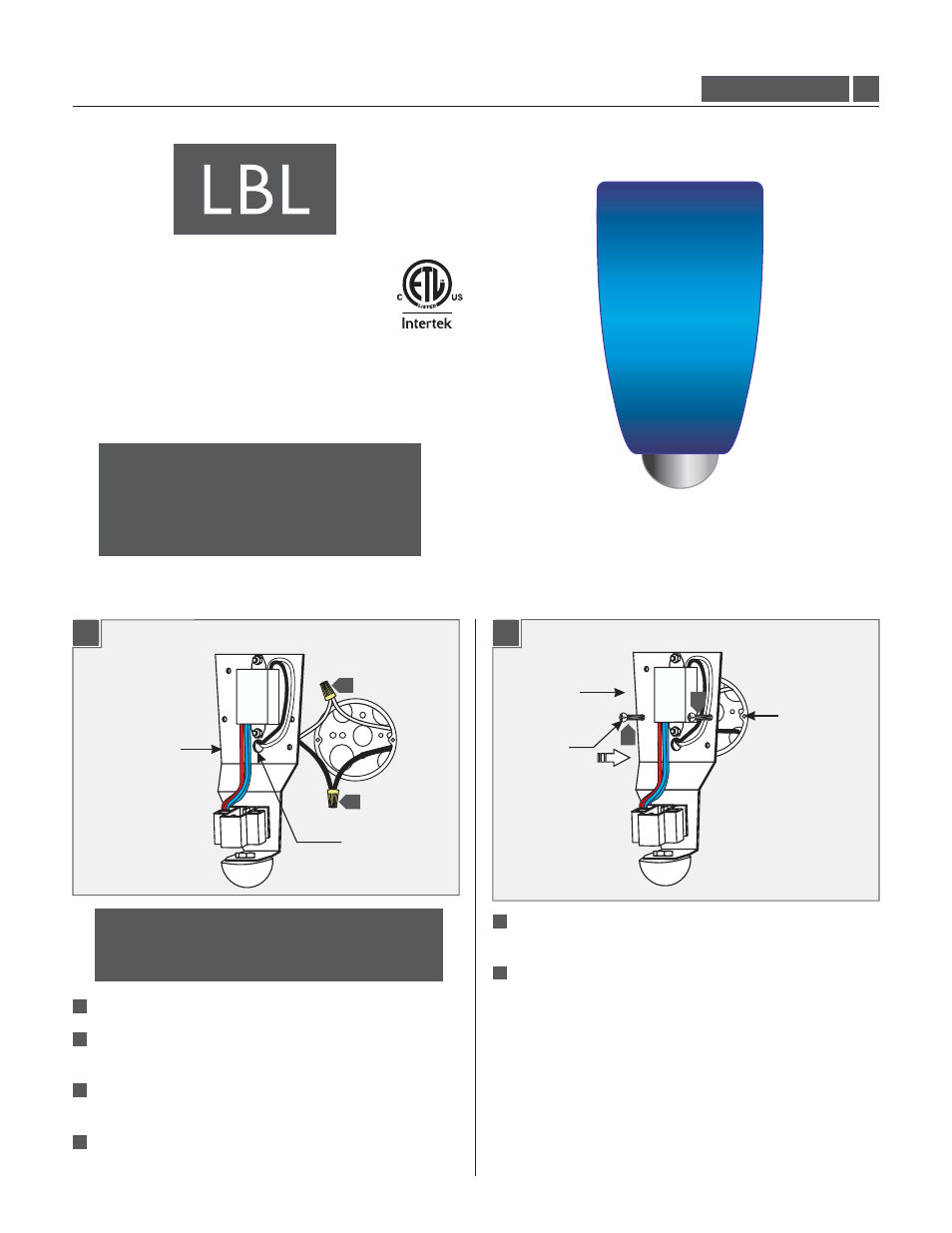

Install the Fixture
MOUNTING
PLATE
Feed the fixture wires through the mounting plate center hole.
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
Place all wires and wire nut connections properly inside the
electrical box.
Install the mounting plate to the electrical box with the
provided two #8-32 screws.
MOUNTING
PLATE
ELECTRICAL
BOX HOLE
CENTER HOLE
NOTE:
Use the provided crossbar assembly if the
mounting plate holes do not match with the electrical box
holes.
#8-32
SCREW
1A
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
3
4
5
6
3
4
6
6
