Installation Instructions for

Bora Compact Fluorescent

1.3

PWAP10_SC18Q_

980BORAWCF

GENERAL PRODUCT INFORMATION:

This product can mount to either a 4" square electrical box with

round plaster ring or an octagon electrical box.

This product is suitable for damp locations.

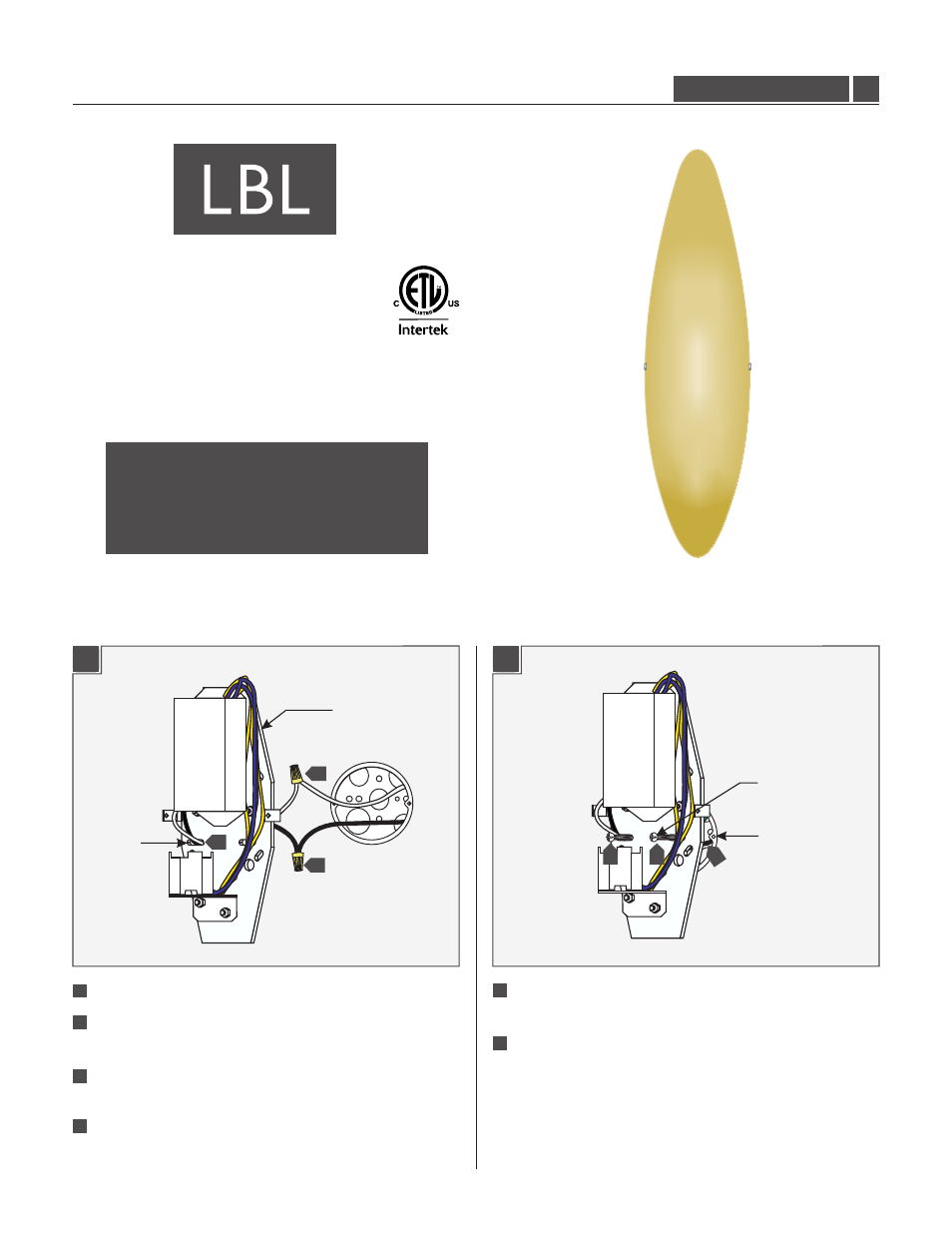

Install the Fixture

Place all wires and wire nut connections properly inside the

electrical box.

Align the mounting plate holes with electrical box holes and

tighten with two #8-32 screws to secure the fixture in place.

1

MOUNTING
PLATE

ELECTRICAL
BOX HOLE

#8-32 SCREW

Feed the fixture wires through the mounting plate side hole.

In accordance with local electrical codes, make sure that the

mounting plate is grounded.

Connect the fixture white wire to the neutral power line wire

with a wire nut.

Connect the fixture black wire to the hot power line wire with

a wire nut.

MOUNTING
PLATE SIDE
HOLE

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

Wall

1

2

6

5

3

3

4

6

6

1

4

5
