Install the lamp & shade, Save these instructions, 2a 1c – LBL Lighting Taitu WCF User Manual
Page 2
Use
Watt Type Quad Tube G24q-1
MAX 13
Base 4-PIN Compact Fluorescent Lamp.
4
MOUNTING
PLATE

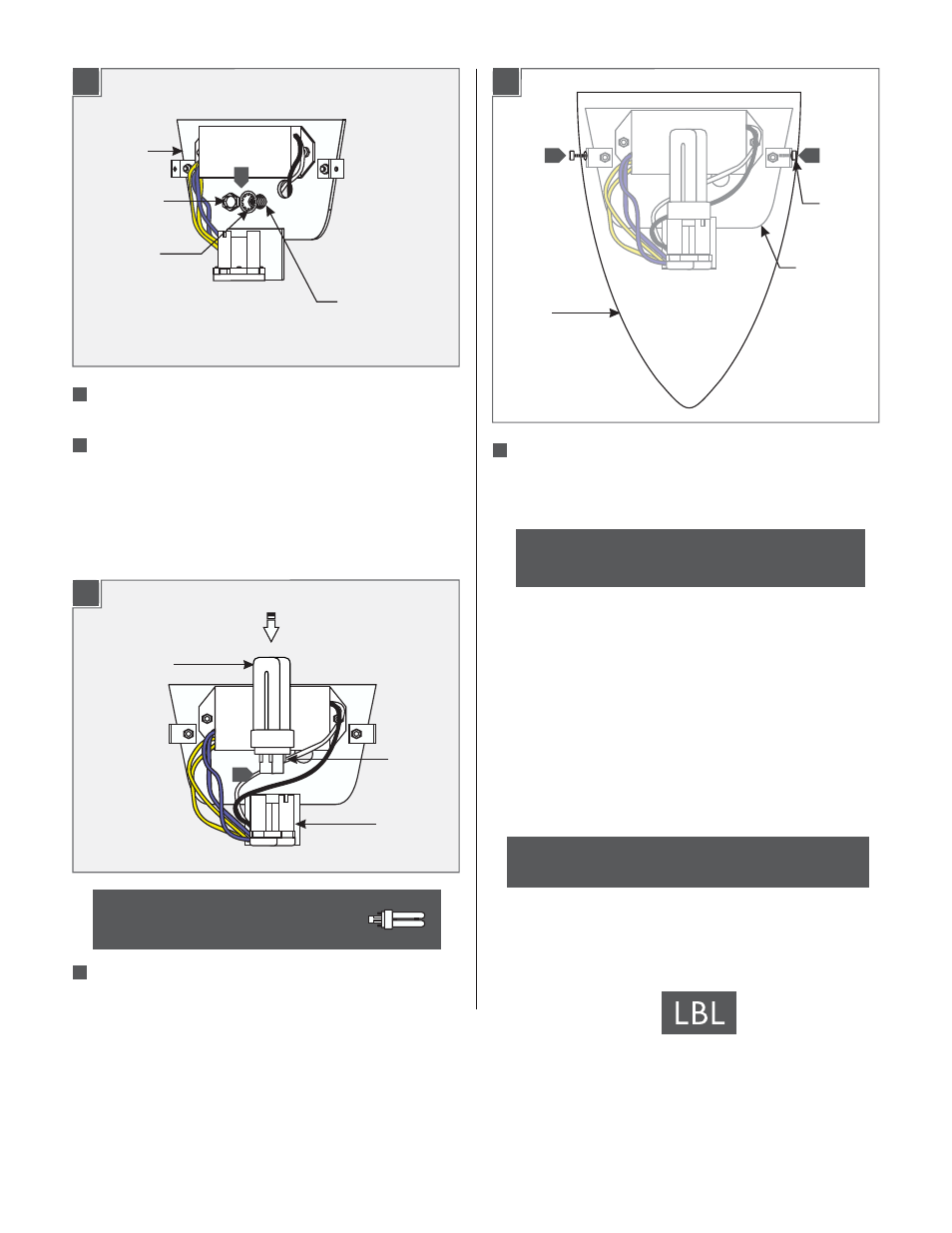

Place all wires and wire nut connections properly inside the
electrical box.
Slide the mounting plate center hole onto the exposed
threaded nipple. Secure the mounting plate to the threaded
nipple with lock washer and nut.
WASHER
Push the lamp pins completely into the socket holes.
2
EXPOSED THREADED
NIPPLE
Install the Lamp & Shade
GLASS
SHADE
Place the glass shade onto the mounting plate. Align the glass
shade holes with the mounting plate holes. Tighten the thumb
screws to secure the glass shade in place.
THUMB
SCREW
MOUNTING
PLATE
LAMP
SOCKET
NUT
PIN
NOTE:
Do not over tighten the thumb screws which may
cause the glass shade to break.
2A
1C
1
6
7
2
1
2
7
7
SAVE THESE INSTRUCTIONS!
