LBL Lighting Bora W - Manual

1A
1

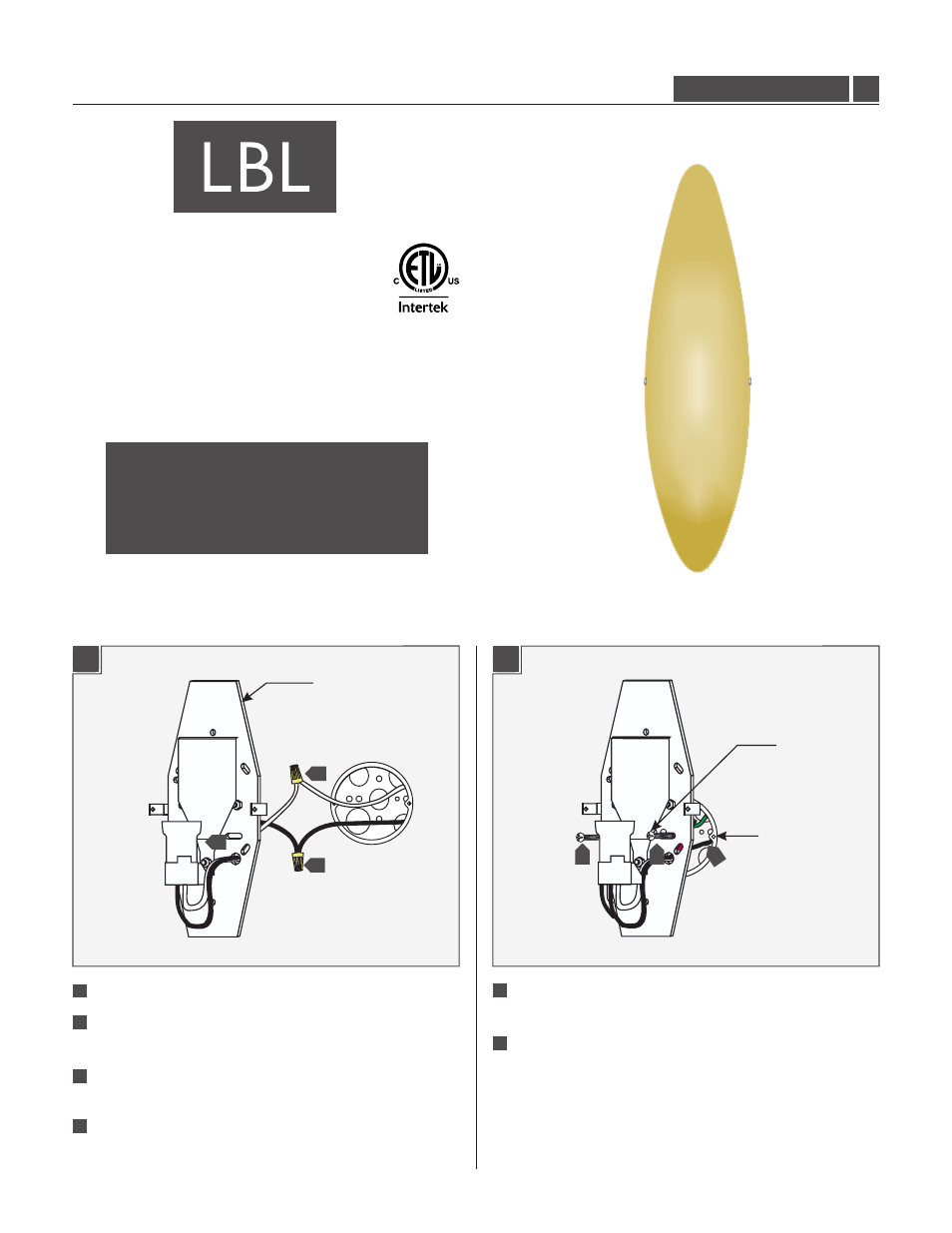

Installation Instructions for
Bora 1.4 JWAP10_SC2D100
980BORAW
GENERAL PRODUCT INFORMATION:
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
Install the Fixture
Place all wires and wire nut connections properly inside the
electrical box.
Align the mounting plate holes with electrical box holes and
tighten with two #8-32 screws to secure the fixture in place.
1
MOUNTING
PLATE
ELECTRICAL
BOX HOLE
5
#8-32 SCREW
Feed the fixture wires through the mounting plate side hole.
In accordance with local electrical codes, make sure that the
mounting plate is grounded.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
6
6
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
6
5
3
3
4
6 6
1
4
5
