Installation Instructions for
Hollywood Beach Wall (Compact Fluorescent)
980HWBEACHWCF
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.

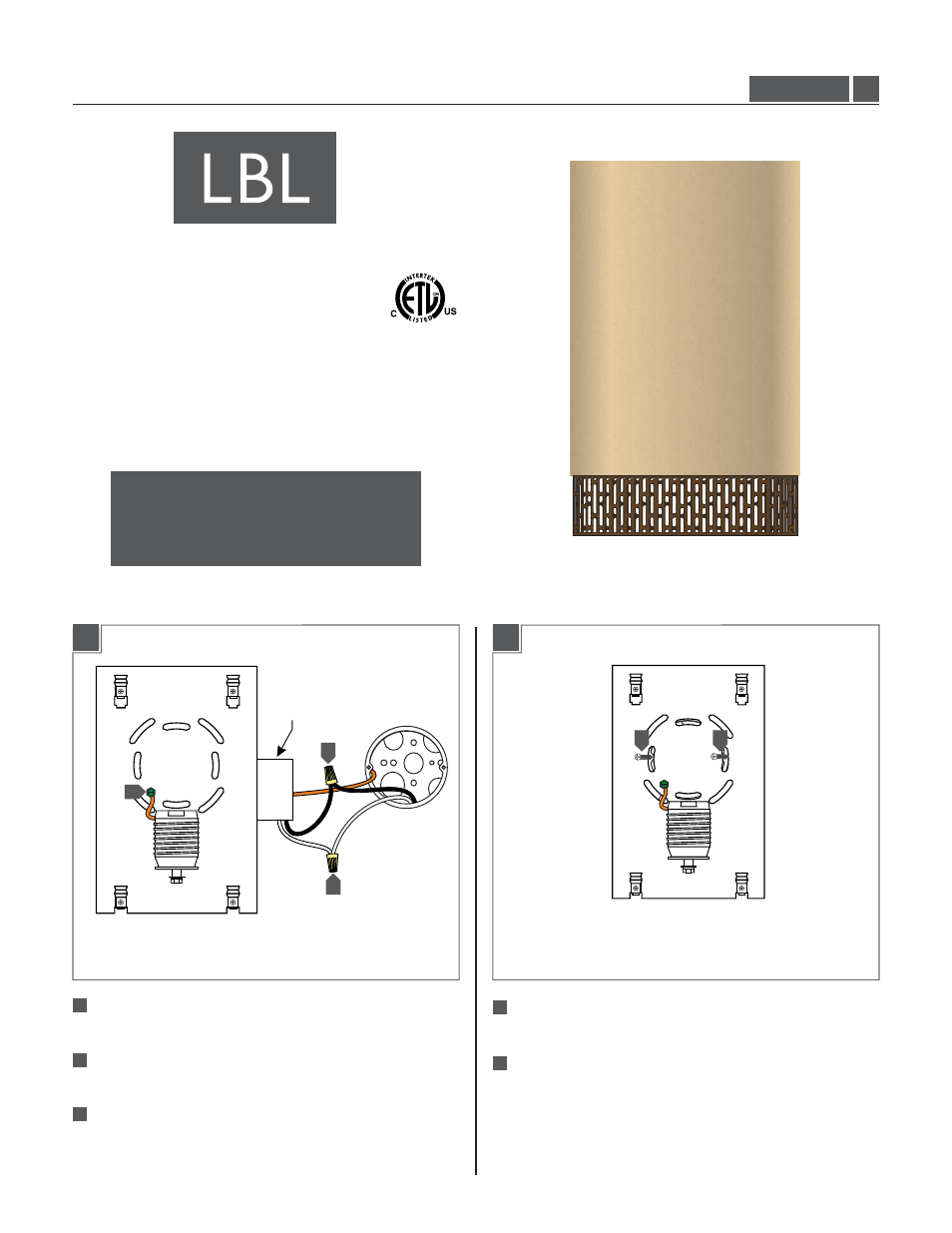

Install the Fixture
1.0
PW654_CF
1A
Connect the mounting plate ground wire to a suitable
ground according to local electrical codes.
Connect the white ballast wire to the neutral power line
wire with a wire nut.
Connect the black ballast wire to the hot power line
wire with a wire nut.
1
2
3
5 5
3
2
1
Place the ballast, all wires, and wire nut connections
inside the electrical box.
Attach the mounting plate to the electrical box using
the two #8-32 screws provided.
4
Wall
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This instruction shows a typical installation.
1B
BALLAST
