LBL Lighting Fiona WD - Manual

Install the Fixture
1A
Wall
1B
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
GENERAL PRODUCT INFORMATION:
This product is suitable for damp locations.
This product can mount either to a 4” square electrical box with a
round plaster ring or an octagon electrical box.
This product can be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.
THUMB SCREW
THUMB SCREW
LED PLATE

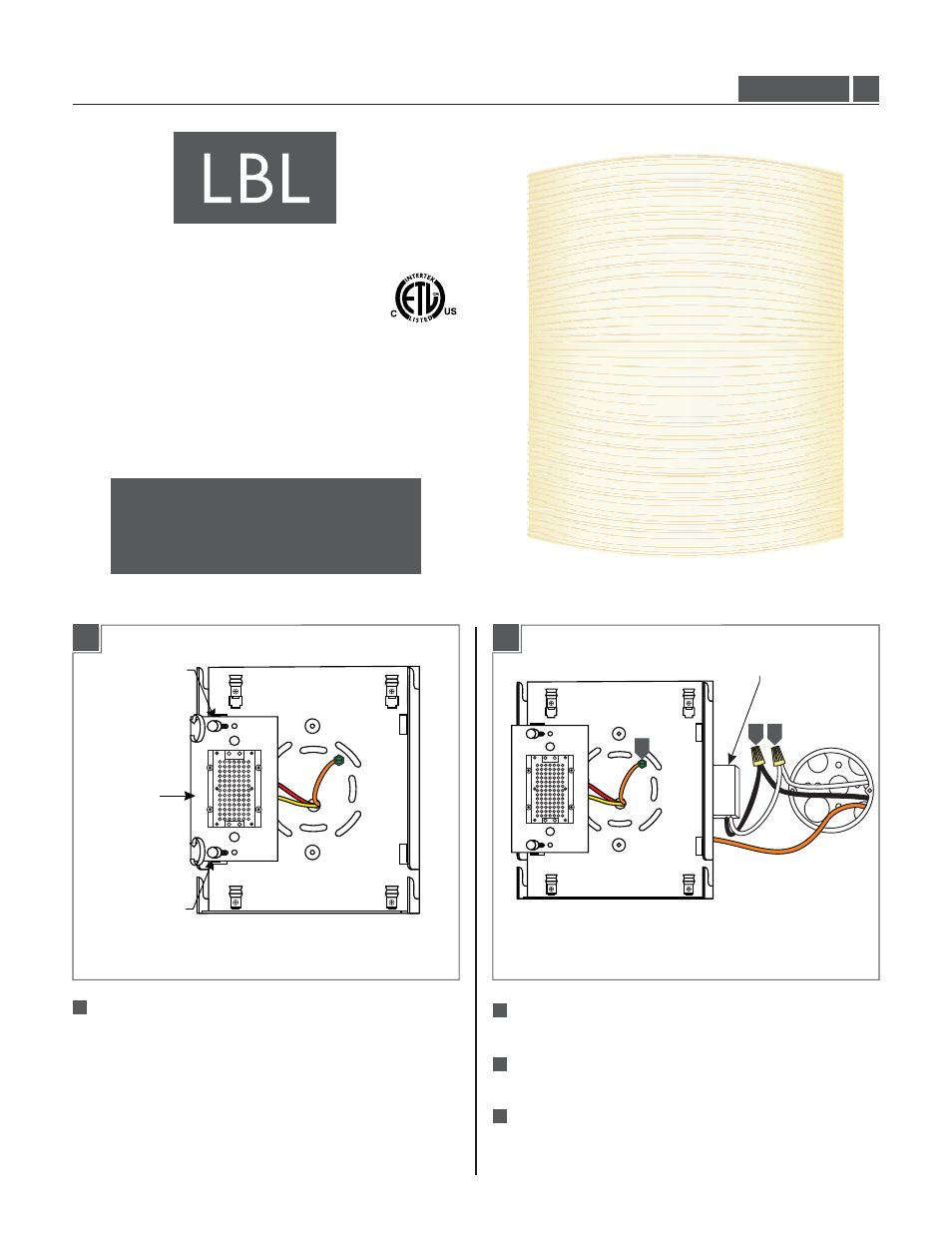

To gain access to the mounting plate holes, remove the
two thumb screw to temporarily loosen the plate
holding the LED lamp. 1
DRIVER
6 2
6 3
Connect the mounting plate ground wire to a suitable
ground in accordance to local electrical codes.
Connect the white driver wire to the neutral power line
wire with a wire nut.
Connect the black driver wire to the hot power line wire
with a wire nut. 6 4
1
4 3
2
Installation Instructions for
Fiona Wall (LED)
980FIONAWD
1.0
LW681_LED
