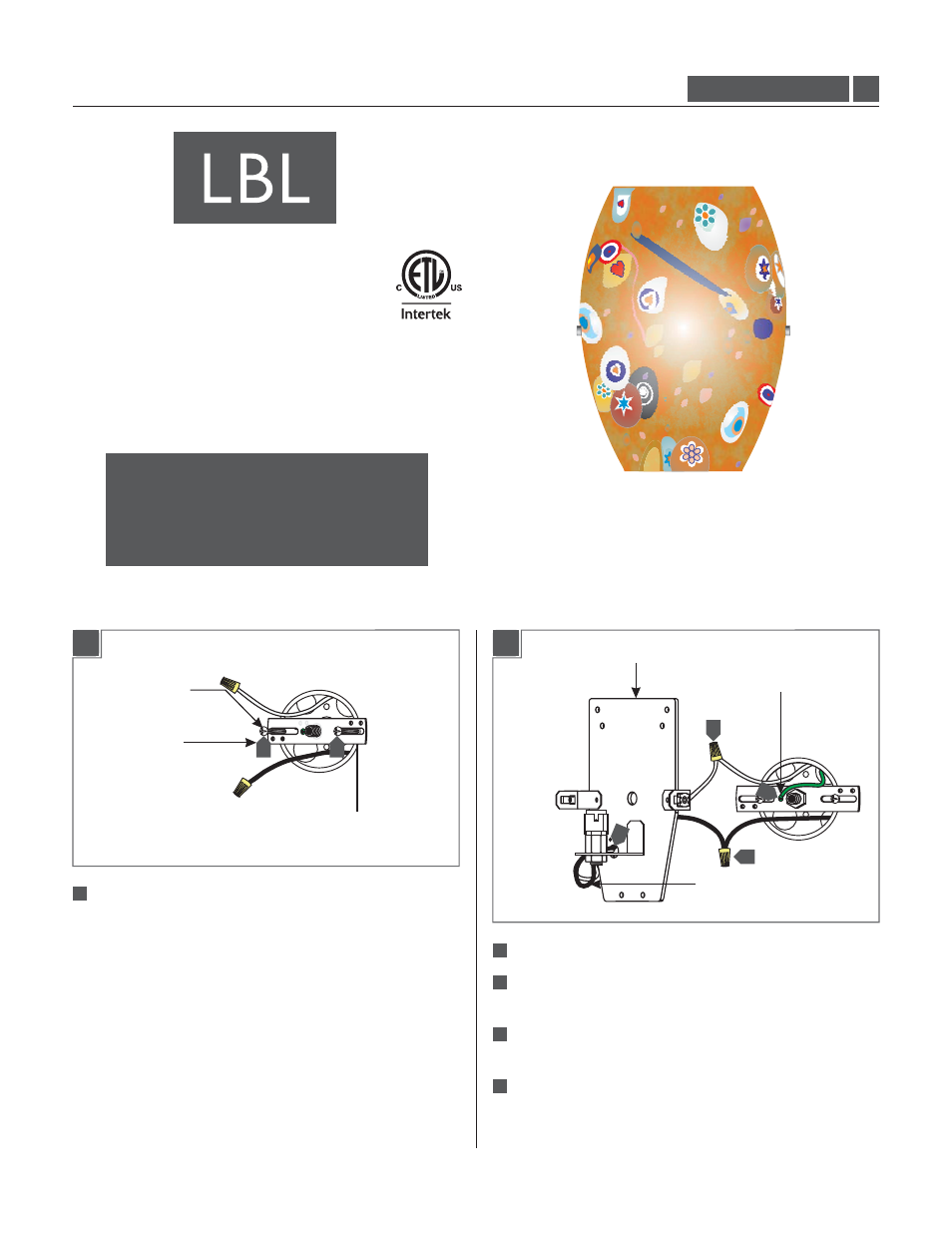

LBL Lighting Monty W - Manual

Installation Instructions for
Monty Wall 1.9 HW936_SC2G60
980MONTYW
G P I : ENERAL RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
Feed the fixture wires through the mounting plate side hole.
Connect the crossbar to a suitable ground in accordance with
local electrical codes.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
FIXTURE WIRES
GROUND WIRE SCREW
1
MOUNTING PLATE
Install the Fixture
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
CROSSBAR
ASSEMBLY
ELECTRICAL BOX HOLE
#8-32 SCREW
1A
1
1 1
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1B
2
3
4
5
2
5
4
3
