LBL Lighting Linear W User Manual
Linear wall, Install the fixture

1A
1B

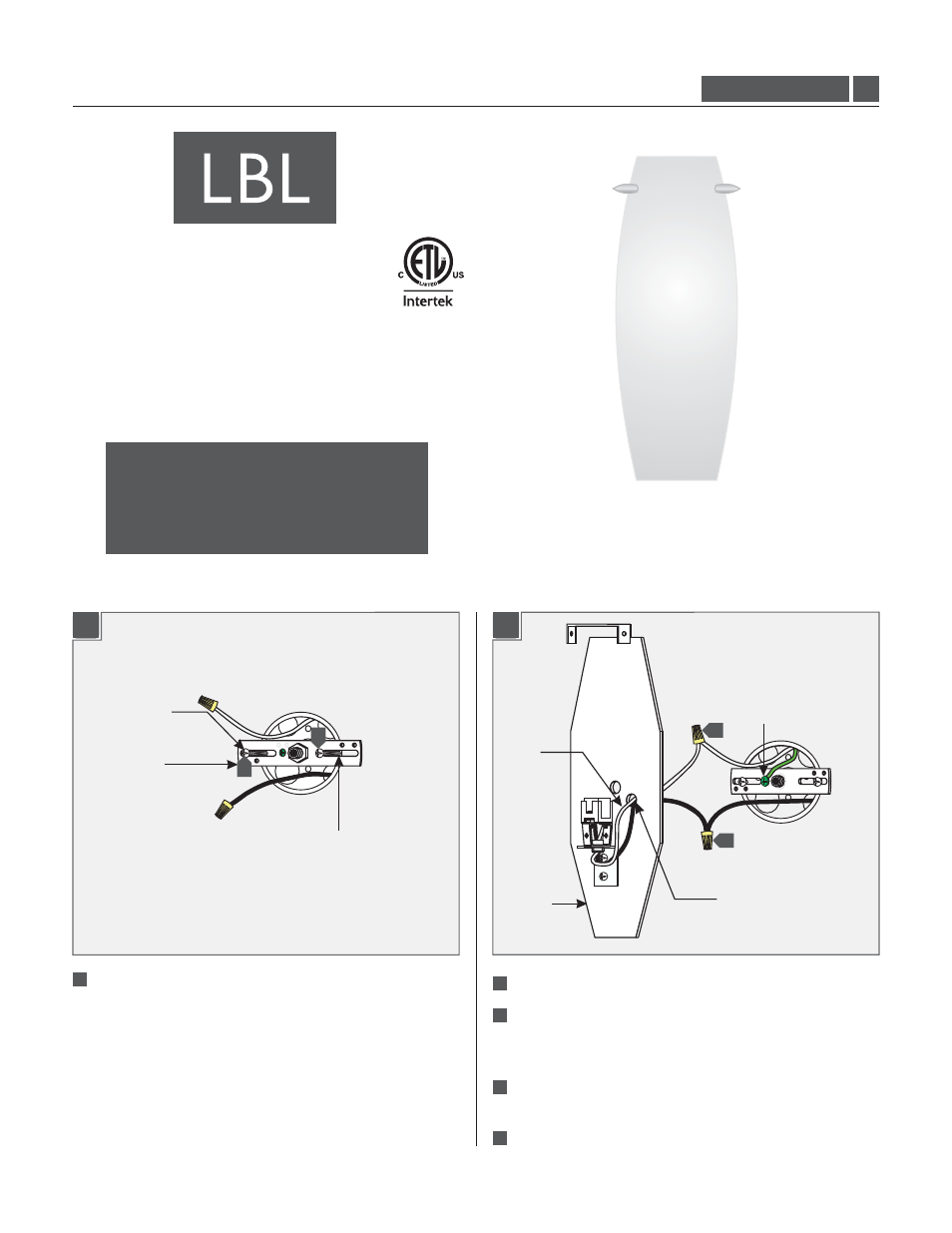

Installation Instructions for
Linear Wall
1.5
HW5497_2G60
980LINERW
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.
This product can be dimmed with a standard incandescent dimmer.
Install the Fixture
Feed the fixture wires through the mounting plate side hole.
Connect the ground wire (bare wire) to the crossbar green
screw. Make sure that the crossbar is grounded in accordance
with local electrical codes.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
FIXTURE
WIRES
GROUND
WIRE SCREW
1
MOUNTING
PLATE
MOUNTING PLATE
SIDE HOLE
Mount the crossbar assembly to the electrical box holes with
the two #8-32 screws provided.
CROSSBAR
ASSEMBLY
ELECTRICAL BOX HOLE
#8-32 SCREW
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
Wall
1
2
1
3
4
5
5
4
1
