LBL Lighting Top II W CF User Manual
Top wall ii (compact fluorescent), Install the fixture

1
Installation Instructions for
Top Wall II (Compact Fluorescent)
1.3
PW240OP_13QHE
980TOPIIWCF
G
P
I
:
ENERAL
RODUCT NFORMATION
This product can mount to either a 4" square electrical box with
round plaster ring or an octagon electrical box.
This product is suitable for damp locations.

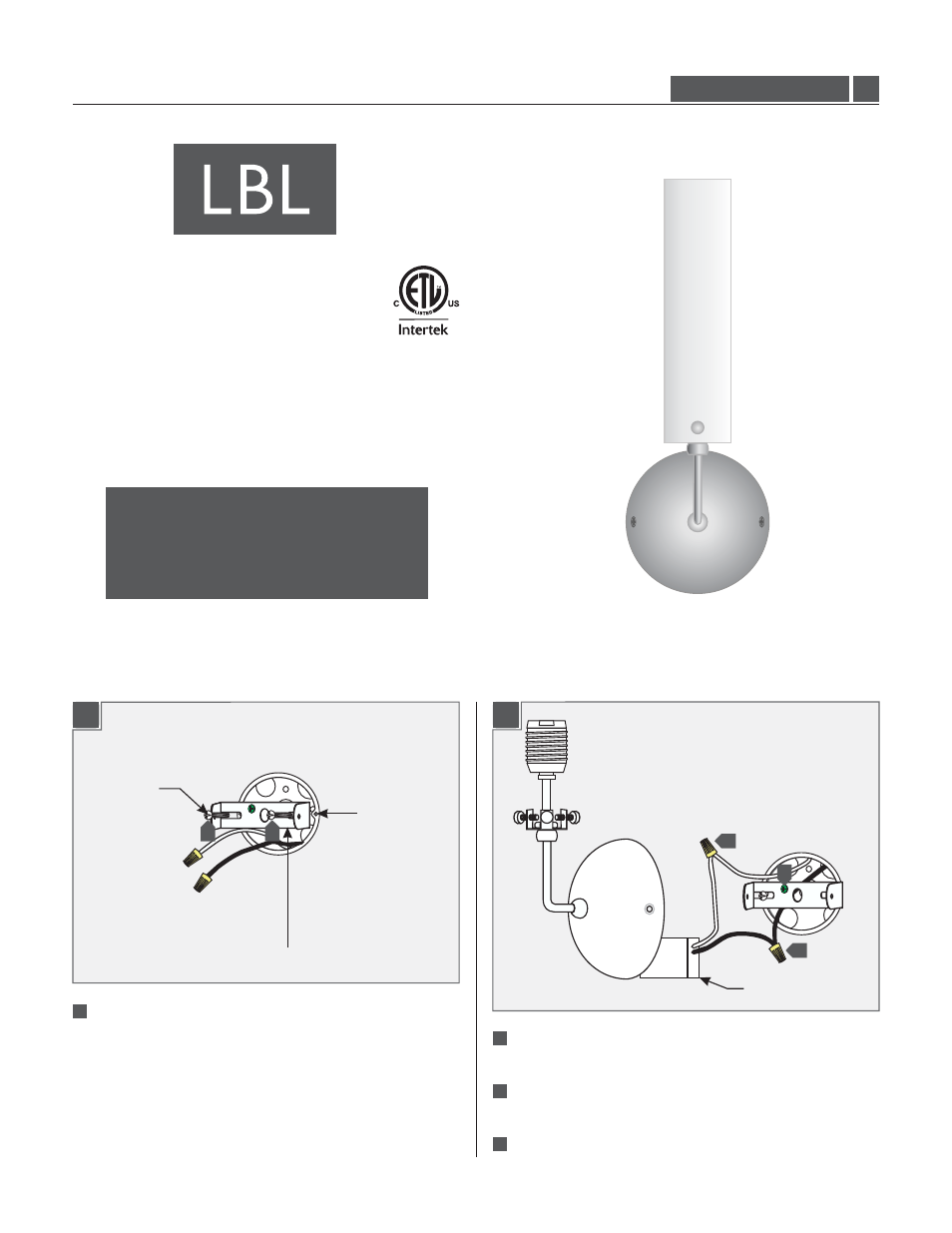

Install the Fixture
Mount the crossbar to the electrical box holes with the two
#8-32 screws provided.
ELECTRICAL
BOX HOLE
#8-32 SCREW
CROSSBAR
1
In accordance with local electrical codes, make sure that the
crossbar is grounded.
Connect the ballast white wire to the neutral power line wire
with a wire nut.
Connect the ballast black wire to the hot power line wire with
a wire nut.
BALLAST
1A
1B
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
