LBL Lighting Top W - Manual (Page 2)

1D
1C 2A
2

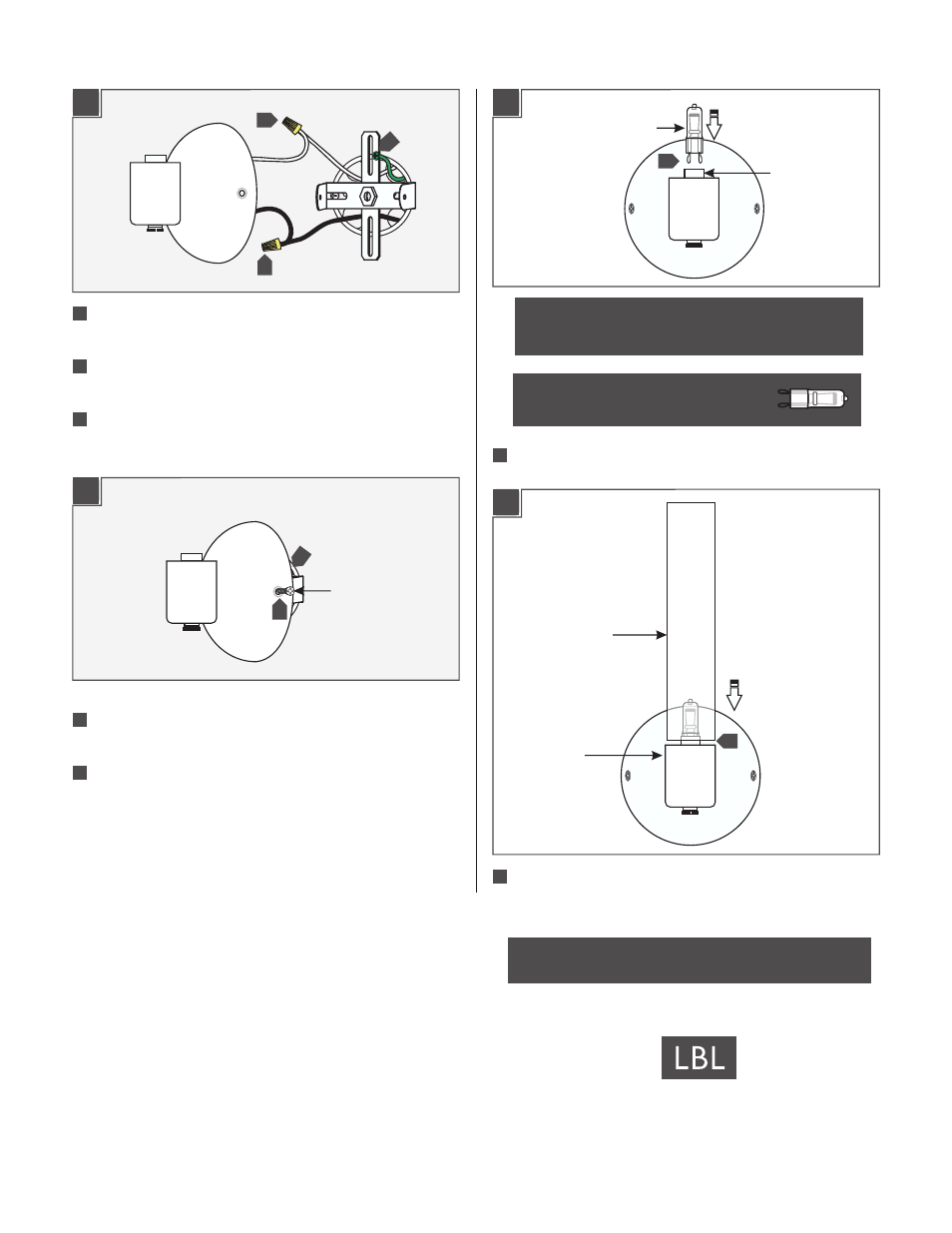

Connect the crossbar assembly to a suitable ground in
accordance with local electrical codes.
Connect the fixture white wire to the neutral power line wire
with a wire nut.
Connect the fixture black wire to the hot power line wire with
a wire nut.
Place all wires and wire nut connections properly inside the
electrical box.
Place the fixture canopy onto the crossbar assembly. Level the
fixture vertically; replace and tighten the two #8-32 Phillips
head screws.
#8-32 SCREW
Install the Lamp & Shade
LAMP
SOCKET
Place the glass shade into the socket housing.
SOCKET
HOUSING
GLASS SHADE
Push the lamp pins completely into the socket holes.
NOTE: Use only your fingers and a soft cloth to install
the lamp.
Use MAX 220 Volt, 40 Watt Type T4,
G9 Base, Bi-Pin Halogen Lamp.
