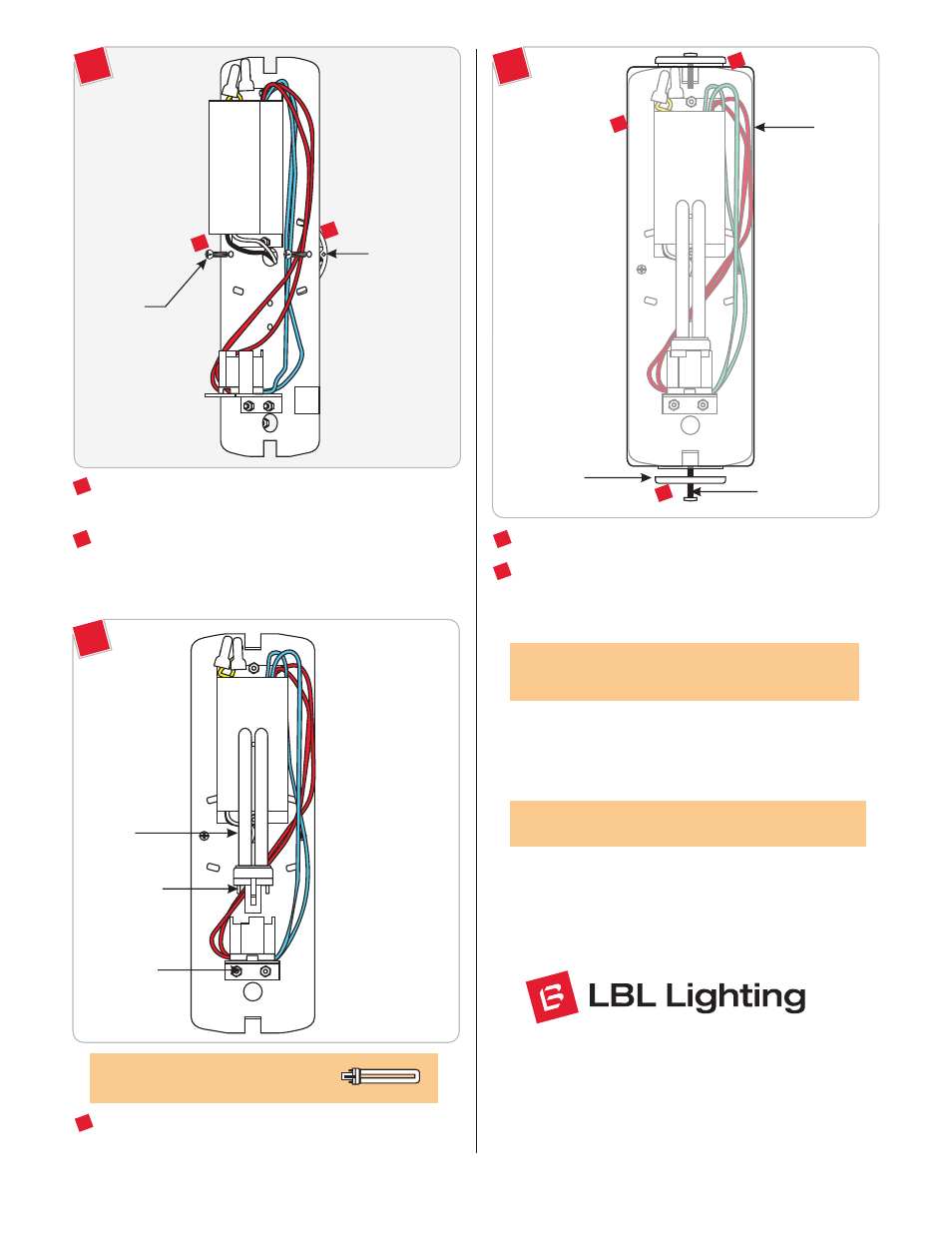

Place all wires and wire nut connections properly inside the
electrical box.
Align the mounting plate holes with electrical box holes and
tighten the two #8-32 screws to secure the fixture in place.
6
ELECTRICAL
BOX HOLE
7
#8-32
SCREW
2
Install the Lamp & Shade
LAMP
2A
SOCKET
1
Place the glass shade onto the mounting plate.
While supporting the glass shade in place replace the end caps
and thumb screws on top and bottom of the shade. Make sure
the thumb screws are tight to secure the glass shade in place.
2
2B
GLASS
SHADE
3
THUMB SCREW 3
END CAP
SAVE THESE INSTRUCTIONS!
6
7
7
7
Push the lamp pins completely into the socket holes.
LAMP PIN
Use MAX 18 Watt Type Quad Tube
G24q-2 Base Compact Fluorescent.
3
2
NOTE: Do not over tighten the thumb screws which may
cause the glass shade to break.
