Install lamp and shade – LBL Lighting Showtime WCF User Manual
Page 2
2

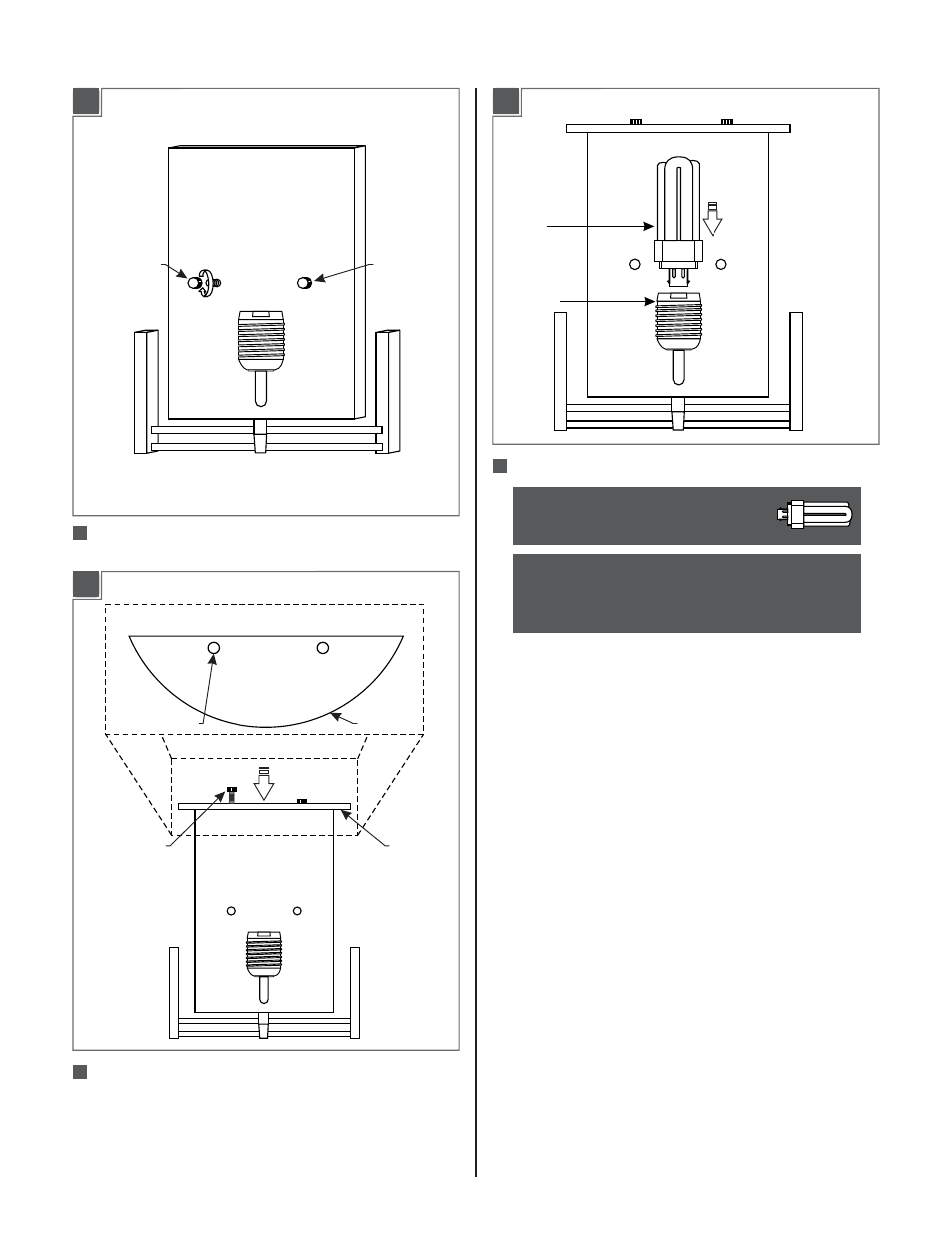

Mount the fixture onto the mounting plate and secure it
tightly with the two knurled nuts.
1C
6
Install Lamp and Shade
2A
1
Push the lamp base into the socket.
KNURLED NUT
KNURLED NUT
1D
Install the top shade by aligning it to holes on top of
the fixture and securing it with the two knurled thumb
screws.
TOP VIEW
THUMB SCREW
TOP SHADE
TOP SHADE
THUMB SCREW
7
SOCKET
LAMP
Use
GX24Q-2 Base
Triple Tube Compact Fluorescent Lamp.
MAX 18 Watt
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
