LBL Lighting Omni w/Cover Small CF - Manual (Page 3)

2B 2A
2
SHADE
SUPPORT ARM
SUPPORT ARM
ALLEN WRENCH

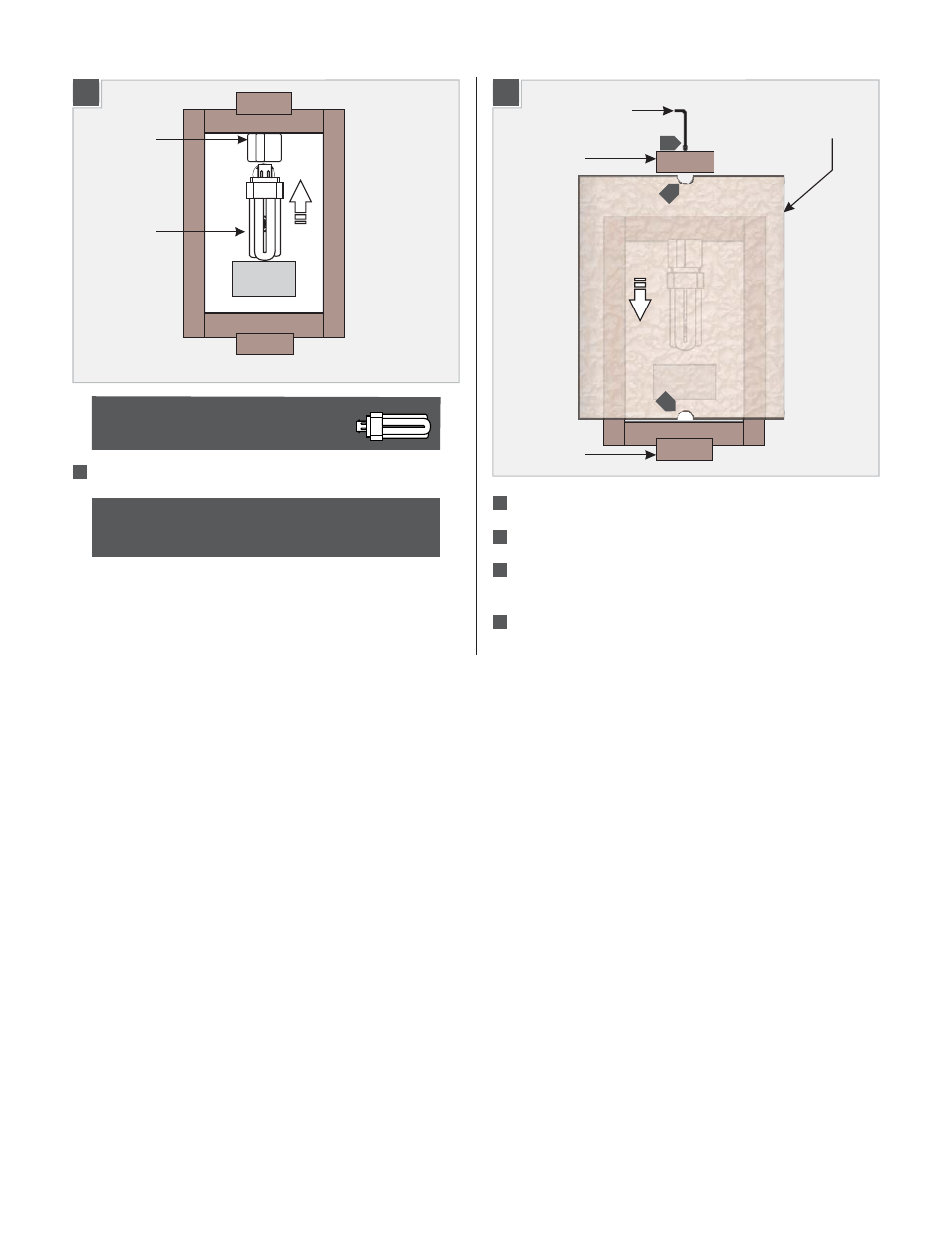

Use the Allen wrench to remove the upper shade support arm.
Place the shade into the slot in the lower shade support arm.
Line up the slot in the upper shade support arm with the top
of the shade.
Use the Allen wrench to attach the shade support arm to the
top of the fixture.
Install the Lamp and Shade
LAMP
SOCKET
3
NOTE: When replacing the lamp, push down on the tab
in the middle of the socket to release the lamp. 3
4
1
2
5
Push the lamp base into the socket.
5
4
3
Use 18 Watt GX24Q-2 Base MAX
Triple Tube Compact Fluorescent Lamp.
