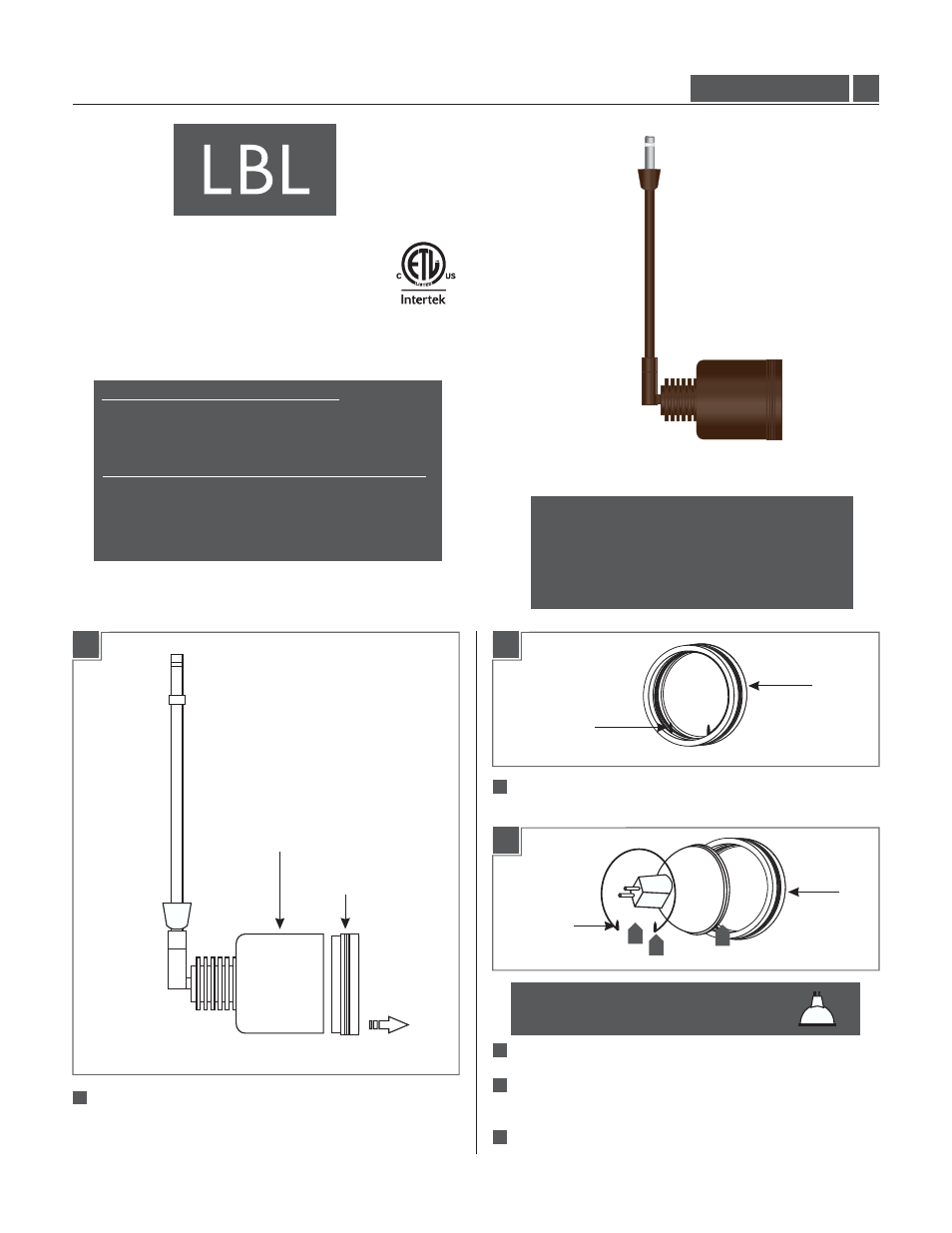

LBL Lighting Rev Swivel User Manual
Rev swivel, Install the lamp, Installation instructions for

Installation Instructions for
Rev Swivel
1.5
HE441_1A50FSJ
980FSJREVS
Install the Lamp
1
CAP
SOCKET HOUSING
Pull the cap out of socket housing.
CAP
SPRING END
Squeeze the spring ends and remove it from the cap.
Use
Watt MR16 Front Cover
MAX 50
Halogen Lamp.
CAP
SPRING END
Place the MR16 lamp into the cap.
Squeeze the spring ends and place it into the groove inside the
cap to hold the MR16 lamp in place.
Release the spring ends.
G
P
I
:
ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Fusion Jack™
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
1A
4
WARNING:
Risk of Fire. Hot Surface. Install the fixture
at least 6" (Inches) away from wall, curtains and combustible
materials. Maintain at least 9" (Inches) of clearance directly in
front of the fixture.
AVERTISSEMENT: Risque du feu.
Surface Chaude.
Installez le montage au moins 6" (Pouces), 153 mm, loin du
mur, des rideaux et des matériaux combustibles. Maintenez au
moins 9" (Pouces), 230 mm, de dégagement directement
devant le montage.
1
1B
3
2
5
1C
4
5
3
