LBL Lighting Gelato P User Manual
Gelato, Adjust the fixture height

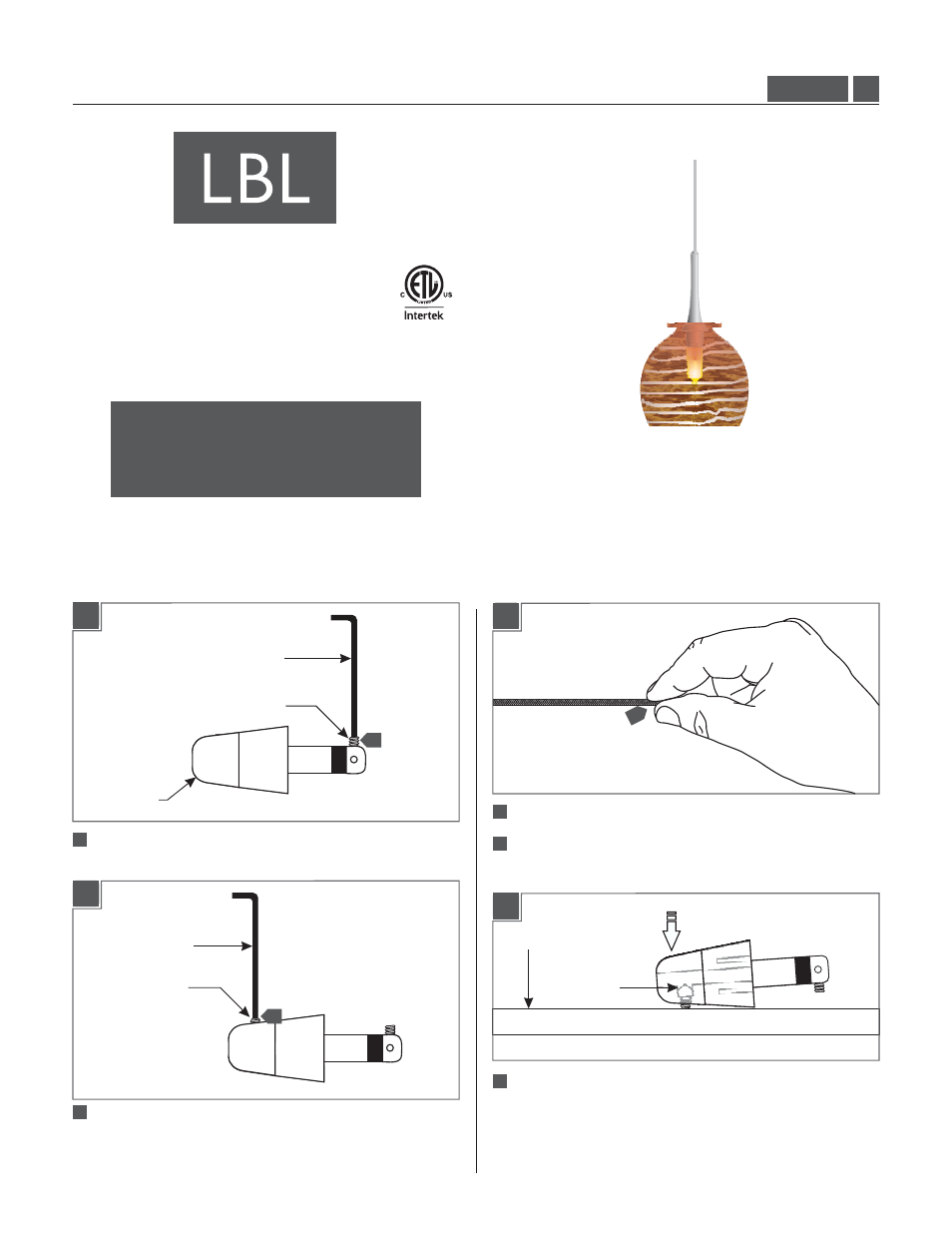

Adjust the Fixture Height
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Fusion Jack
™
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
SET SCREW
ALLEN WRENCH
2
1A
1B
2
1
1C
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
SURFACE
Cut the coaxial cable to the desired length.
Gently twist the end of the coaxial cable between thumb and
forefinger.
4
PLATE
3
4
1D
5
