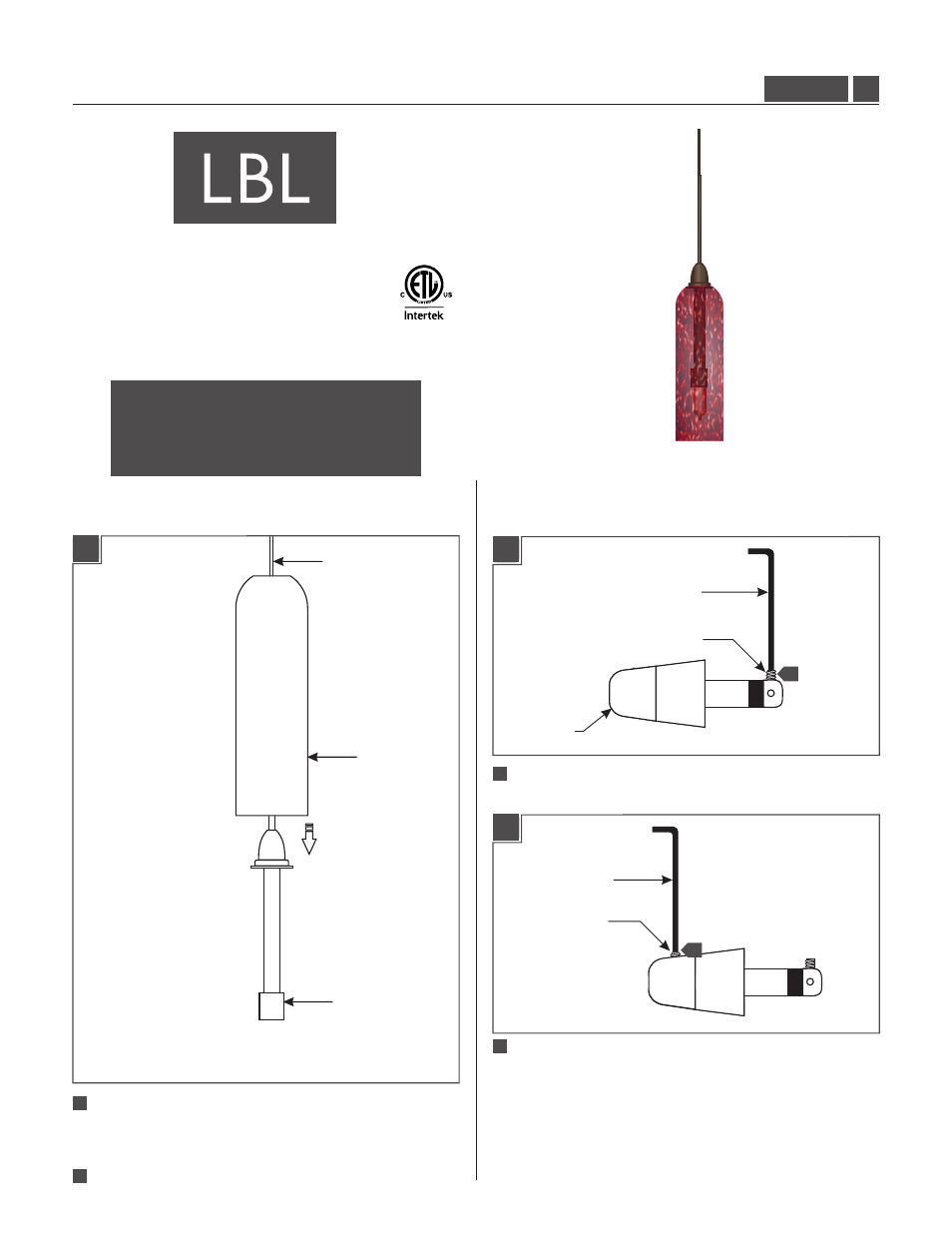

Installation Instructions for
Stogie I
1
GLASS SHADE
SOCKET ASSEMBLY
FIXTURE COAXIAL
CABLE
GENERAL PRODUCT INFORMATION:
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Fusion Jack™
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
1A
Feed the fixture coaxial cable through the glass shade. Slide the
glass shade down the cord and rest it onto the socket
assembly.
Cut the coaxial cable to the desired length.
1
2
SET SCREW
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
ALLEN WRENCH
3
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
SET SCREW
ALLEN WRENCH
4
1B
1C
4
3
CONNECTOR
Adjust the Fixture Height
1.3
HS235_
1.5
HS269_
980FSJSTGIBP
