3

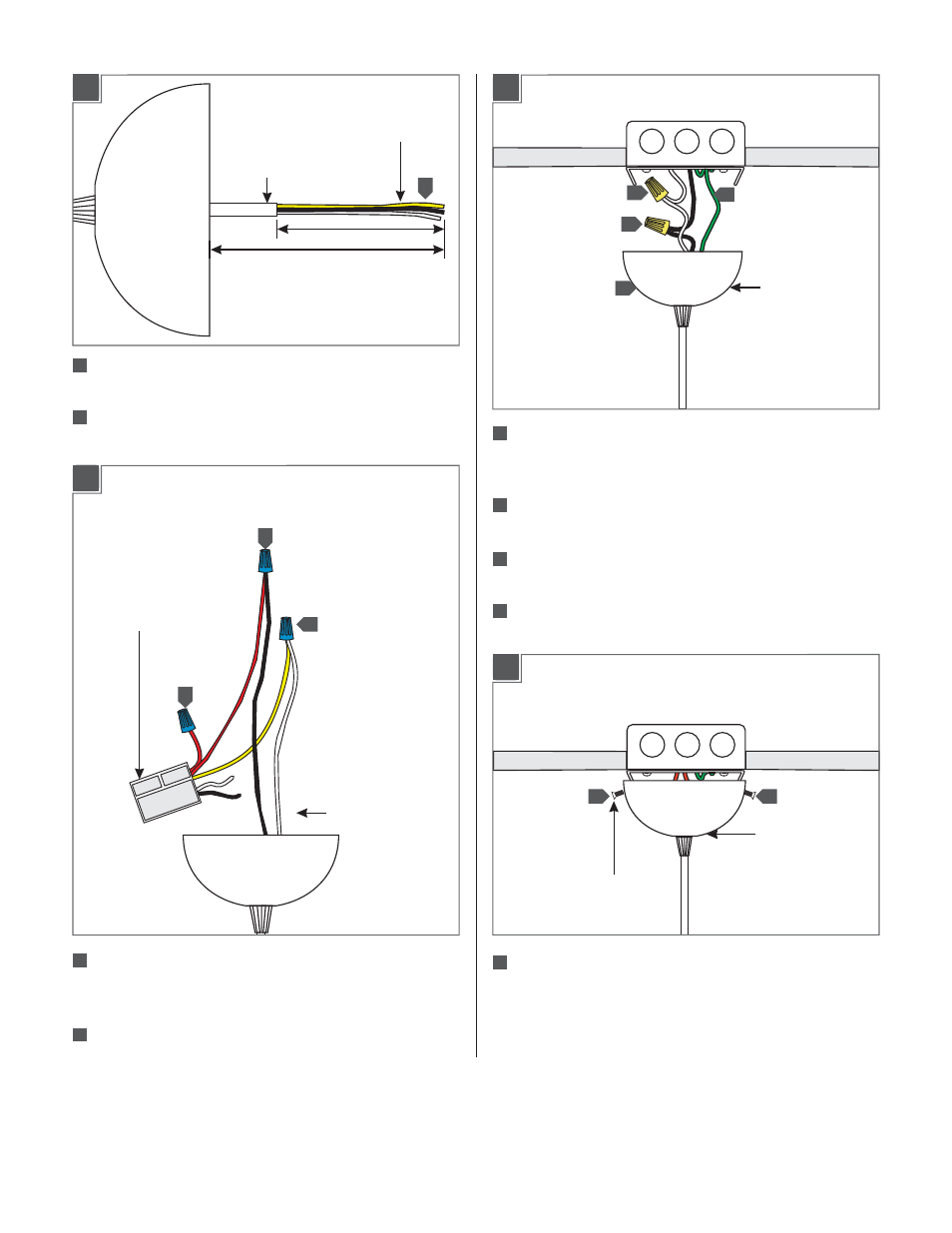

Connect the green wire to the ground screw and make sure
that the crossbar is grounded in accordance with local
electrical codes.
Connect the white ballast wire to the neutral power wire with
a wire nut.
Connect the black ballast wire to the hot power wire with a
wire nut.
Place the ballast inside of the dome canopy.
Line up the dome canopy holes with the crossbar holes. Install
and tighten the flush-head screws to secure the dome canopy
in place.
FLAT HEAD SCREW
DOME
CANOPY
Leave 6" of the cord behind the canopy for power connections
and cut the excess cord.
From the end of the cord, strip 4" of the outer insulation.
DOME CANOPY
Connect one of the red ballast wires to one of the fixture
wires (either one) with a wire nut. Cap the remaining red
ballast wire with a wire nut.
Connect the yellow ballast wire to the other fixture wire with
a wire nut.
BALLAST
FIXTURE WIRES
4"
OUTER
INSULATION
INNER
WIRES
6”
1G
10
13
15
14
1I
1H
11
12
16
17
1J
18
14
16
11
13
12
18 18
12
15
17
