G
P
I
:
ENERAL
RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Fusion Jack
™
Installation Instructions for
1.3
HS228_
980FSJSAMP
1
Use
Watt,Type Xelogen
MAX
50
(Xenon) Bi-Pin Lamp.
Push the lamp pins completely into the socket holes.
NOTE:
To reduce the risk of a burn or electric shock
during relamping, disconnect the power to the fixture.
NOTE:
Use only your fingers and soft cloth to replace
the lamp.
SOCKET
ASSEMBLY
BRACKET
LAMP
GLASS SHADE
Slide the glass shade over the socket assembly bracket.
Align the glass shade holes with the socket assembly bracket
holes and secure it in place by tightening the three provided
pin screws.
PIN SCREW

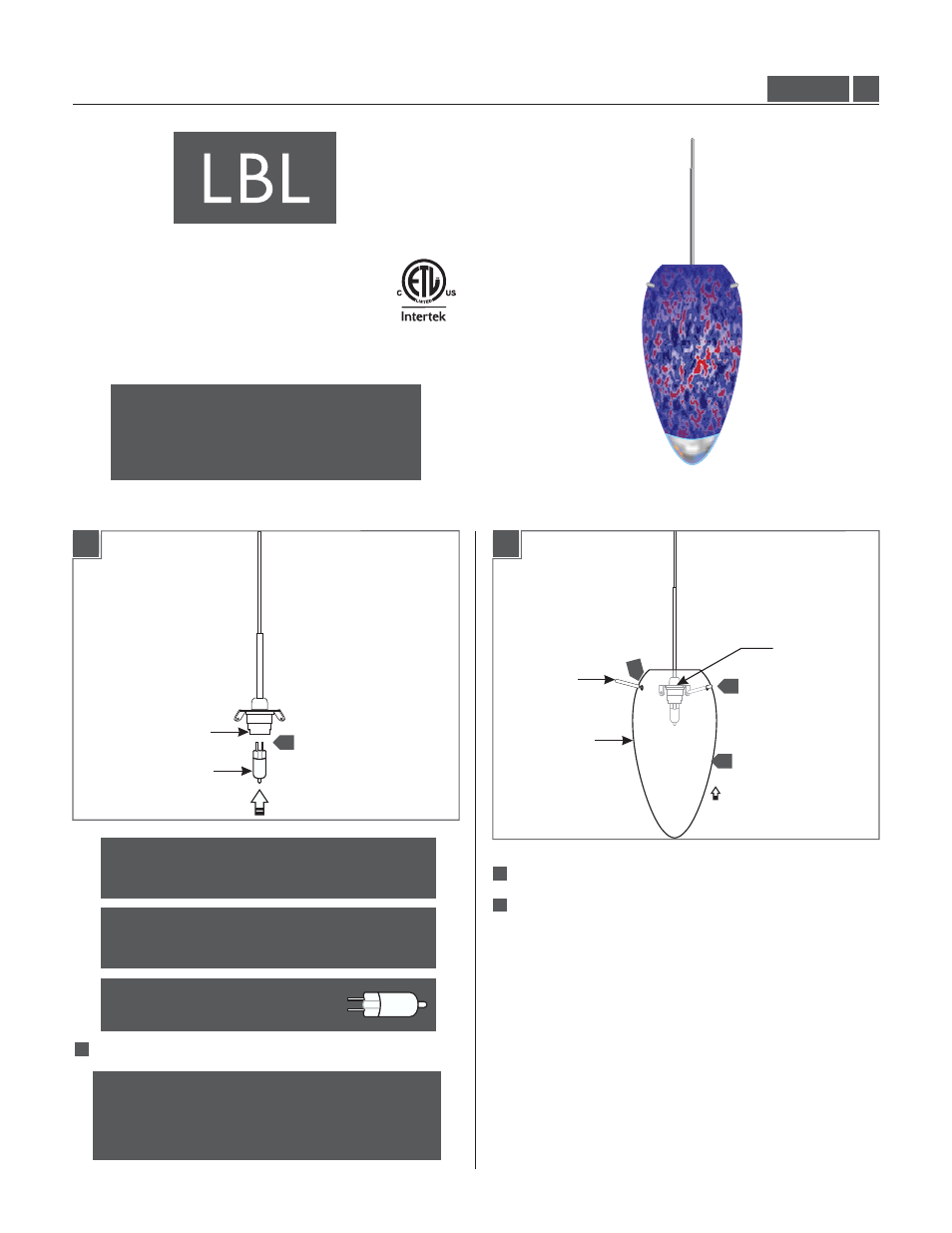

Install the Lamp & Shade
SOCKET
WARNING: RISK OF FIRE
Never replace a Xenon (Xelogen) lamp with a regular
Halogen lamp.A regular Halogen lamp requires a protective
glass shield.
1A
1B
1
2
2
2
3
1
2
3
3
Sam
