Installation Instructions for
Paige Pendant
980FSJPAIG
G P I : ENERAL RODUCT NFORMATION
This product is ETL listed and suitable only for indoor dry locations
and approved for use at any height above the finished floor.
Fusion Jack
™
1.0
HS795_

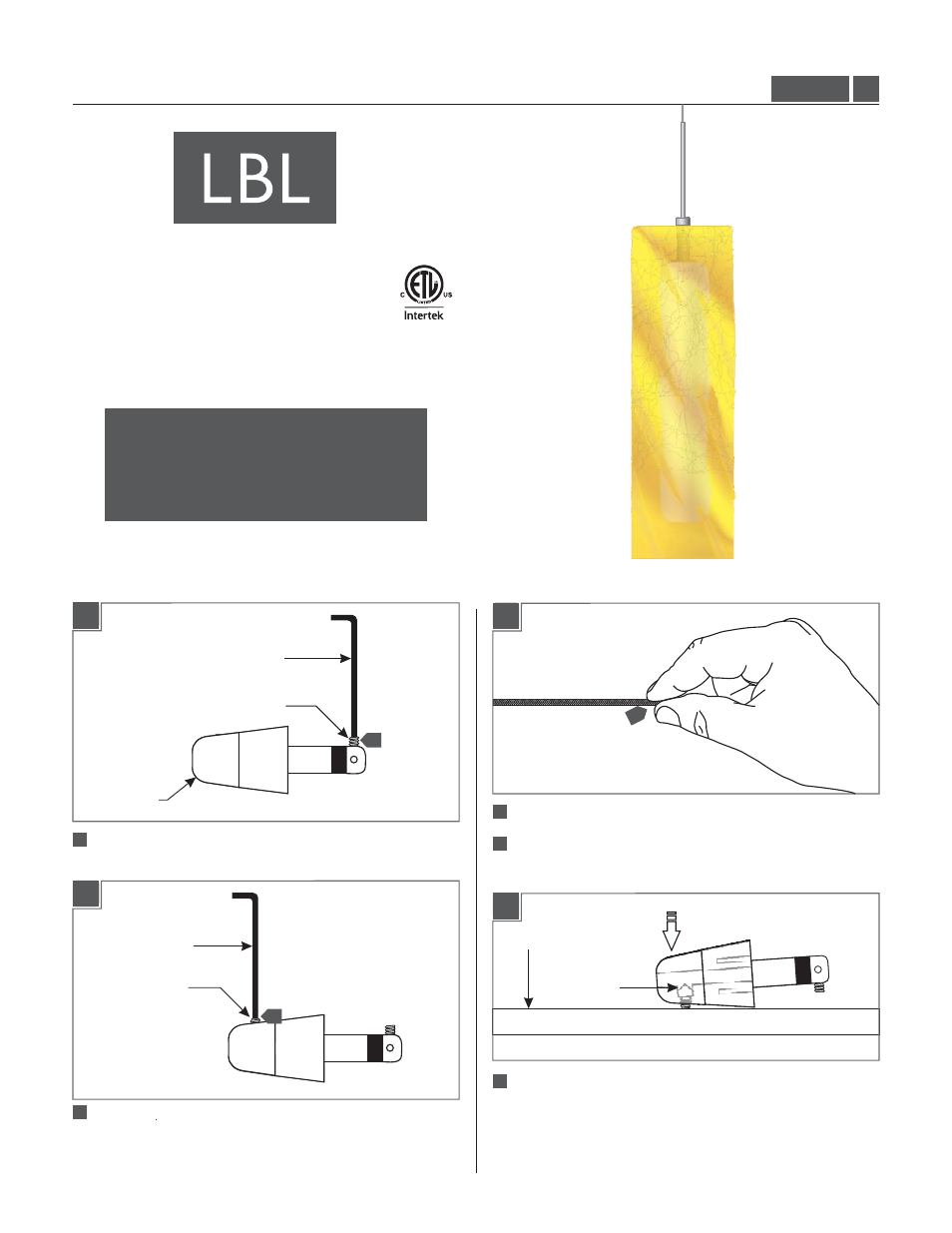

Adjust the Fixture Height
1
Back out (do not remove) the set screw on tip of the
connector with the provided Allen wrench.
Back out (do not remove) the set screw on the conical
connector with the provided Allen wrench.
SET SCREW
ALLEN WRENCH
2
1A
1B
2
1
1C
Tap the conical connector on a hard surface with the set screw
facing down, so the plate inside drops into place.
SURFACE
Cut the coaxial cable to the desired length.
Gently twist the end of the coaxial cable between thumb and
forefinger.
4
PLATE
3
4
1D
5
SET SCREW
ALLEN WRENCH
1
CONNECTOR
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
