1e 1d 1f – LBL Lighting Perf SP User Manual
Page 2
2

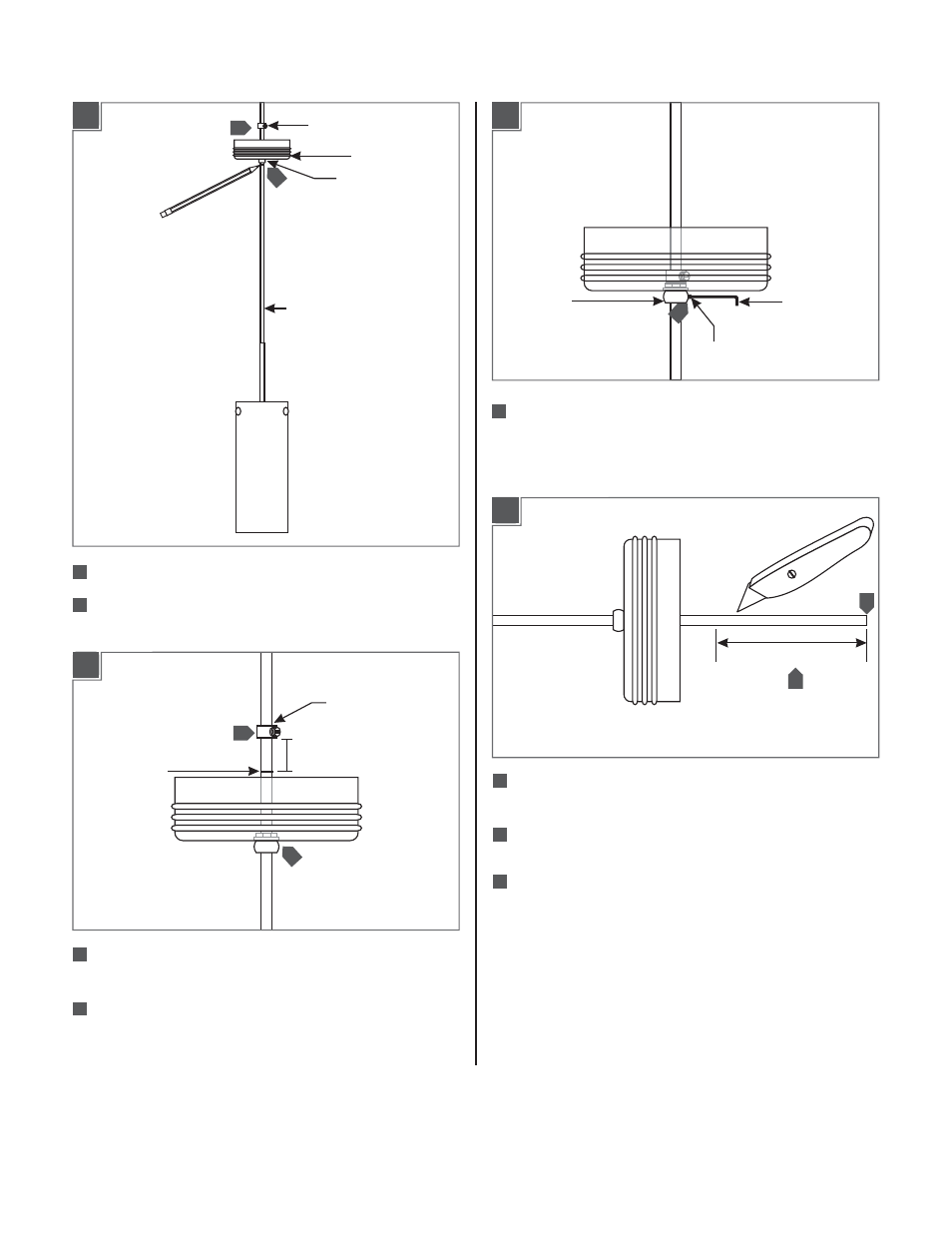

Feed the cord into the canopy and plastic strain relief.
Adjust the fixture height and mark the cord below the canopy
bushing.
PLASTIC STRAIN RELIEF
CANOPY
CHORD
BUSHING
1"
Feed the cord inside the canopy so that the marked line is
exposed behind the canopy.
Hold the plastic strain relief 1" above the marked line and
tighten the set screw.
Slide the canopy up against the plastic strain relief and tighten
the M4 set screw snugly on the cap with 2 MM Allen wrench.
CAP
M4 SET
SCREW
2 MM ALLEN
WRENCH
MARKED LINE
PLASTIC STRAIN
RELIEF
4"
Leave 6" of the cord behind the canopy for power connections
and cut the excess cord.
From the end of the cord remove 4" of the cord insulation.
Strip 1/4" of the insulation from the wire ends.
1C
3
1E
1D
1F
6
5
7
4
9
8
10
3
4
6
5
7
9
10
