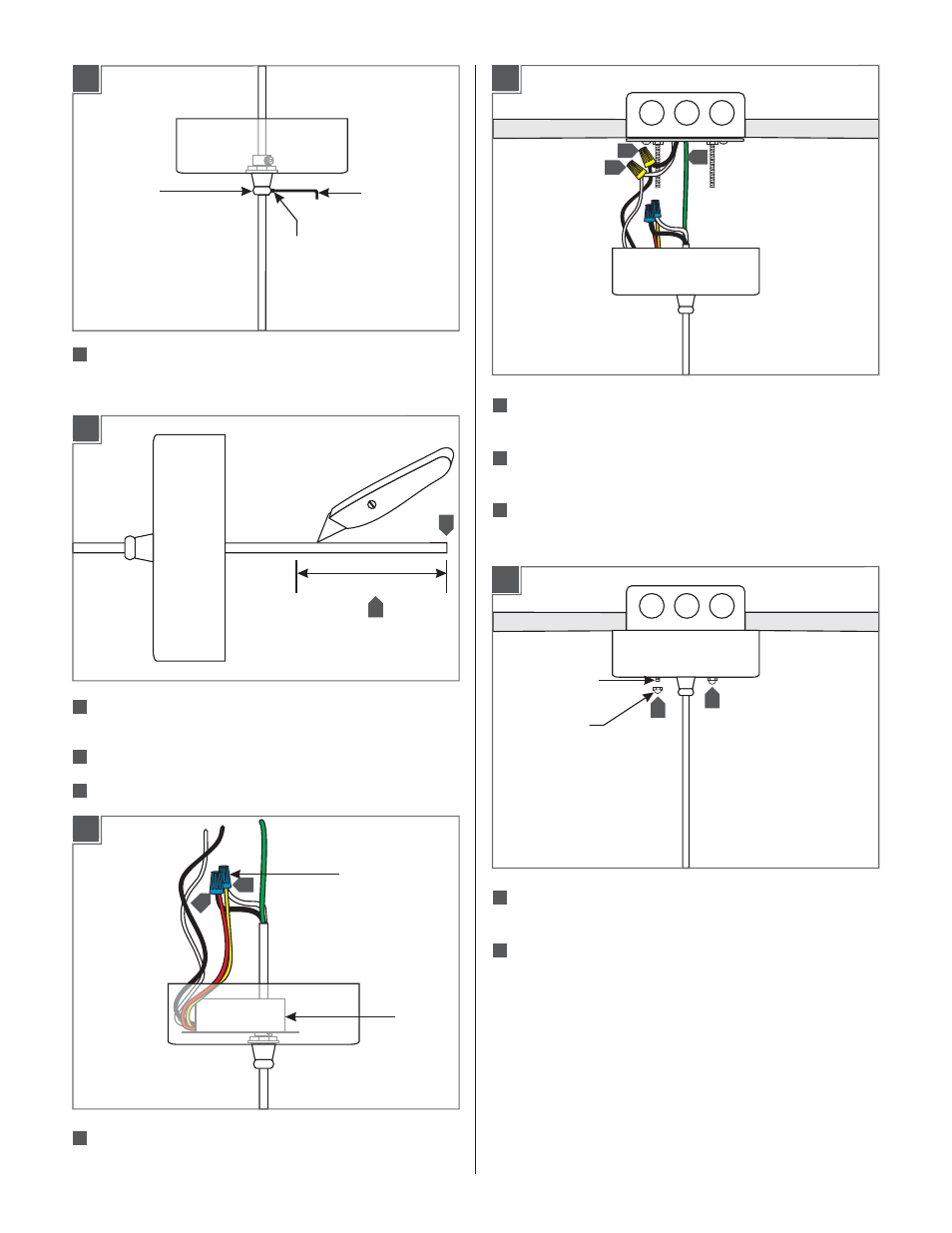

Slide the canopy up against the plastic strain relief and tighten
the M4 set screw snugly on the cap with 2 MM Allen wrench.
CAP
M4 SET
SCREW
2 MM ALLEN
WRENCH
4"
BALLAST
WIRE NUT
Leave 6" of the cord behind the canopy for power connections
and cut the excess cord.
From the end of the cord remove 4" of the cord insulation.
Strip 1/4" of the insulation from the wire ends.
Connect one ballast wire to each fixture wire (except ground
wire) with a wire nut.
11
12
13
1H
14
1I
13
12
14
14
1G
10
CAP NUTS
THREADED ROD
In accordance with local electrical codes, make sure that the
crossbar and fixture ground wire are grounded.
Connect the white ballast wire to the neutral power line wire
with a wire nut.
Connect the black ballast wire to the hot power line wire with
a wire nut.
Place all wires and wire nut connections properly inside the
canopy housing.
Slide the canopy onto the threaded rods and secure it in place
by tightening the cap nuts completely to the threaded rods.
