4A

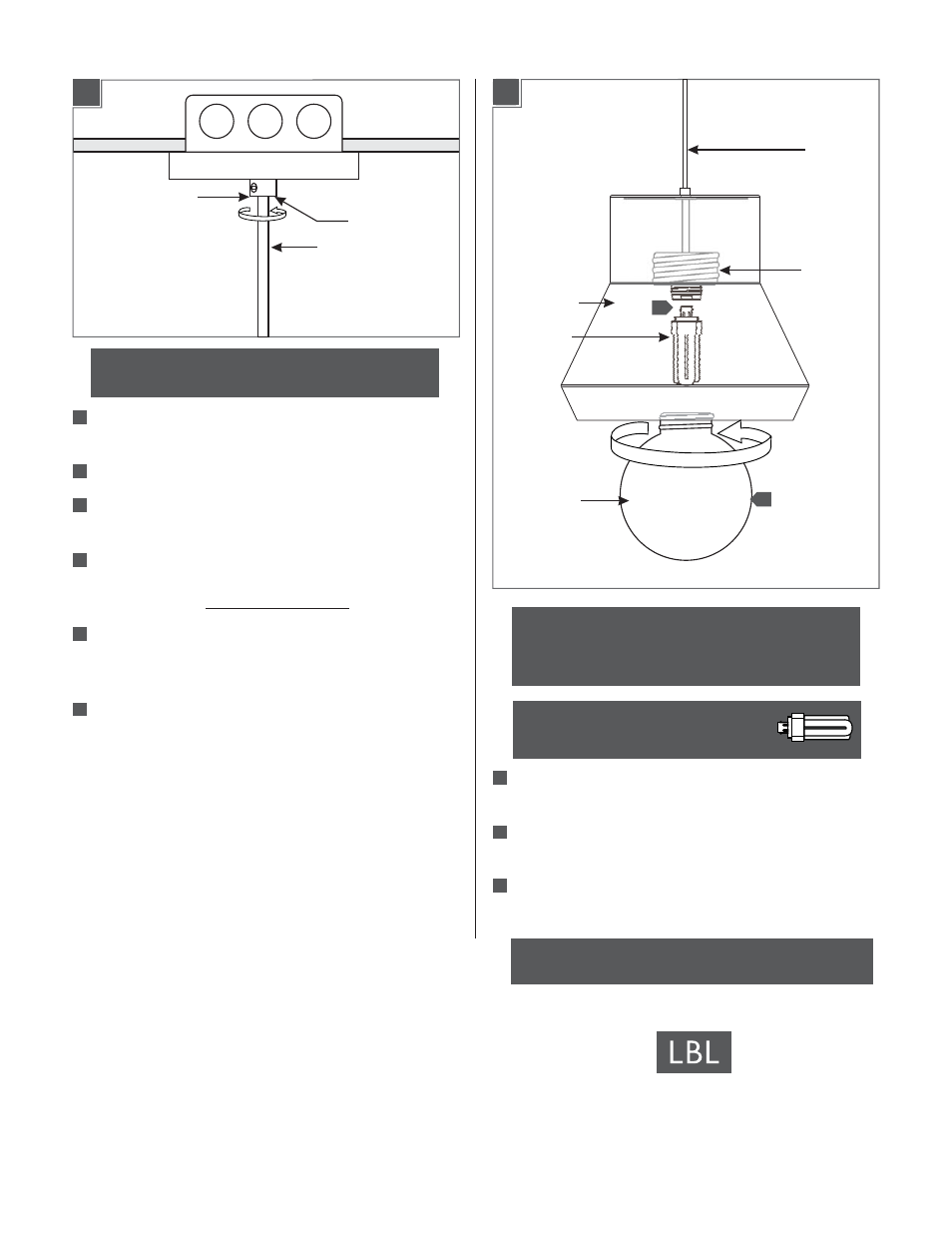

Install the Lamp and Diffuser
DIFFUSER
CORD
SHADE
1
2
SOCKET
ASSEMBLY
2
LAMP
3
Reach inside the shade and push the lamp base into the
socket.
Install the diffuser to the socket assembly by screwing it
in.
To re-lamp, reverse this section.
1
CAUTION: To reduce the risk of a burn or electric
shock during relamping, disconnect the power to
the fixture.
Use GX24Q-3 Base MAX 32 Watt
Triple Tube Compact Fluorescent Lamp.
3F
17
18
19
20
21
22
Place the ballast, all wires, wire nut connections, and the
secondary strain relief properly inside the electrical box.
Loosen the set screw on the primary strain relief.
Align the canopy center hole with the mounting plate
center hole.
Slide the canopy up against the ceiling and secure it in
place by tightening the primary strain relief into the
mounting plate. Do not turn the cord.
Push the cord into the canopy and line up the marked
point on the cord with bottom of the primary strain
relief.
Tighten the plastic set screw to secure the cord.
NOTE: It is recommended that one person hold the
fixture while the electrician finishes the installation.
SET SCREW
CORD
STRAIN RELIEF
