6

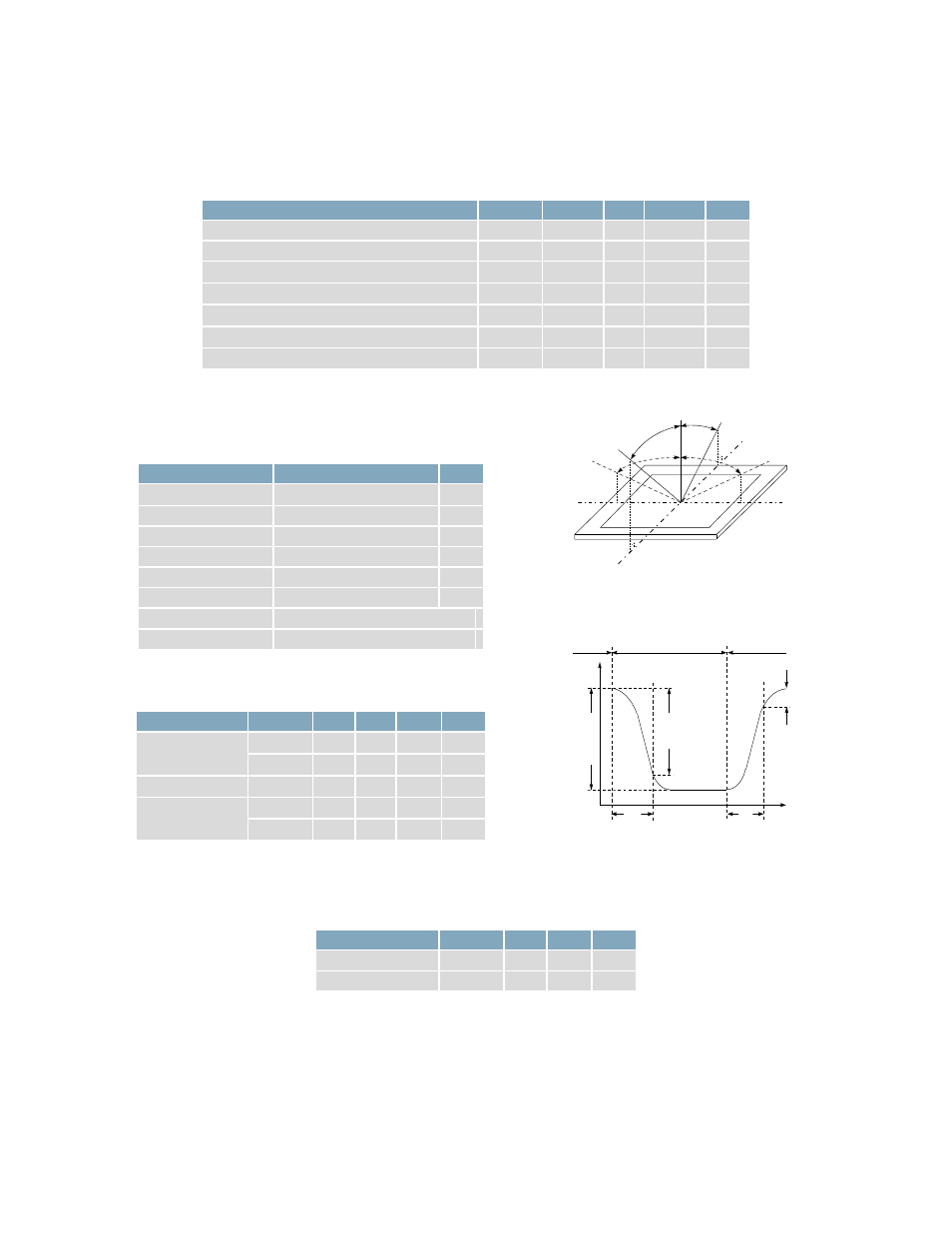

Specifications
Electrical
Table 6: Electrical Characteristics
Item Symbol Min Typ Max Unit
Supply Voltage For Logic V
DD
4.5 5.0 5.5 V
Supply Voltage For LCD (Contrast) V
0
-0.5 0.2 0.9 V
Input High Voltage V
IH
0.8 V
DD
－ V
DD
V
Input Low Voltage V
IL
V
SS
－ 0.2 V
DD
V
Supply Current (V
DD
=5V) I
DD
－ 0.5 1.5 mA
Supply Voltage of White Backlight (2 Die) V
LED
2.9 3.1 3.3 V
Supply Current of White Backlight (2 Die) I
LED
0 － 50 mA
Optical
Table 7: Display Characteristics
Item Dimension Unit
Number of Pixels 122 Columns x 32 Rows －
Module dimension 65.8 x 27.0 x 12.0 mm
View area 60.2 x 18.0 mm
Active area 53.64 x 14.04 mm
Dot size 0.40 x 0.40 mm
Dot pitch 0.44 x 0.44 mm
Duty 1/32
View direction 12 o’clock
Figure 4: Viewing Angle Definition
Figure 5: Display Response Time
Table 8: Viewing Characteristics
Item Symbol Min Typ Max Unit
View Angle
(V)θ -40 － 20 deg
(H)φ -50 － 50 deg
Contrast Ratio CR 3 6 － －
Response Time
T rise － 150 200 ms
T fall － 150 200 ms
Environmental
Table 9: Environmental Specifications
Item Symbol Min Max Unit
Operating Temp. Top -20 70 ℃
Storage Temp. Tstr -30 80 ℃
Note: Maximum 90% non-condensing humidity.
θf
φ= 180°
φ= 90°
φ= 0°
φ= 270°
θb
θr
θl
Intensity
90％
100％
Tr
10％
Tf
Non-selected
Conition
Non-selected
Conition
Selected Conition
[positive type]
